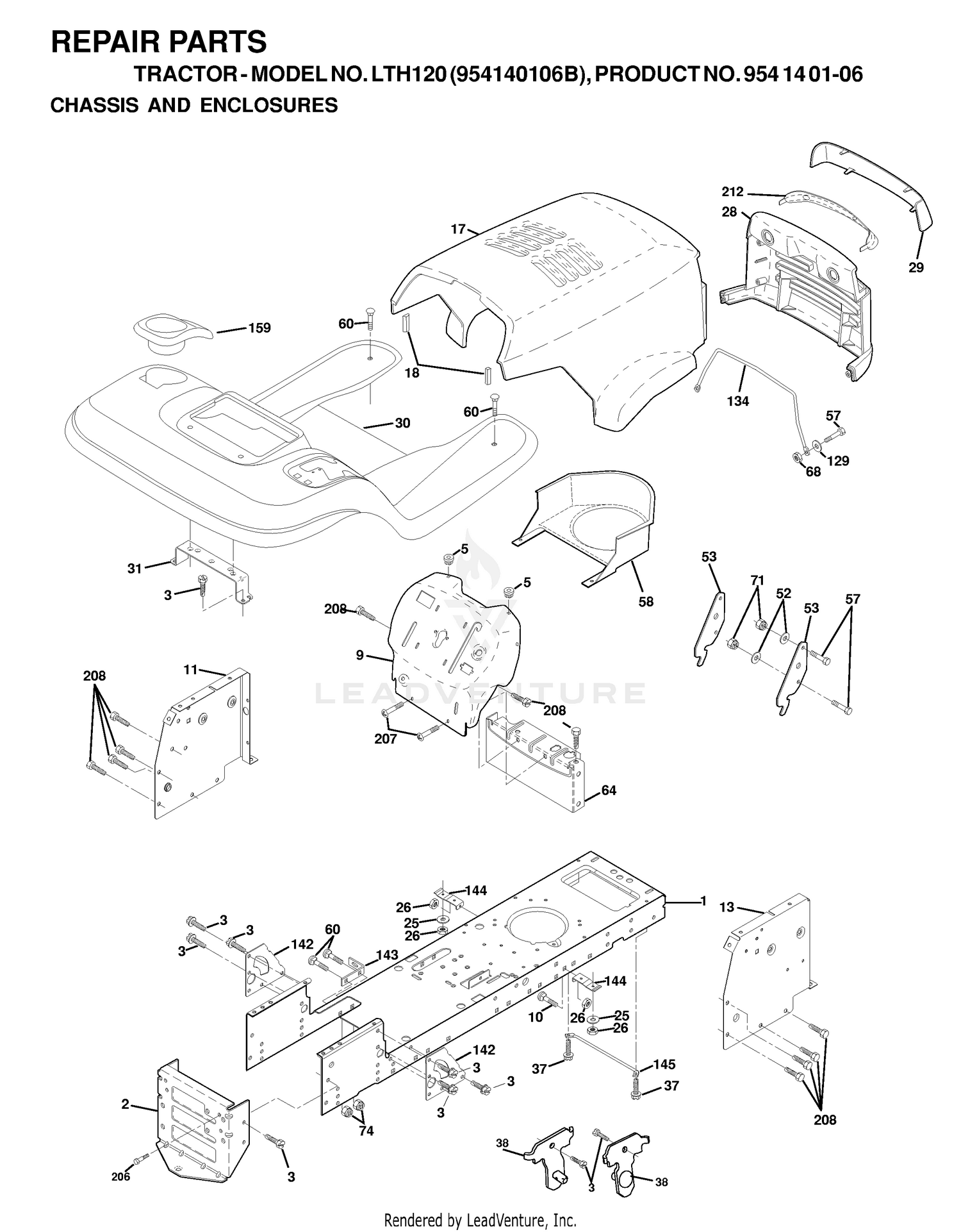

| Ref | Part Number | Description |
|---|
| 1 |
100-5797-03 |
BRACKET-HOC, RH Price: $30.11 |
| 2 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
532176554 |
DRAWBAR, 12GA This part replaces 532169061. Price: $37.99 |
| 3 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
104-1052-03 |
BRACKET-HOC, FRONT Price: $29.29 |
| 5 |
100-5799 |
SHIM-HOC, .060 INCH Price: $5.86 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
3231-9 |
SCREW-CARR Price: $1.18 |
| 7 |
104-4641 |
SHIM-HOC, .030 INCH Price: $2.34 |
| 8 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 9 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 9 |
532168337 |
DASH SILKSCR. This part replaces 532171708. Price: $20.99 |
| 10 |
121-3575 |
SPACER-HOC Price: $4.10 |
| 11 |
104-4624-03 |
BRACKET-HOC, LH Price: $30.11 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
136-2921 |
HOC PLATE ASM Price: $6.80 |
| 13 |
532173025 |
PANEL DASH RH Price: $9.92 |
| 17 |
532156051 |
HOOD - LT/YT This part replaces 532165378. Price: $549.99 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532165379. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA This part replaces 532165380. Price: $24.99 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR This part replaces 532169834. Price: $9.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 68 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 71 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 134 |
532160219 |
ROD SUPPORT HOOD LT/PL HUS. Price: $7.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532165867. Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST This part replaces 532154207. Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 159 |
532155123 |
CUPHOLDER, BLK This part replaces 532166508. Price: $24.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 212 |
532156195 |
INSERT LENS REFLECTOR Price: $6.99 |
