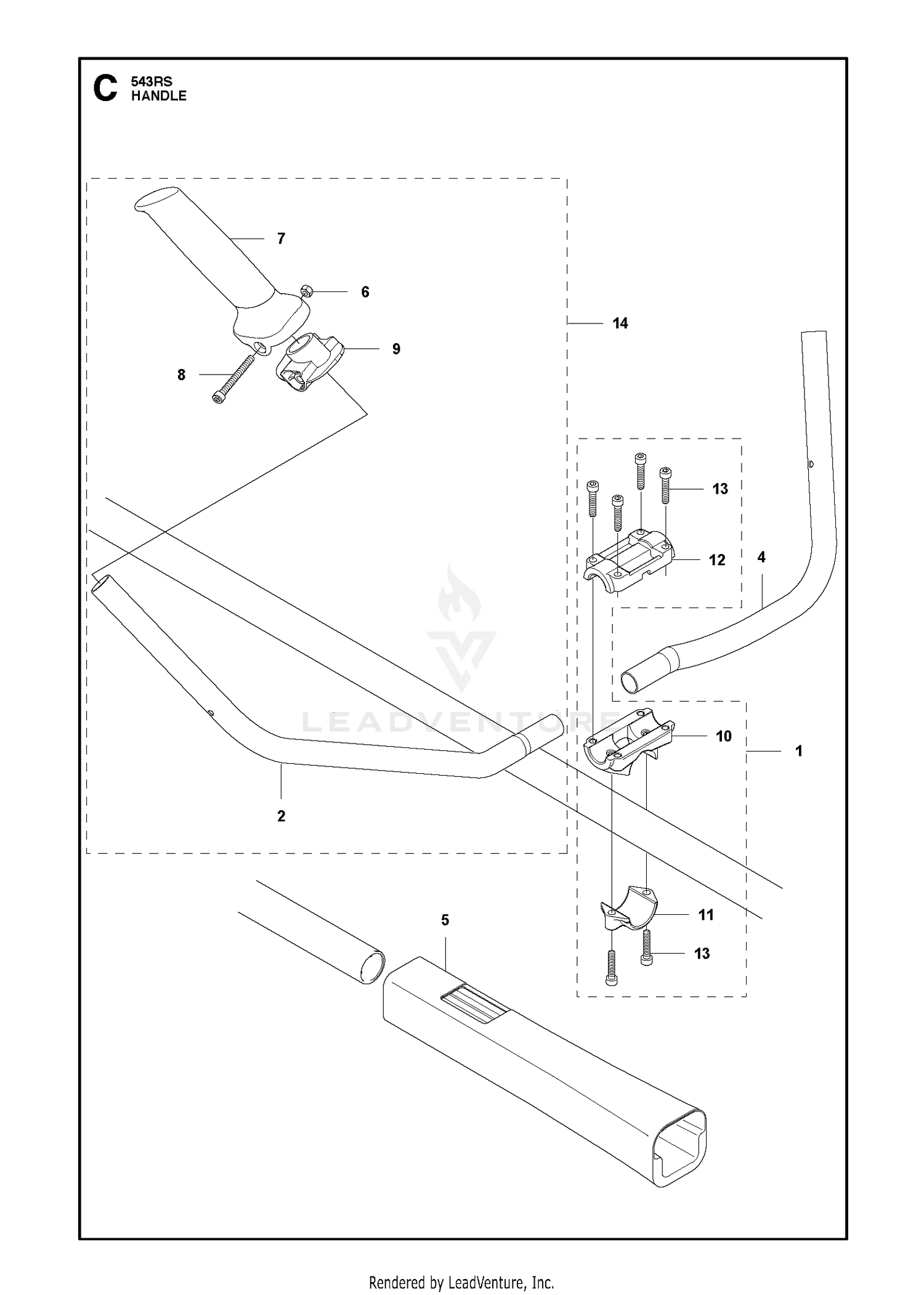

HANDLE
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 577983001 | HANDLE BRACKET ASSY 243R Price: $15.99 |
| 1 | 68-604-3571-01 | MOUNT-SPRING Price: $17.16 |
| 2 | 528817501 | HANDLE(L) Price: $24.99 |
| 2 | 95-0082-01 | ARM-MAIN, RH Price: $116.62 |
| 3 | 95-0081-01 | ARM-MAIN, LH Price: $116.62 |
| 4 | 105-7893 | BRACKET-SPRING, INNER Price: $57.68 |
| 4 | 528817401 | HANDLE(R) Price: $14.99 |
| 5 | 105-7894 | BRACKET-SPRING, OUTTER Price: $80.80 |
| 5 | 521538701 | PROTECTOR (RPLS 405017110) Price: $8.99 |
| 6 | 01-261-0190 | SPRING Price: $229.23 |
| 6 | 731231401 | NUT This part replaces 575960601. Price: $1.99 |
| 7 | 327-6 | SCREW-HH Price: $12.99 |
| 7 | 537172802 | HANDLE Price: $6.99 |
| 8 | 510909401 | BOLT Price: $1.99 |
| 8 | 68-604-3481 | WASHER Price: $4.82 |
| 9 | 537172901 | BRACKET Price: $4.99 |
| 9 | 68-604-3151 | WASHER-PIVOT Price: $3.59 |
| 10 | 01-125-0050 | BUSHING Price: $16.49 |
| 10 | 505294701 | BRACKET Z354314112 Price: $3.03 |
| 11 | 3256-7 | WASHER-FLAT Price: $0.75 |
| 11 | 505294801 | CAP-L Z354314121 Price: $2.67 |
| 12 | 3253-8 | WASHER-LOCK Price: $0.47 |
| 13 | 3218-6 | NUT-JAM Price: $0.61 |
| 13 | 512845701 | BOLT TORX Price: $2.99 |
| 14 | 01-158-0310 | BOLT-SHOULDER, SOCKET HEAD Price: $7.80 |
| 14 | 528817801 | HANDLE(L)-A Price: $27.99 |
| 15 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 16 | 13-404-0221 | WASHER-PIVOT Price: $4.14 |
| 17 | 68-604-3491 | WASHER Price: $3.32 |
| 18 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 19 | 01-168-2018 | BUSHING Price: $1.76 |
| 20 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 21 | 106-0289 | BEARING-FLANGE Price: $138.00 |
| 22 | 323-8 | SCREW-HH Price: $1.20 |
| 23 | 68-604-3181 | SHAFT-AERATOR Price: $329.15 |
| 24 | 140-6430 | AERATOR WHEEL ASSEMBLY This part replaces 44-004-0262. Price: $350.87 |
| 26 | 68-604-3421 | SPACER-CENTER Price: $28.26 |
| 27 | 68-604-3451 | SPACER-INSIDE Price: $7.92 |
| 28 | 68-604-3431 | SPACER-END Price: $8.12 |
| 29 | 3256-8 | WASHER-FLAT Price: $1.09 |
| 30 | 3218-7 | NUT-JAM Price: $3.86 |
| 31 | 01-168-2014 | BUSHING Price: $1.83 |
| 32 | 01-168-1614 | BUSHING Price: $0.82 |
| 33 | 68-604-3171-01 | ARM-MAIN, END Price: $146.74 |
| 34 | 327-7 | SCREW-HH Price: $5.69 |
| 35 | 3217-11 | NUT-HEX Price: $0.95 |
| 36 | 01-168-2010 | BUSHING Price: $2.51 |
| 37 | 3217-12 | NUT-HEX Price: $3.12 |
| 38 | 328-2 | SCREW-HH Price: $6.51 |
| 39 | 3253-9 | WASHER-LOCK Price: $1.02 |
| 40 | 67-1300 | DECAL Price: $29.99 |
