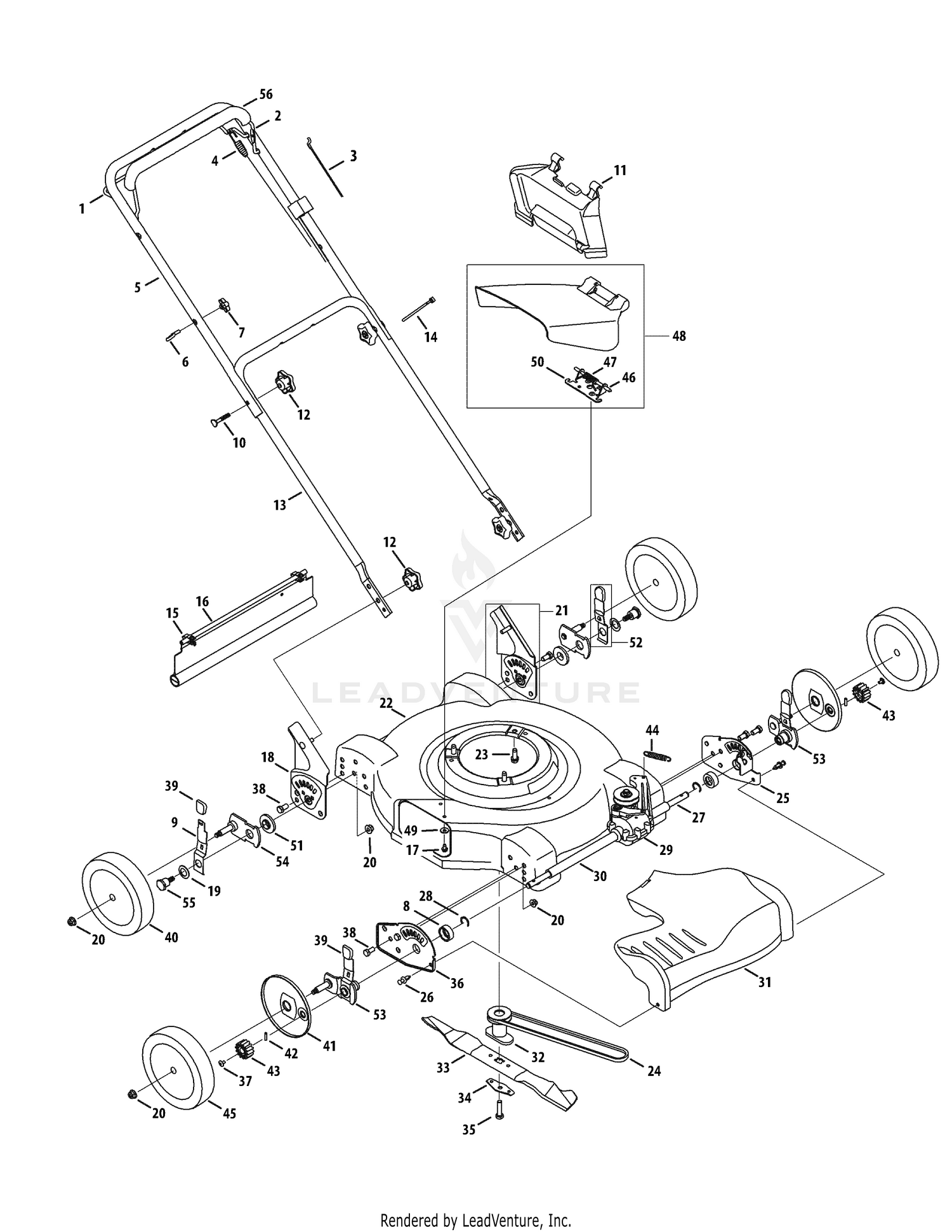

| Ref | Part Number | Description |
|---|
| 1 |
747-1214 |
Drive Control Price: $20.18 |
| 2 |
747-1161A-0637 |
Blade Control Price: $11.81 |
| 3 |
946-1113A |
Control Cable (brake) This part replaces 746-1113. Price: $18.03 |
| 4 |
946-04204 |
Drive Control Cable This part replaces 746-04204. Price: $39.70 |
| 5 |
749-1092A-0637 |
Upper Handle Price: $42.79 |
| 6 |
710-1205 |
Eye Bolt Price: $3.53 |
| 7 |
720-0279 |
Wing Nut, 1/4-20 Price: $3.93 |
| 8 |
748-0390 |
Bearing Support Spacer Price: $4.89 |
| 9 |
732-1026 |
Spring Lever Price: $5.77 |
| 10 |
710-1174 |
Carriage Bolt, 5/16-18 x 2.0 Price: $6.28 |
| 11 |
631-04045 |
Mulching Baffle Price: $17.24 |
| 12 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 13 |
749-04037 |
Lower Handle Price: $46.59 |
| 14 |
725-0157 |
Cable Tie Price: $3.46 |
| 15 |
17098P |
HINGE CLIP Not Available Price: |
| 16 |
731-04019 |
Trail Shield Price: $19.13 |
| 17 |
710-0599 |
Hex Screw, 1/4-20 x.500 Price: $3.86 |
| 18 |
682-3064-0637 |
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) Not Available Price: |
| 19 |
736-0741 |
Bell Washer, .760 x 1.25 x.041 Price: $3.99 |
| 20 |
712-04065 |
Lock Nut, 3/8-16 Price: $3.68 |
| 21 |
682-3065-0637 |
Handle Bracket Assembly - LH Price: $34.97 |
| 23 |
710-0654A |
Hex Washer Scr., 3/8-16 x 1.0 Price: $3.75 |
| 24 |
954-04100 |
V-Belt, 3L x 32.90 Price: $19.02 |
| 25 |
782-0585A-0637 |
HEIGHT ADJUSTMENT PLATE Not Available Price: |
| 26 |
728-0199 |
Rivet Price: $4.08 |
| 27 |
750-04407 |
SLEEVE SPACER .550IDX2.22LG Not Available Price: |
| 28 |
716-0198 |
Retainer Ring Price: $4.04 |
| 29 |
918-04375B |
TRANSMISSION Not Available This part replaces 918-04375A. Price: |
| 30 |
750-04406A |
SLEEVE SPACER Not Available Price: |
| 31 |
731-0073 |
Transmission Cover Price: $33.22 |
| 32 |
748-04016A |
Blade Adapter Price: $54.59 |
| 33 |
742-0742A-0637 |
Blade This part replaces 942-0742A. Price: $22.86 |
| 34 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 35 |
710-1044 |
Hex Cap Screw, 3/8-24 x 1.5 Price: $3.48 |
| 36 |
782-0584-0637 |
HEIGHT ADJUSTMENT PLATE Not Available Price: |
| 37 |
710-04531 |
Screw, 1/4-20 x .390 Price: $4.42 |
| 38 |
710-0216 |
Hex Cap Screw, 3/8-16 x.75 Price: $3.93 |
| 39 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 40 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 41 |
731-04643 |
Wheel Dust Cover Price: $7.28 |
| 42 |
915-0221 |
Pin Price: $3.93 |
| 43 |
717-1761 |
Spur Gear 14T - LH Price: $12.11 |
| 43 |
717-1762 |
Spur Gear 14T - RH Price: $12.11 |
| 44 |
732-04049 |
Ext. Spring, .47 OD x 2.50 Price: $4.20 |
| 45 |
734-04018C |
Wheel 8 x 2.125 This part replaces 734-04018A. Price: $16.82 |
| 46 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 47 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 48 |
931-1034B |
CHUTE DEFLECTOR Not Available Price: |
| 49 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 50 |
17032A |
PLATE-ADAPTER Not Available Price: |
| 51 |
741-04242 |
Height Adjustment Bearing Price: $6.57 |
| 52 |
687-02051 |
Height Lever Assembly (Incl. Ref. #58-59) This part replaces 987-02051. Price: $8.27 |
| 54 |
687-02342 |
Rear Pivot Arm Assembly Price: $13.49 |
| 55 |
738-1173 |
Shoulder Screw, 3/8-16 Price: $5.87 |
