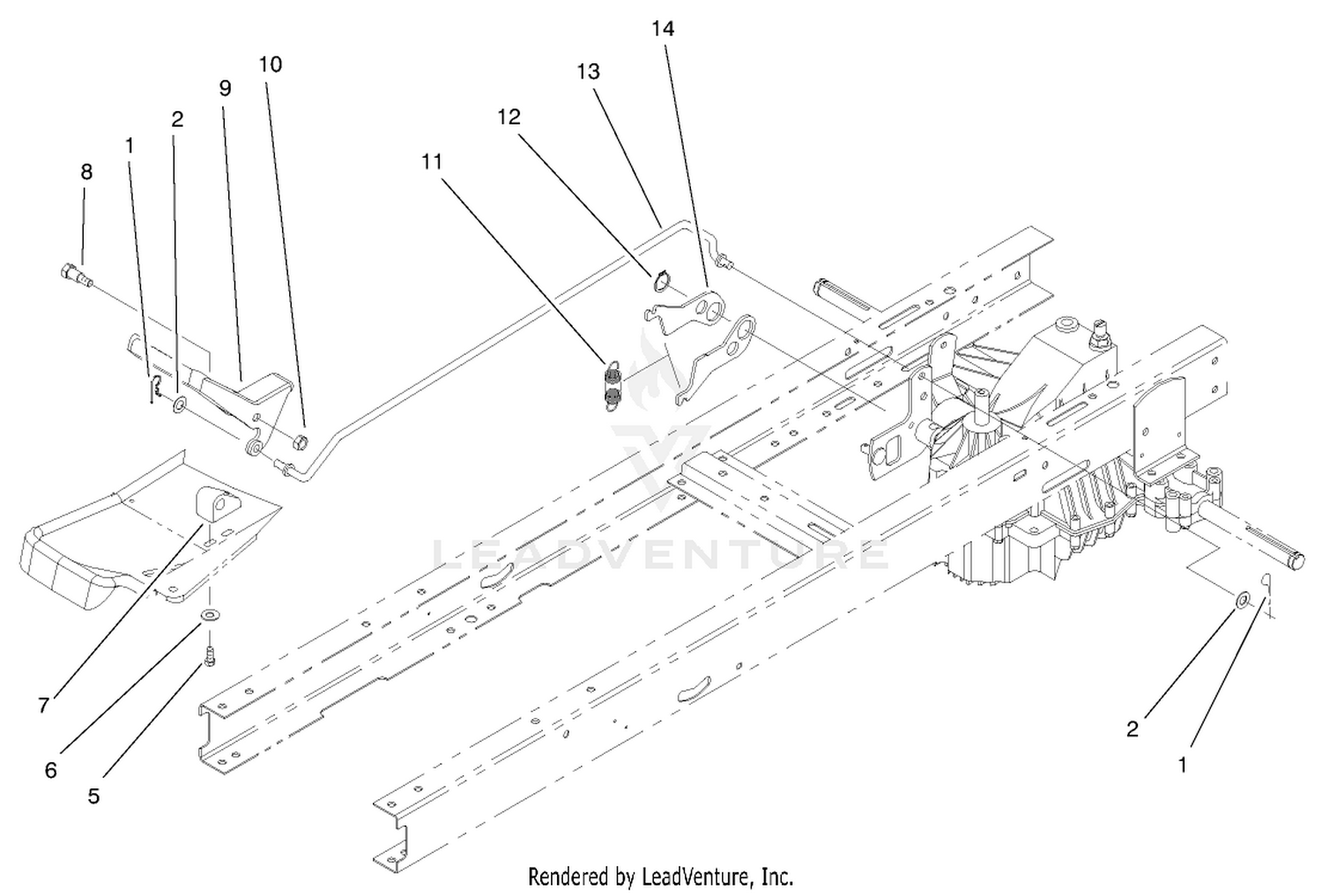

Speed Control Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 2 | 3256-37 | WASHER-FLAT Price: $0.54 |
| 5 | 46-8090 | SCREW-PLASTITE Price: $1.84 |
| 6 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 7 | 88-4690 | BLOCK-PIVOT Price: $9.66 |
| 8 | 23-0310 | SCREW-SHOULDER, HH Price: $16.18 |
| 9 | 93-3812 | PEDAL SPEED CONTROL Price: $21.89 |
| 10 | 121-4600 | NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 11 | 92-7305 | SPRING-EXTENSION Price: $9.99 |
| 12 | 32151-83 | RING-SNAP Price: $0.34 |
| 13 | 92-9793 | SPEED CONTROL ROD Price: $47.04 |
