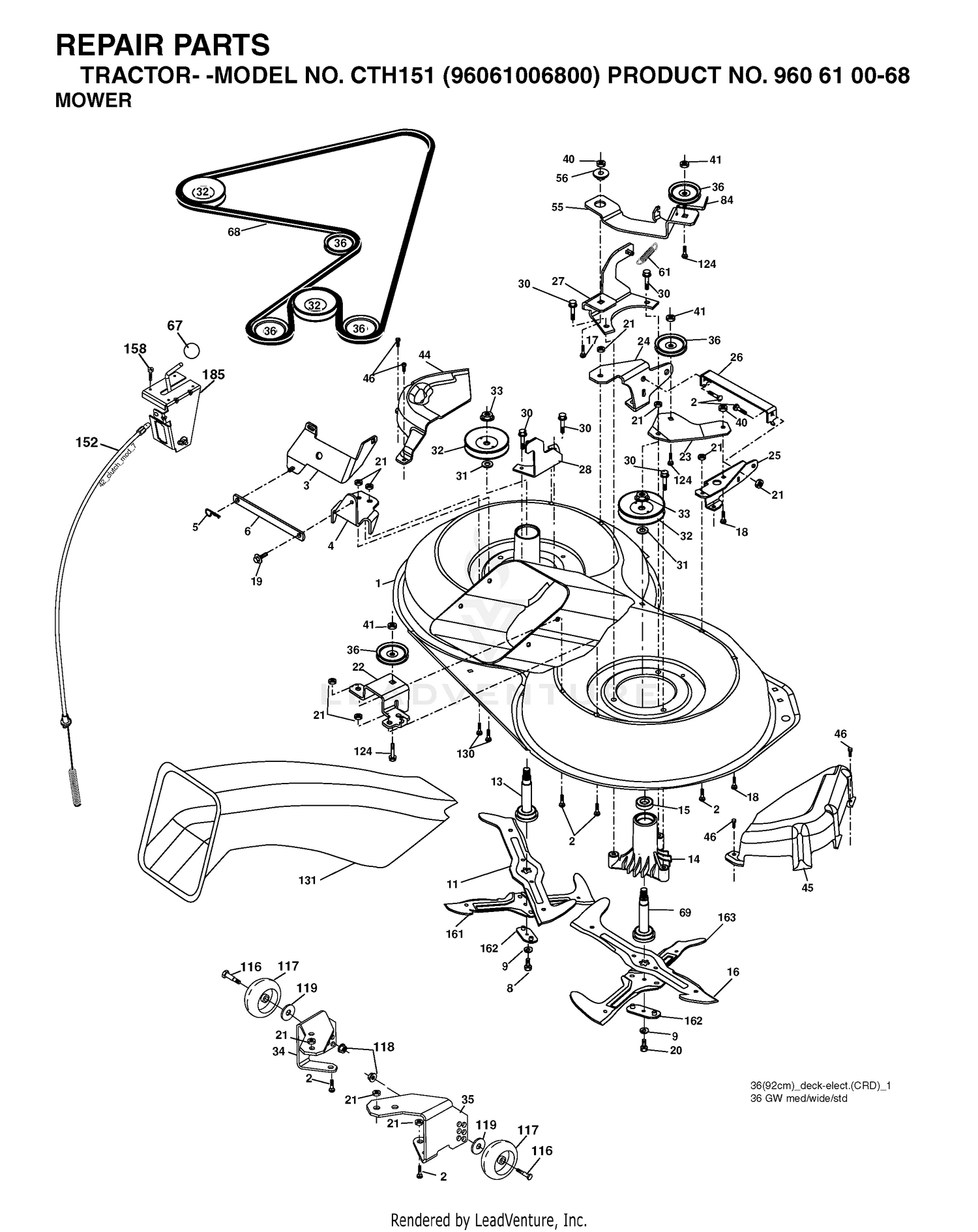

| Ref | Part Number | Description |
|---|
| 1 |
13-5620-01 |
DISCONTINUED This part replaces 13-5620. Price: Call Us |
| 1 |
532400108 |
NEEDS DESCRIPTION Price: Call Us |
| 2 |
3296-45 |
NUT-HEX Price: $3.79 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 3 |
532165569 |
BRACKET Price: $23.99 |
| 4 |
323-4 |
SCREW-HH Price: $1.02 |
| 4 |
532165558 |
BRACKET Price: $14.76 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 7 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 8 |
325-14 |
SCREW-HH Price: $2.64 |
| 8 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $5.99 |
| 9 |
3217-7 |
NUT-HEX Price: $0.28 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 11 |
2710-15 |
LINK-OFFSET Price: $29.98 |
| 11 |
532186385 |
NEEDS DESCRIPTION Price: Call Us |
| 12 |
13-4070 |
DISCONTINUED Price: Call Us |
| 13 |
321-4 |
SCREW-HH Price: $0.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
13-3710 |
WASHER Price: $3.05 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
13-4890-01 |
SPROCKET ASM This part replaces 13-4890. Price: $742.67 |
| 16 |
532186386 |
NEEDS DESCRIPTION Price: Call Us |
| 17 |
3218-3 |
NUT-JAM Price: $0.25 |
| 17 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 18 |
3247-6 |
SCREW-SET Price: $1.02 |
| 18 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 21 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
13-4960 |
SHAFT-PLATE, FINGER Price: $126.35 |
| 22 |
532199590 |
NEEDS DESCRIPTION Price: Call Us |
| 23 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 24 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 24 |
532165242 |
BRACKET Price: $12.99 |
| 25 |
115-9028 |
END PLATE ASM This part replaces 13-4930. Price: $71.85 |
| 25 |
532165244 |
BRACKET Price: $22.99 |
| 26 |
144-3697-01 |
FLEX TIP REEL This part replaces 13-5250. Price: $1,218.97 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532400110. Price: $29.99 |
| 27 |
115-9024 |
PLATE-CENTER This part replaces 13-2450. Price: $49.00 |
| 27 |
532165568 |
BRACKET Price: $22.99 |
| 28 |
115-9026 |
END PLATE ASM This part replaces 13-4940. Price: $75.83 |
| 28 |
532165567 |
BRACKET Price: $17.99 |
| 29 |
115-9022 |
FINGER-PLASTIC This part replaces 13-2470. Price: $1.83 |
| 30 |
13-3090 |
SPRING-FINGER Price: $9.71 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
115-9023 |
CLAMP-FINGER This part replaces 13-2480. Price: $5.46 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
32140-94 |
SCREW-HH, SEMS Price: $5.89 |
| 32 |
532175707 |
NEEDS DESCRIPTION Price: Call Us |
| 33 |
13-5700 |
DISCONTINUED Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
13-0560 |
SPACER Price: $5.29 |
| 34 |
532400107 |
NEEDS DESCRIPTION Price: Call Us |
| 35 |
532400106 |
NEEDS DESCRIPTION Price: Call Us |
| 35 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 36 |
13-0360 |
SPACER Price: $13.03 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 37 |
13-3070 |
SPACER Price: $8.69 |
| 38 |
32153-5 |
NUT-HEX Price: $1.59 |
| 39 |
13-5540-01 |
LIFTING LINK This part replaces 13-5540. Price: $40.11 |
| 40 |
328-10 |
SCREW-HH Price: $14.93 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 41 |
13-5230 |
DISCONTINUED X-REF Price: Call Us |
| 41 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 42 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 43 |
325-11 |
SCREW-HH Price: $1.93 |
| 44 |
323-9 |
SCREW-HH Price: $1.29 |
| 44 |
532175538 |
NEEDS DESCRIPTION Price: Call Us |
| 45 |
13-0320 |
COLLAR-LOCK Price: $42.44 |
| 45 |
532175539 |
COVER.MANDREL.RH.CRD Price: $17.99 |
| 46 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 48 |
13-5550-01 |
ARM-WHEEL, GAUGE This part replaces 13-5550. Price: $504.47 |
| 49 |
117-8544 |
WHEEL-CASTER This part replaces 13-2870. Price: $120.71 |
| 50 |
13-5570 |
PIVOT Price: $47.91 |
| 51 |
13-5590 |
ROD-ADJUSTING Price: $108.27 |
| 52 |
13-5670 |
SPACER-LOCKING Price: $189.75 |
| 53 |
3217-9 |
NUT-HH Price: $0.37 |
| 54 |
13-3020-01 |
SPROCKET-IDLER This part replaces 13-3020. Price: $125.22 |
| 55 |
583252901 |
ARM.IDLER.92.CRD./2006 This part replaces 532199498. Price: $22.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 61 |
583252601 |
SPRING.TENSION.92.CRD.2006 This part replaces 532199486. Price: $8.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 68 |
532402008 |
BELT.DRIVE.92CM.CRD.2006 Price: $69.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532184219. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 124 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 130 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $79.99 |
| 152 |
532176074 |
Price: Call Us |
| 158 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 161 |
532186387 |
NEEDS DESCRIPTION Price: Call Us |
| 162 |
532180878 |
Price: Call Us |
| 163 |
532186388 |
NEEDS DESCRIPTION Price: Call Us |
| 169 |
532400274 |
COVER TERMINAL BATTERY Price: $99.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $34.99 |
