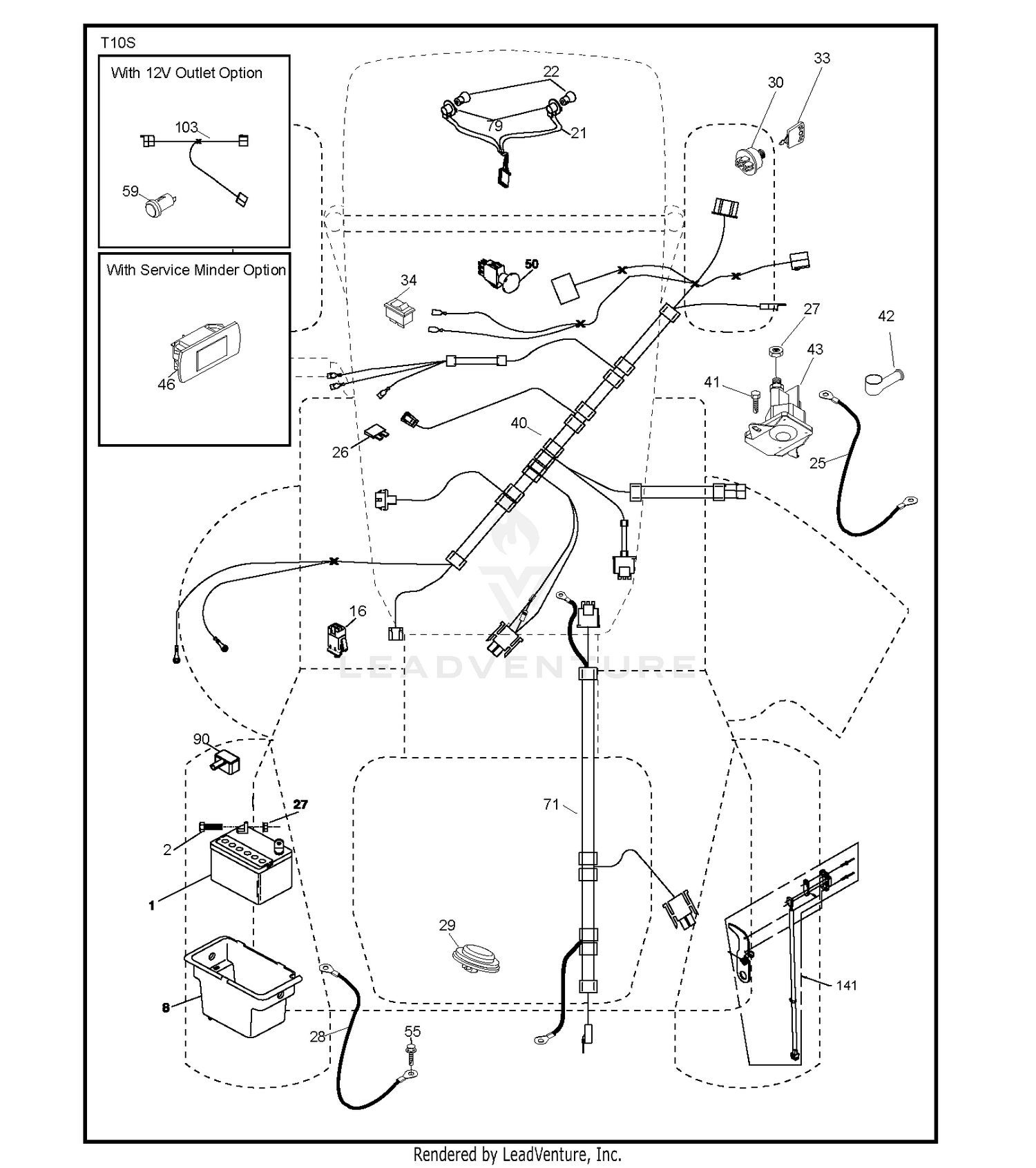

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144924. Price: $138.99 |
| 1 |
99-6905-03 |
NO. 5 LIFT ARM ASM Price: $807.57 |
| 2 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 2 |
874760412 |
BOLT LT Price: $3.99 |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 5 |
104-1438-03 |
STEP-PERFORATED Price: $33.53 |
| 6 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 7 |
328-7 |
SCREW-HH Price: $4.00 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $11.99 |
| 8 |
99-6941-03 |
PIVOT ROD ASM Price: $92.29 |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
98-3929 |
SPRING-TORSION Price: $23.85 |
| 11 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 14 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 15 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 16 |
282-4 |
SHACKLE Price: $32.98 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 17 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 19 |
256-287 |
BUSHING Price: $1.76 |
| 20 |
104-1413 |
CHAIN-LINK, STRAIGHT Price: $10.05 |
| 21 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 23 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 24 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 25 |
532412894 |
CABLE.STARTER.6GA.BL/RED.14. Price: $10.99 |
| 25 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 26 |
99-5610 |
PIN Price: $40.16 |
| 27 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 27 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $19.99 |
| 28 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 29 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $24.99 |
| 30 |
106-5952-03 |
DISCONTINUED Price: Call Us |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 31 |
106-7067-03 |
NO. 4 LIFT ARM ASM Price: $692.33 |
| 32 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 33 |
106-9004 |
BUMPER Price: $6.35 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $6.99 |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 34 |
99-6901-03 |
DISCONTINUED Price: Call Us |
| 35 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 36 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 38 |
323-6 |
SCREW-HH Price: $0.66 |
| 39 |
32128-21 |
NUT-HF Price: $0.39 |
| 40 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $68.99 |
| 41 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 41 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 42 |
532154336 |
Cover, Terminal Red This part replaces 532131563. Price: $4.99 |
| 42 |
98-3936 |
LANYARD Price: $23.28 |
| 43 |
532192507 |
SOLENOID.W/BRASS.PLUNG Price: $16.99 |
| 46 |
532401763 |
GUAGE.SRVCMNDR.HRMTR. Price: $48.32 |
| 50 |
532174651 |
PTO SWITCH Price: $22.99 |
| 55 |
532171877 |
Bolt 5/16-18 unc x 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
532441544 |
Price: $59.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
