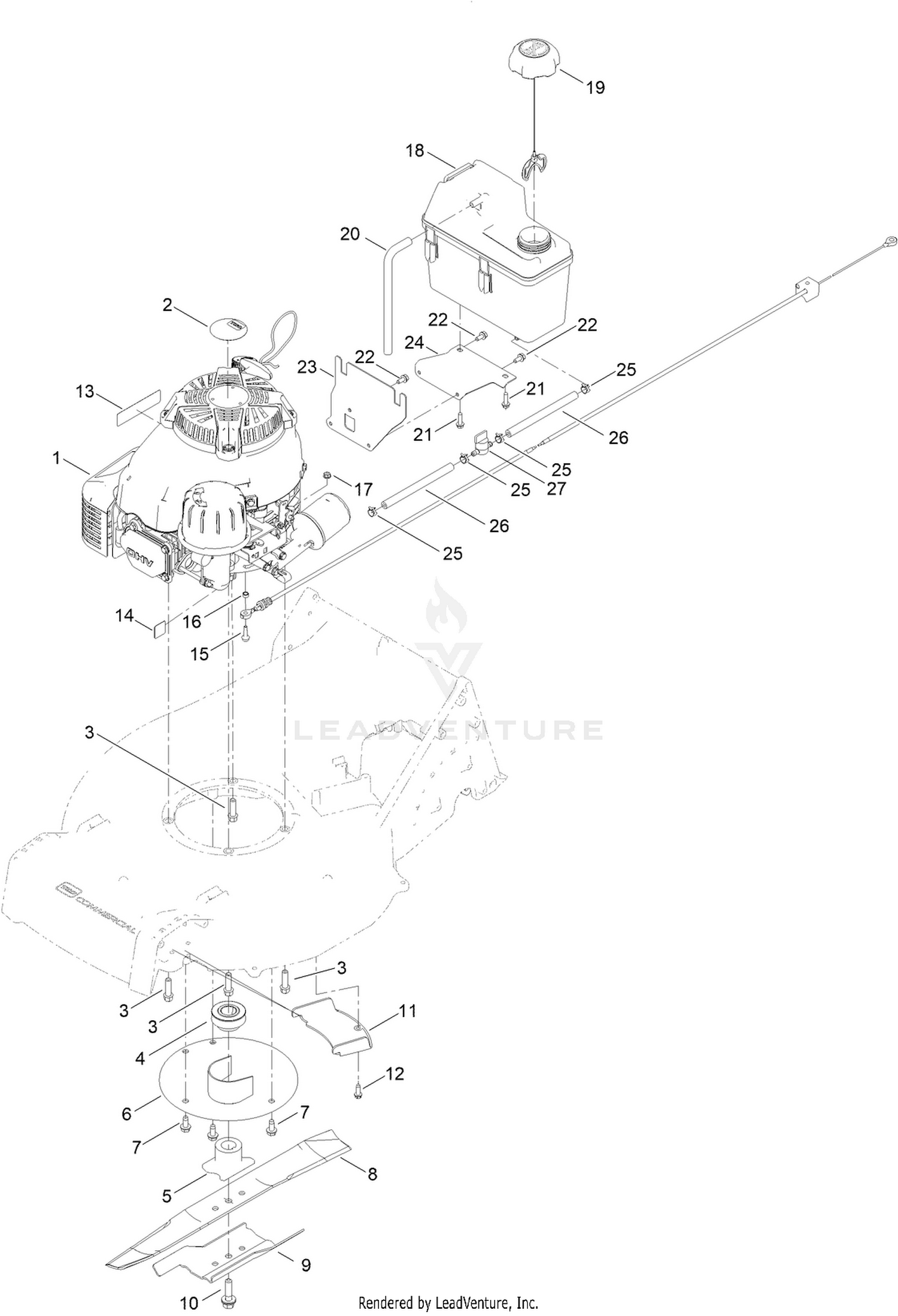

Engine and Blade Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 110-0520 | DECAL Price: $31.99 |
| 3 | 95-1727 | SCREW-TAPTITE Price: $1.79 |
| 4 | 125-8396 | PULLEY-DRIVER Price: $46.99 |
| 5 | 125-1004 | DRIVER-BLADE Price: $32.99 |
| 6 | 125-8370 | PROTECTOR-CRANKSHAFT Price: $100.99 |
| 7 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 8 | 133-8183-03 | BLADE-21IN, RECYCLING Price: $20.99 |
| 9 | 125-1069-03 | ACCELERATOR-BLADE Price: $15.99 |
| 10 | 125-2466 | BOLT-BLADE Price: $3.09 |
| 11 | 125-1024 | COVER-BELT Price: $10.99 |
| 12 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 13 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
| 14 | 125-8403 | DECAL-PRIMER Price: $3.09 |
| 15 | 139-1709 | SCREW-SHOULDER Price: $1.99 |
| 16 | 130-9691 | SPACER Price: $2.59 |
| 17 | 32128-17 | NUT-LOCK, FLANGE Price: $0.25 |
| 18 | 114-0280 | TANK-FUEL Price: $138.99 |
| 19 | 137-4127 | CAP-FUEL Price: $22.05 |
| 20 | 115-0962 | HOSE-VENT, CANISTER Price: $8.99 |
| 21 | 46-8091 | SCREW-HWH Price: $3.59 |
| 22 | 125-8383 | SCREW-HWH Price: $1.69 |
| 23 | 125-8381-03 | BRACKET-TANK, MOUNTING Price: $12.99 |
| 24 | 125-8382-03 | BRACKET-TANK, SUPPORT Price: $10.99 |
| 25 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 26 | 107-0588 | HOSE-FUEL Price: $5.67 |
