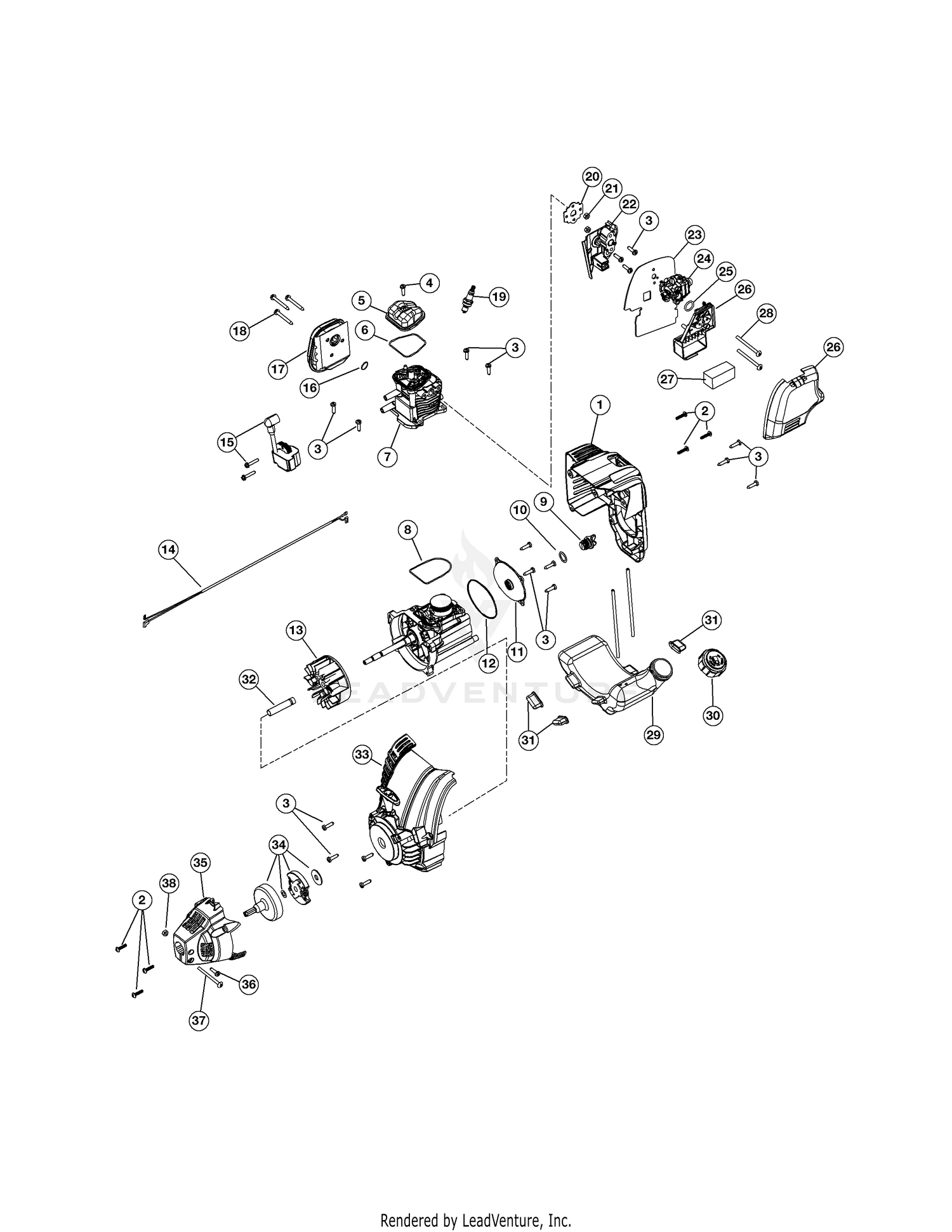

| Ref | Part Number | Description |
|---|
| 1 |
753-06134 |
Engine Cover Assembly (includes 2 & 3) Price: $9.43 |
| 2 |
710-04194 |
Cover Screw Price: $3.66 |
| 3 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 4 |
791-181025 |
Rocker Cover Screw Price: $2.44 |
| 5 |
753-05209 |
ROCKER COVER Not Available Price: |
| 6 |
721-04132 |
O-RING Not Available Price: |
| 7 |
753-06223 |
CYLINDER ASSEMBLY AC3.1 Not Available Price: |
| 8 |
753-05232 |
Cylinder O-Ring Not Available Price: |
| 9 |
753-05408 |
Oil Plug (includes 10) Price: $25.95 |
| 10 |
791-182290 |
Oil Plug O-Ring Price: $4.29 |
| 11 |
841-020721S |
CRANKCASE COVER This part replaces 753-06111. Price: $11.71 |
| 12 |
753-05238 |
Crankcase Cover O-ring Price: $9.20 |
| 13 |
753-06221 |
Flywheel Assembly Price: $18.82 |
| 14 |
753-05264 |
Lead Wires Price: $14.70 |
| 15 |
753-05301 |
Module Assembly This part replaces 753-05243. Price: $99.77 |
| 16 |
753-05244 |
Muffler Gasket Price: $5.11 |
| 17 |
753-05245 |
Muffler Assembly (includes 16 & 18) Price: $81.50 |
| 18 |
710-04809 |
SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 19 |
794-00082 |
Spark Plug This part replaces 794-00043. Price: $6.35 |
| 20 |
753-05247 |
GASKET/INSULATOR Not Available Price: |
| 21 |
712-04099 |
Nut Price: $5.94 |
| 22 |
753-05249 |
Insulator Not Available Price: |
| 23 |
753-05366 |
Carburetor Gasket Price: $17.21 |
| 24 |
753-06220B |
CARBURETOR ASSEMBLY This part replaces 753-06220. Price: $41.59 |
| 25 |
791-181751 |
O-Ring Price: $3.92 |
| 26 |
753-05252 |
AIR CLEANER COVER Not Available Price: |
| 27 |
753-05254 |
Air Filter Price: $4.88 |
| 28 |
710-04517 |
Screw Price: $4.71 |
| 29 |
753-06240 |
Fuel Tank Assembly w/Fuel Lines (includes 30) Price: $26.27 |
| 30 |
753-1229 |
Fuel Cap Price: $19.90 |
| 31 |
753-05259 |
Fuel Tank Pads Price: $5.72 |
| 32 |
750-04434 |
Spacer Price: $5.91 |
| 33 |
753-06226 |
STARTER HOUSING ASSEMBLY Not Available Price: |
| 34 |
753-06281 |
Clutch Drum Assembly Price: $19.43 |
| 35 |
753-05263 |
Clutch Cover (includes 2) Price: $24.30 |
| 36 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 37 |
9689A |
Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 38 |
712-0161 |
Nut Price: $4.02 |
