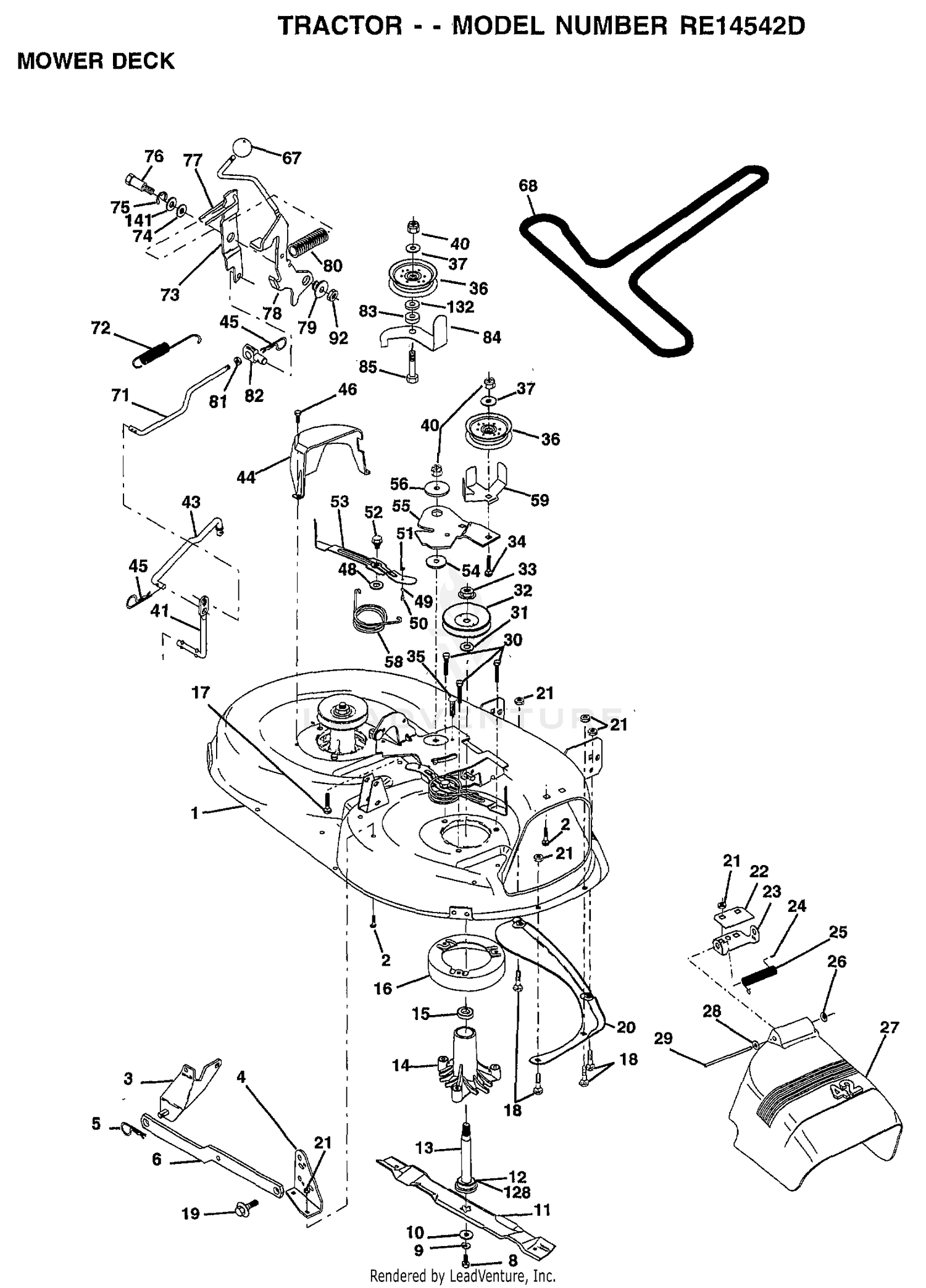

MOWER DECK

MOWER DECK

Parts (99)

RefPart NumberDescription
1 60-3820 SPINDLE Price: $1,516.53
2 60-3830 SEAL Price: $60.55
2 72140506 BOLT Price: Call Us
3 138017 BRKT ASM SWAY BAR Price: Call Us
3 60-3880 CONE Price: $179.96
4 165460 BRACKET DECK Price: Call Us
4 60-3850 CUP Price: $109.74
5 4939M SUB= 85902 Price: Call Us
5 60-3840 CONE Price: $163.95
6 130832 SUB= 130833 Price: Call Us
6 62-6450 RETAINING RING KIT Price: $152.42
7 107-4341 BOLT-WHEEL Price: $21.71
8 850857 BLADE BOLT Price: Call Us
9 10030600 SUB= 10040600 Price: Call Us
9 98-8270 BOLT Price: $1.59
10 107-4345 COVER Price: $545.42
10 140296 WASHER.HARD.BLADE Price: Call Us
11 108-1445 RING-RETAINING Price: $1.97
12 129895 BEARING.BALL Price: Call Us
12 62-6430 GEAR Price: $142.98
13 137645 SUB= 137646 Price: Call Us
13 60-3990 WASHER-THRUST Price: $10.52
14 107-4346 O-RING Price: $4.76
14 128774 HSG ASM MANDREL Price: Call Us
15 110485X BEARING Price: Call Us
15 60-4060 COVER Price: $9.99
16 107-4347 PLUNGER Price: $25.56
16 140329 STRIPPER RND MWR Price: Call Us
17 322-1 SCREW-HH Price: $0.22
17 72110610 BOLT RDHD 3/8-16 Price: Call Us
18 60-4040 PLUG Price: $11.10
18 72140505 BOLT Price: Call Us
19 108-1443 PRIMARY CARRIER ASM Price: $1,365.47
19 132827 BOLT SHD 5/16-18 Price: Call Us
20 159770 BAFFLE VORTEX 42 Price: Call Us
20 60-3900 GEAR Price: $1,114.65
21 108-1444 SECONDARY CARRIER ASM Price: $1,524.37
21 73680500 SUB= 73690500 Price: Call Us
22 134753 STIFFENER BRKT Price: Call Us
22 82-8700 RING Price: $1.97
23 131267 DEFLECTOR BRKT Price: Call Us
23 60-3950 SPRING Price: $8.11
24 105304X CAP-SLEEVE LT Price: Call Us
24 60-3940 WASHER Price: $4.07
25 107-4342 HUB Price: $1,742.44
25 123713X SPRING TORSION Price: Call Us
26 110452X NUT PUSH M Price: Call Us
26 60-3910 WASHER Price: $1.35
27 130968 DEFLECTOR.SHIELD Price: Call Us
27 60-3890 BOLT Price: $3.11
28 107-4340 SHAFT-INPUT Price: $281.87
28 19111016 WASHER Price: Call Us
29 131491 HINGE ROD Price: Call Us
30 60-3800 COUPLING Price: $131.07
31 129963 WASHER Price: Call Us
32 153535 PULLEY.MANDREL.42 Price: Call Us
33 137266 SUB= 139729 Price: Call Us
34 72110614 BOLT Price: Call Us
35 133835 XMAS TREE FASTNER Price: Call Us
36 131494 FLAT IDLER PULLEY Price: Call Us
37 19131316 WASHER Price: Call Us
40 73680600 SUB= 73690600 Price: Call Us
41 133551 PIVOT ROD Price: Call Us
43 140083 ROD CLUTCH W/NIBS Price: Call Us
44 140088 GUARD MAND LH BLK Price: Call Us
45 4497H RETAINER M Price: Call Us
46 137729 SCREW.1/4-20X5/8 Price: Call Us
48 133944 HARD SMALL WASHER Price: Call Us
49 155066 ROLLER ASM-CAM Price: Call Us
50 131340 SHOULDER BOLT Price: Call Us
51 69180 LOCKNUT Price: Call Us
52 139888 BOLT.SHLD.5/16-18 Price: Call Us
53 131845 BRAKE PAD ARM ASM Price: Call Us
54 133943 HARDENED WASHER Price: Call Us
55 155046 ARM-IDLER Price: Call Us
56 165723 SPACER.RETAINER.MOWER Price: Call Us
58 140086 SPRING TORSN BRAK Price: Call Us
59 141043 GUARD IDLER TUV Price: Call Us
67 162132 KNOB.RD.7/16-14 Price: Call Us
68 144200 BELT.V.T-PATH Price: Call Us
71 142427 ROD CLUTCH 38/42 Price: Call Us
72 131870 RETURN SPRING Price: Call Us
73 127847 CLUTCH ARM SECOND Price: Call Us
74 121748X WASHER Price: Call Us
75 12000029 RING Price: Call Us
76 128903 SHOULDER BOLT Price: Call Us
77 127845 SPRING KEEPER Price: Call Us
78 160570 LEVER.ASM.CLUTCH Price: Call Us
79 127498 BUSHING Price: Call Us
80 153701 SPRING.CLUTCH.MWR Price: Call Us
81 73350600 NUT Price: Call Us
82 142028 TRUNION ADJ Price: Call Us
83 120958X WASHER Price: Call Us
85 72140620 BOLT Price: Call Us
92 73800600 NUT Price: Call Us
128 153390 WASHER.FELT. Price: Call Us
132 19132203 WASHER GT Price: Call Us
141 6266H WASHER .T Price: Call Us
130794 MANDREL ASM Price: Call Us 130794
