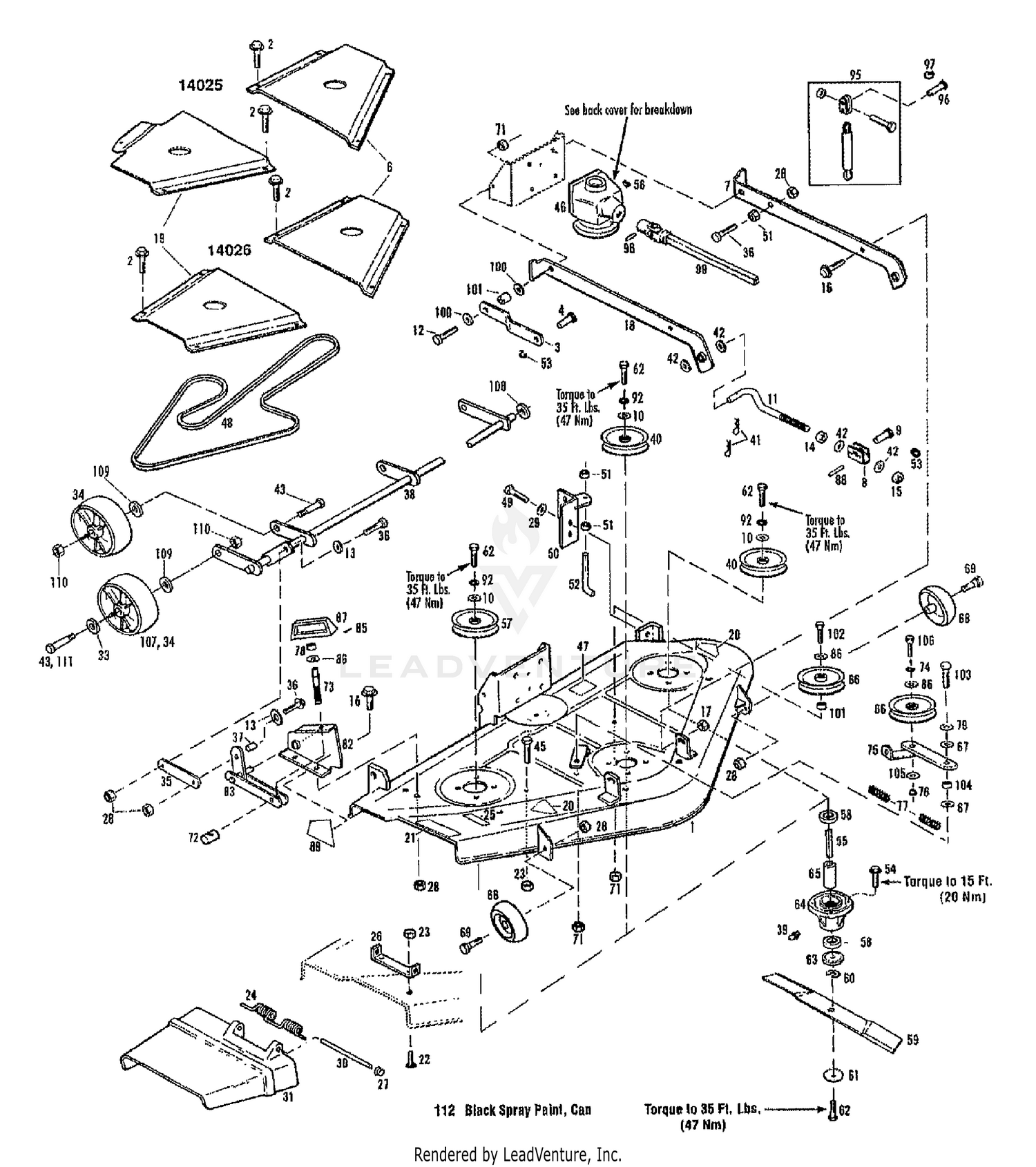

| Ref | Part Number | Description |
|---|
| 1 |
1772665 |
BASE-MOWER 42" SD W/DECALS {14025} Price: Call Us |
| 1 |
1772666 |
BASE-MOWER 48" SD W/DECALS {14026} Price: Call Us |
| 2 |
1724492 |
SCREW Not Available Price: |
| 3 |
1746169001 |
LINK-DRAG Not Available Price: |
| 4 |
711-0654 |
Pin, Clevis, 5/8 Dia X 1.34 Lg This part replaces 1752309. Price: $14.11 |
| 6 |
1762137001 |
COVER BELT (LH) Not Available Price: |
| 6 |
1762216001 |
BELT COVER Not Available Price: |
| 7 |
1764838001 |
SUPPORT-DECK (LH) Not Available Price: |
| 8 |
1746171001 |
BRACKET HITCH Not Available Price: |
| 9 |
711-1626 |
CLEVIS PIN .625 x 2.313 Not Available This part replaces 1752308. Price: |
| 10 |
1100265 |
WASHER FLAT Not Available Price: |
| 11 |
1746170 |
LINK-HITCH Price: Call Us |
| 13 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 14 |
712-0301 |
Nut, Hex Jam, 3/4-10 GR5 This part replaces 1186236. Price: $7.26 |
| 15 |
1120390 |
NUT-HK 3 Not Available Price: |
| 16 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 17 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 18 |
1764839001 |
SUPPORT-DECK (RH) Not Available Price: |
| 19 |
1765659001 |
COVER BELT (RH) Not Available Price: |
| 19 |
1765729001 |
COVER-BELT RH {14025} Price: Call Us |
| 20 |
1739687 |
DECAL-OPEI CAUTION Price: $6.36 |
| 21 |
1763407 |
DECAL DANGER Not Available Price: |
| 22 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 This part replaces 1736098. Price: $3.71 |
| 23 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 24 |
1756596 |
SPRING TORSION Not Available Price: |
| 25 |
1744491 |
DECAL CUTTING LIN Not Available Price: |
| 27 |
726-0100 |
Push Cap This part replaces 1724791. Price: $3.75 |
| 28 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 29 |
936-0206 |
Washer, Spec .378 x 1.0 x .125 Thk This part replaces 1891733. Price: $3.93 |
| 30 |
1756760 |
ROD Not Available Price: |
| 31 |
1755750 |
DEFLECTOR Not Available Price: |
| 33 |
736-0237 |
Washer, Flat, .65 x 1.25 x .075 This part replaces 1107386. Price: $3.90 |
| 33 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89 |
| 34 |
734-04005 |
CASTER WHEEL Not Available This part replaces 1743891. Price: |
| 35 |
1764633001 |
LINK-CONNE Not Available Price: |
| 35 |
1767666001 |
LINK-CONNE Not Available Price: |
| 36 |
710-0520 |
SCREW 3/8-16 x 1.50 This part replaces 1100047. Price: $3.93 |
| 37 |
1738160 |
SPACER Not Available Price: |
| 38 |
1772740001 |
PIVOT SHAFT ASSY Price: Call Us |
| 38 |
1772751001 |
SUPPORT ASSM-WHEEL Not Available Price: |
| 39 |
937-0146 |
Grease Fitting This part replaces 1185976. Price: $4.80 |
| 40 |
1171870 |
SHEAVE ASSY. Price: Call Us |
| 41 |
1100351 |
COTTER PIN Not Available Price: |
| 42 |
736-0188 |
Washer-Fl-.760Id X This part replaces 1185830. Price: $3.75 |
| 43 |
1772735 |
BOLT SHOUL Not Available Price: |
| 45 |
1100808 |
SCREW-HH Not Available Price: |
| 46 |
1744918001 |
ASSM-GEAR CASE Price: Call Us |
| 47 |
1757419 |
DECAL BELT DRIVE Not Available Price: |
| 48 |
1750842 |
BELT-V {14026} Price: $64.73 |
| 48 |
1754702 |
BELT {14025} Price: $121.70 |
| 49 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces 1100046. Price: $3.78 |
| 50 |
1748097001 |
SUPPORT-SHAFT G Not Available Price: |
| 51 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1185506. Price: $4.02 |
| 52 |
1742328 |
BOLT-HOOK Not Available Price: |
| 53 |
714-3020 |
Pin-Internal Cotte This part replaces 1751909. Price: $3.90 |
| 54 |
1766984 |
SCREW-FLANGE LOCK Not Available Price: |
| 55 |
1765028 |
SHAFT-SPINDLE Price: $108.76 |
| 57 |
1765210 |
ASSM-SHEAVE DRIVE Price: Call Us |
| 58 |
1185574P |
Ball Bearing This part replaces 1185574. Price: $32.02 |
| 59 |
1772170 |
BLADE-LIFT {14025} Price: $39.87 |
| 59 |
1772171 |
BLADE 48" DECK Not Available Price: |
| 60 |
1185649 |
RETAINING RING Not Available Price: |
| 61 |
1765197 |
WASHER-BELLEVILLE Price: $24.18 |
| 62 |
1765196 |
SCR-HH 1/2-14X1.00 Price: $3.71 |
| 63 |
1765029 |
BLADE SPACER Not Available Price: |
| 64 |
1769048099 |
Mower Spindle This part replaces 1765092. Price: $163.09 |
| 65 |
1746869 |
SPACER Price: $17.91 |
| 66 |
1752354 |
PULLEY-IDLER Price: $74.51 |
| 67 |
1724929 |
WASHER THR Not Available Price: |
| 68 |
1762138 |
WHEEL ANTISCALP NLAUD Not Available Price: |
| 69 |
1763219 |
SCR-SHLDR 3/8-16 Price: $8.93 |
| 71 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61 |
| 72 |
1762882 |
PIVOT SCRE Not Available Price: |
| 73 |
1761847 |
ROD-ADJUST Not Available Price: |
| 74 |
736-0921 |
Lock Washer, 1/2 This part replaces 1100245. Price: $3.90 |
| 75 |
1724923 |
ARM ASSEMBLY. IDLER Not Available Price: |
| 75 |
1752355 |
IDLER ARM Not Available Price: |
| 77 |
1746769 |
SPRING EXTENSION Price: $14.30 |
| 78 |
1762886 |
SPACER-HANDLE Not Available Price: |
| 79 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89 |
| 82 |
1767662001 |
ASSM-ADJ BRKT Price: Call Us |
| 83 |
1767664001 |
ASSM-ADJ ARM Price: Call Us |
| 85 |
1120210 |
DRIVE PIN, 3/16 x 1 Not Available Price: |
| 86 |
GW-20546 |
WASHER Not Available This part replaces 1890234. Price: |
| 87 |
1754149 |
HANDLE-HEIGHT ADJ Not Available Price: |
| 88 |
715-0150 |
Pin, Roll This part replaces 1185597. Price: $3.86 |
| 89 |
1764635 |
DECAL-HEIGHT ADJUS Not Available Price: |
| 92 |
736-0171 |
Lock Washer, 7/16 This part replaces 1100244. Price: $3.86 |
| 95 |
1754243 |
KIT-LIFT C Not Available Price: |
| 96 |
711-04722 |
Clevis Pin, .375 x .969 This part replaces 1708126. Price: $5.89 |
| 97 |
1751908 |
RING COTTER Not Available Price: |
| 99 |
1760050001 |
ASSM-DRIVESHAFT Price: Call Us |
| 100 |
1100257 |
FLAT WASHER Not Available Price: |
| 101 |
1730681 |
SPACER Not Available Price: |
| 102 |
1100067 |
HEX HEAD CAP SCREW Not Available Price: |
| 103 |
710-3181 |
Hex Cap Screw, 1/2-13 x 1.5 This part replaces 1100064. Price: $6.01 |
| 104 |
1728030 |
BEARING SLEEVE Not Available Price: |
| 106 |
1100015 |
HEX SCREW, 1/2-20 x 1-1/4 Not Available Price: |
| 107 |
1740569 |
WHEEL GAGE Not Available Price: |
| 108 |
1772736 |
WASHER Price: Call Us |
| 109 |
936-0456 |
FLAT WASHER Not Available This part replaces 1749937. Price: |
| 110 |
1185496 |
HEX NUT/JA Not Available Price: |
| 111 |
1772754 |
BOLT Not Available Price: |
