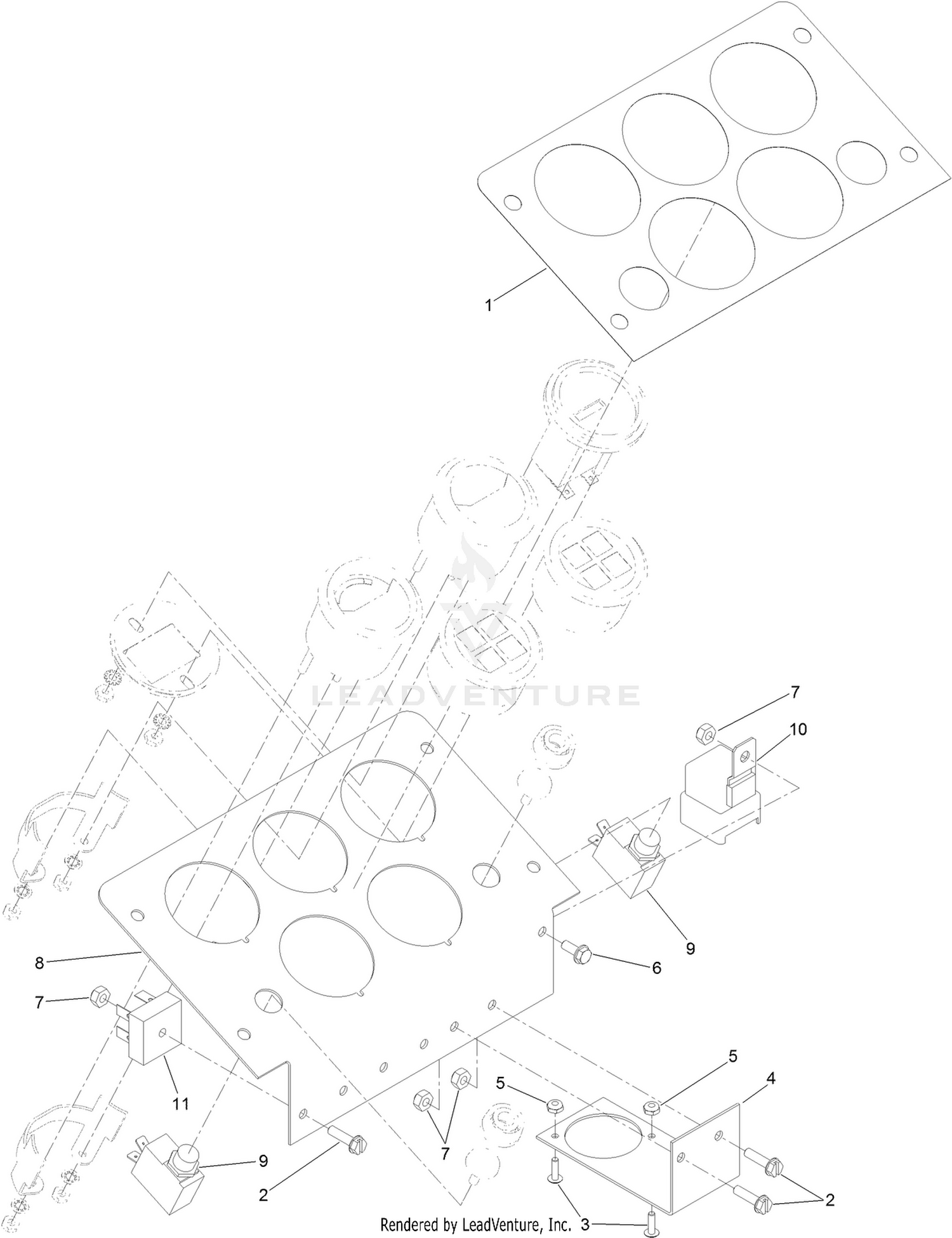

Instrument Board Service Assembly No. 132-1320
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-0393 | DECAL-PANEL, GAUGE Price: $37.89 |
| 2 | 32105-13 | SCREW-HWH Price: $1.59 |
| 3 | 3249-3 | SCREW-PRH Price: $0.34 |
| 4 | 69-9320 | BRACKET-CONNECTOR Price: $21.28 |
| 5 | 3296-9 | NUT-HEX Price: $0.25 |
| 6 | 3290-321 | SCREW-HWH Price: $3.99 |
| 7 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 8 | 71-4220 | PLATE-GAUGE Price: $46.14 |
| 9 | 43-6290 | SWITCH Price: $43.92 |
| 10 | 63-7590 | RELAY Price: $78.15 |
| 11 | 37-7600 | RECTIFIER-BRIDGE Price: $25.16 |
