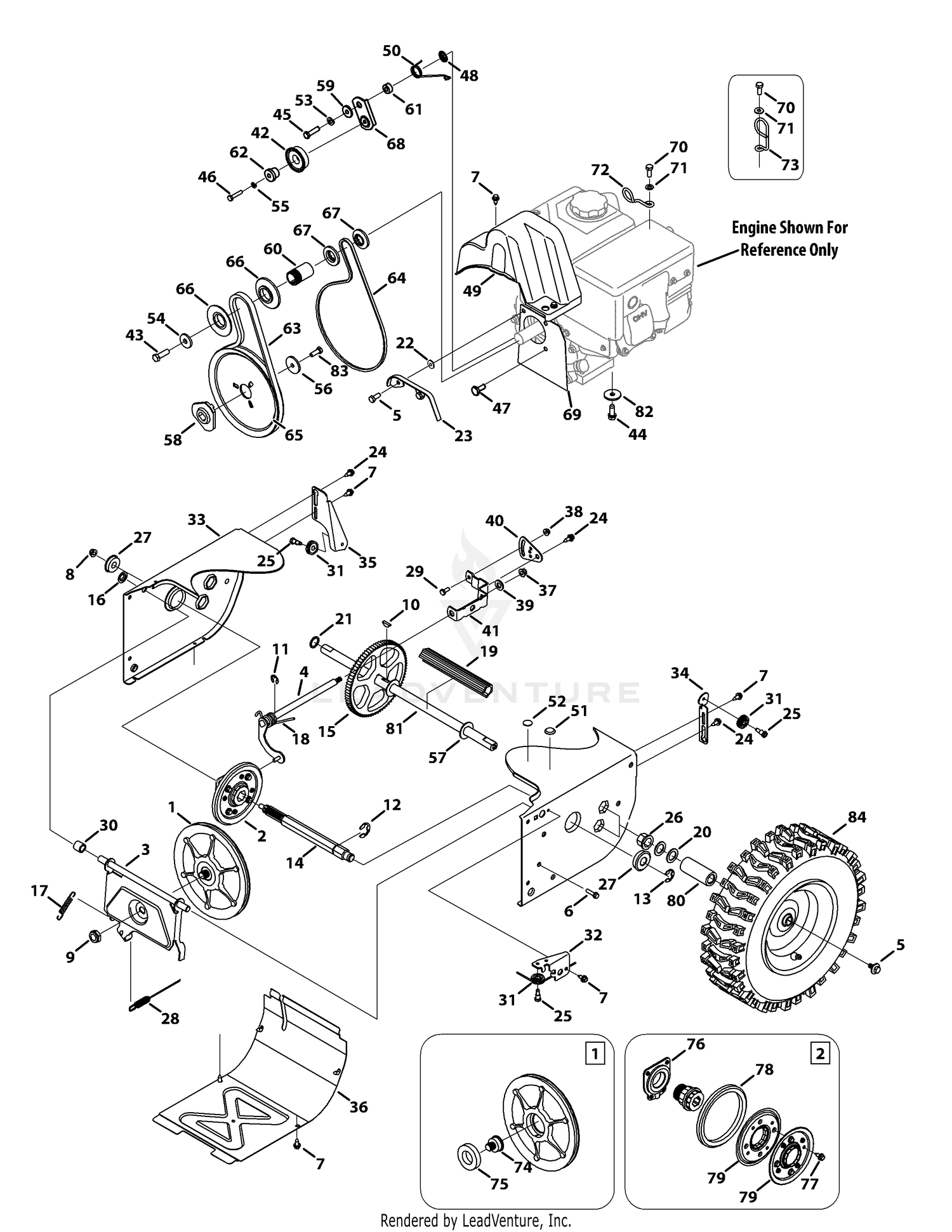

| Ref | Part Number | Description |
|---|
| 1 |
656-04055A |
FRICTION WHEEL DISC ASSEMBLY This part replaces 656-04055. Price: $52.47 |
| 2 |
684-04153C |
Friction Wheel Assembly, 5.5 OD Price: $89.34 |
| 3 |
684-04154B-0637 |
Friction Wheel Support Bracket Price: $36.47 |
| 4 |
684-04156A |
Rod Shift Assembly Price: $54.39 |
| 5 |
710-05339A |
SCREW 5/16-24 x .750 GR5 This part replaces 710-05339. Price: $3.70 |
| 6 |
710-0788 |
Taptite Screw, 1/4-20 x 1.000 Price: $6.20 |
| 7 |
710-1652 |
Taptite Screw, 1/4-20 x .625 Price: $3.86 |
| 8 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 9 |
712-0417A |
HEX NUT Price: $6.50 |
| 10 |
714-0126 |
Key This part replaces 914-0126. Price: $4.05 |
| 11 |
916-0104 |
E-Ring Price: $3.37 |
| 12 |
716-0136 |
Retaining E-Ring, .875 Dia. Price: $7.56 |
| 13 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 14 |
917-04209A |
Hex Shaft, 7-Tooth Price: $125.78 |
| 15 |
917-04230 |
Gear, 80-Tooth Price: $94.93 |
| 16 |
726-0221 |
Speed Nut, .500 Price: $5.34 |
| 17 |
932-0264 |
Extension Spring Price: $4.40 |
| 18 |
732-04311A |
Torsion Spring, .750 x .968 Price: $9.09 |
| 19 |
731-08181 |
Axle Spacer Price: $9.29 |
| 20 |
736-0287 |
Washer, Flat, .793 x 1.24 x .060 This part replaces 936-0287. Price: $3.93 |
| 21 |
736-04161 |
Flat Washer, .75 x 1.00 x .060 Price: $6.01 |
| 22 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 23 |
731-07101 |
Belt Cover Price: $9.09 |
| 24 |
738-04184A |
Shoulder Screw, .368 x .113, 1/4-20 Price: $5.99 |
| 25 |
738-0924A |
Shoulder Screw, 1/4-28, .340 x .355 Price: $5.94 |
| 26 |
941-0245 |
Hex Flange Bearing Price: $9.07 |
| 27 |
941-0563 |
Ball Bearing, 17 x 40 x 12 Price: $33.84 |
| 28 |
946-05067 |
Wheel Clutch Cable, 44.955" Price: $22.36 |
| 29 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 30 |
748-0190 |
Spacer, .508 ID x .75 OD x .68 Price: $5.48 |
| 31 |
756-0625 |
Cable Roller Price: $8.52 |
| 32 |
790-00096A-0637 |
Auger Cable Front Guide Bracket Price: $8.20 |
| 33 |
790-00180F-0638 |
DRIVE FRAME HOUSING (MTD RED) This part replaces 790-00180C-0638. Price: $122.39 |
| 34 |
790-00206B |
AUGER CABLE GUIDE BRACKET This part replaces 790-00206A-0637. Price: $7.40 |
| 35 |
790-03997 |
CABLE GUIDE BRACKET (DRIVE) This part replaces 790-00207C. Price: $4.55 |
| 36 |
790-00316-0638 |
Frame Cover Price: $41.74 |
| 37 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 38 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 39 |
936-3015 |
Washer, Flat, .469 x .875 x .105 Price: $3.89 |
| 40 |
790-00217A |
Speed Selector Pivot Bracket This part replaces 790-00217A-0637. Price: $8.22 |
| 41 |
790-00218A |
Speed Selector Shift Bracket This part replaces 790-00218A-0637. Price: $41.84 |
| 42 |
684-04169 |
Idler Pulley Assembly Price: $29.87 |
| 43 |
710-0191 |
Hex Screw, 3/8-24 x 1.25 Price: $4.02 |
| 44 |
710-0654A |
Sems Screw, 3/8-16 x 1.00 Price: $3.75 |
| 45 |
710-0672 |
Hex Screw, 5/16-24 x 1.25 Price: $3.85 |
| 46 |
710-0809 |
Hex Screw, 1/4-20 x 1.25 Price: $6.37 |
| 47 |
738-04439 |
SHOULDER SCREW Price: $3.49 |
| 48 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 49 |
631-05321 |
BELT COVER (SMALL BLOCK) This part replaces 731-04792A. Price: $21.88 |
| 50 |
732-04308C |
Torsion Spring, .850 dia. x .333 lg. This part replaces 732-04308A. Price: $4.42 |
| 51 |
735-04099 |
Plug, 3/8 ID Price: $5.15 |
| 52 |
735-04100 |
Plug, 1/2 ID Price: $5.25 |
| 53 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 54 |
736-3082A |
Flat Washer, .45 x 1.5 x .172 Price: $9.09 |
| 55 |
936-0329 |
Washer, Lock, 1/4 Price: $3.90 |
| 56 |
736-0505 |
Flat Washer, .34 x 1.50 x .150 Price: $5.65 |
| 57 |
736-0188 |
Washer, Flat, .760 x 1.49 x .060 Price: $3.75 |
| 58 |
748-04053A |
Adapter Pulley, .75 Dia. Price: $19.41 |
| 59 |
748-04112B |
Shoulder Spacer, .3175 x .5 x .0975 Price: $3.60 |
| 60 |
750-04303 |
Spacer, .875 ID x 1.185 OD Price: $15.09 |
| 61 |
750-04477A |
Spacer, .340 x .750 x .330 Price: $4.53 |
| 62 |
750-04571 |
Shoulder Space, .260 x .785 x .538 Price: $6.01 |
| 63 |
954-04050A |
Auger Drive Belt This part replaces 954-04050. Price: $25.43 |
| 64 |
954-04260 |
Wheel Drive Belt, Standard Price: $26.49 |
| 65 |
756-04109 |
Auger Drive Pulley, 8.1 x .5 Price: $47.55 |
| 66 |
756-06563 |
HALF PULLEY A2.76 x 1.140 SPLINE This part replaces 756-04113. Price: $3.40 |
| 67 |
756-04252 |
Pulley Half, 3/8 x 1.716 OD Price: $5.62 |
| 68 |
790-00208D |
Wheel Drive Idler Bracket Price: $7.85 |
| 69 |
790-00289B-0637 |
COVER PLATE (POWDER BLACK) This part replaces 790-00289A-0637. Price: $23.34 |
| 70 |
710-1681 |
HEX SCREW M8-1.25 x 20 GR8 This part replaces 710-04022. Price: $5.22 |
| 71 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 72 |
732-04677 |
Cable Guide Price: $7.87 |
| 73 |
732-0705 |
Cable Guide Price: $10.40 |
| 74 |
738-04164A |
Friction Disc Bearing Pin Price: $21.61 |
| 75 |
741-04098 |
Ball Bearing, 30 x 55 x 13 Price: $18.97 |
| 76 |
618-0063A |
Bearing Assembly Price: $80.89 |
| 77 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 78 |
935-04054A |
FRICTION WHEEL 5.50OD This part replaces 935-04054. Price: $35.10 |
| 79 |
790-00174C |
Friction Wheel Plate Price: $13.09 |
| 80 |
731-04873 |
Spacer, 1.25 x .75 x 3.0 Price: $8.93 |
| 81 |
938-04493 |
WHEEL AXLE SHAFT .75 x 22" This part replaces 738-04493. Price: $55.87 |
| 82 |
736-0320 |
Washer, Flat, .38 x 1.38 x .125 Price: $6.01 |
| 83 |
710-1245B |
Hex Head Screw, 5/16-24 x .875 Price: $7.21 |
| 84 |
634Z04167A-5103 |
WHEEL ASSEMBLY (13 x 4 x 6) (LH)(SBD GRAY) This part replaces 634-04167A-0911. Price: $166.77 |
