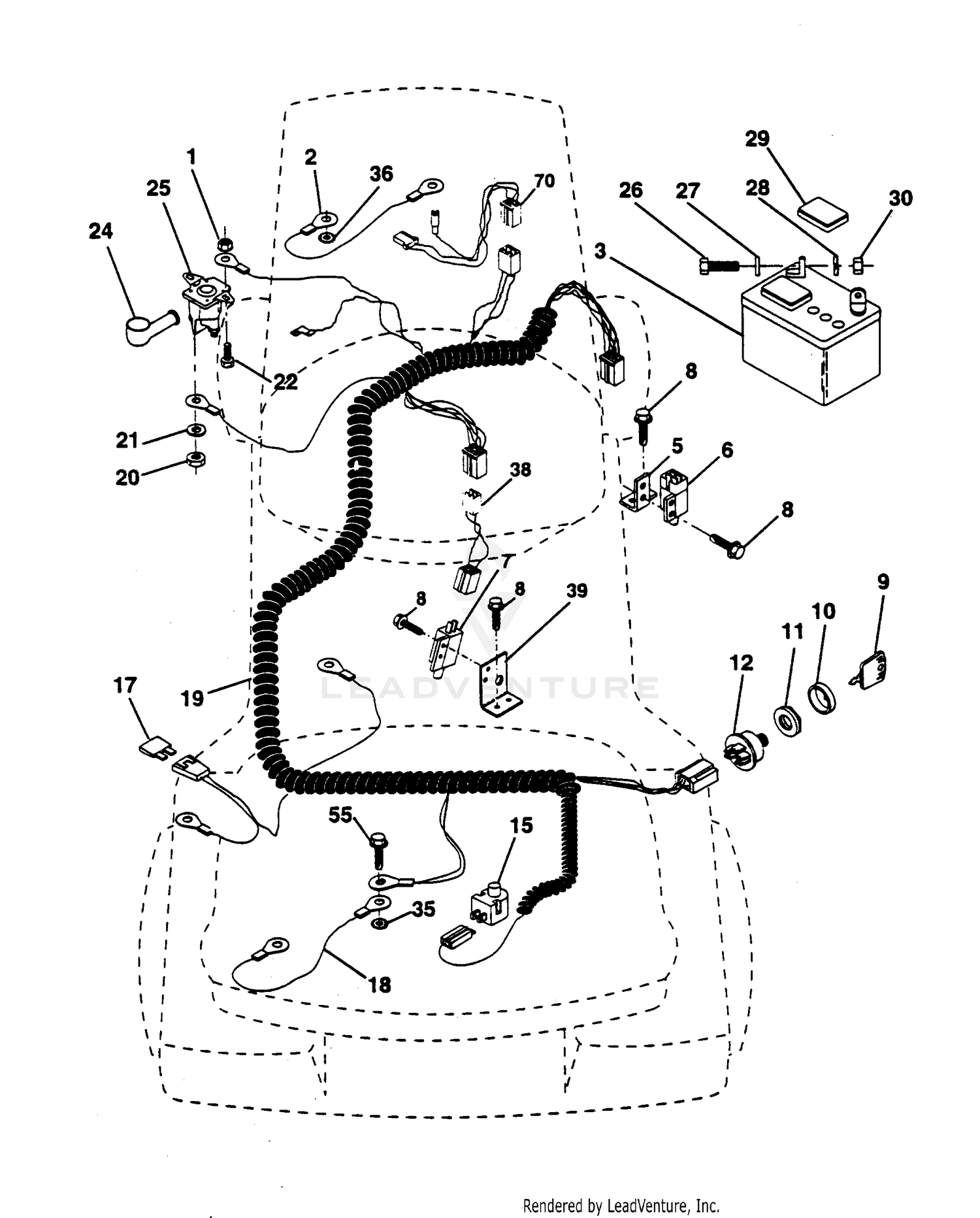

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 2 |
532108423 |
Assembly, Cable (AYP part number) Price: $5.99 |
| 3 |
112-8942 |
FRONT GRASS SHIELD ASM Price: $44.08 |
| 3 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532133909. Price: $139.99 |
| 4 |
125-1997 |
SHIELD-GRASS, REAR This part replaces 112-8944-01. Price: $68.52 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 5 |
532108236 |
Bracket, Switch (AYP part number) Price: $2.99 |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 6 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $4.99 |
| 7 |
110-1706 |
DEFLECTOR Price: $4.76 |
| 7 |
532104445 |
Switch, Interlock (2-terminal) (AYP part number) Price: $9.99 |
| 8 |
817021008 |
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) Price: $1.99 |
| 9 |
532140401 |
KEY MLD GEN DELTA This part replaces 532140402. Price: $3.99 |
| 10 |
532141226 |
Cover, Key Ignition (AYP part number) Price: $3.99 |
| 11 |
532145774 |
KIT-WASHER/NUT This part replaces 532140400. Price: $3.99 |
| 12 |
532144921 |
Switch, Ignition (AYP part number) This part replaces 532140399. Price: $11.99 |
| 15 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 17 |
532108824 |
Fuse (AYP part number) Price: $3.99 |
| 18 |
532128353 |
Assembly, Cable (AYP part number) Price: $3.99 |
| 19 |
532143131 |
Harness, Ignition (AYP part number) Price: $66.36 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 21 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 22 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 24 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 25 |
532138406 |
Solenoid (AYP part number) Price: $19.99 |
| 26 |
874760412 |
Bolt, Hex Hd. 1/4-20 UNC x 3/4 (AYP part number) Price: $3.99 |
| 27 |
819091016 |
Washer 9/32 x 5/8 x 16 (AYP part number) Price: $2.99 |
| 28 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 29 |
532121264 |
Cap, Battery (AYP part number) Price: $10.91 |
| 30 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 35 |
810040500 |
LOCKWASHER This part replaces 811050500. Price: $2.99 |
| 36 |
811150400 |
Washer Lock Inter. Tooth 1/4 (AYP part number) Price: $2.99 |
| 38 |
532140660 |
Adapter Harness (AYP part number) Price: $3.35 |
| 39 |
532141735 |
Bracket Switch Clutch (AYP part number) Price: $2.99 |
| 40 |
817490508 |
Screw, Thdrol 5/16-18 x 1/2 (AYP part number) Price: $3.99 |
