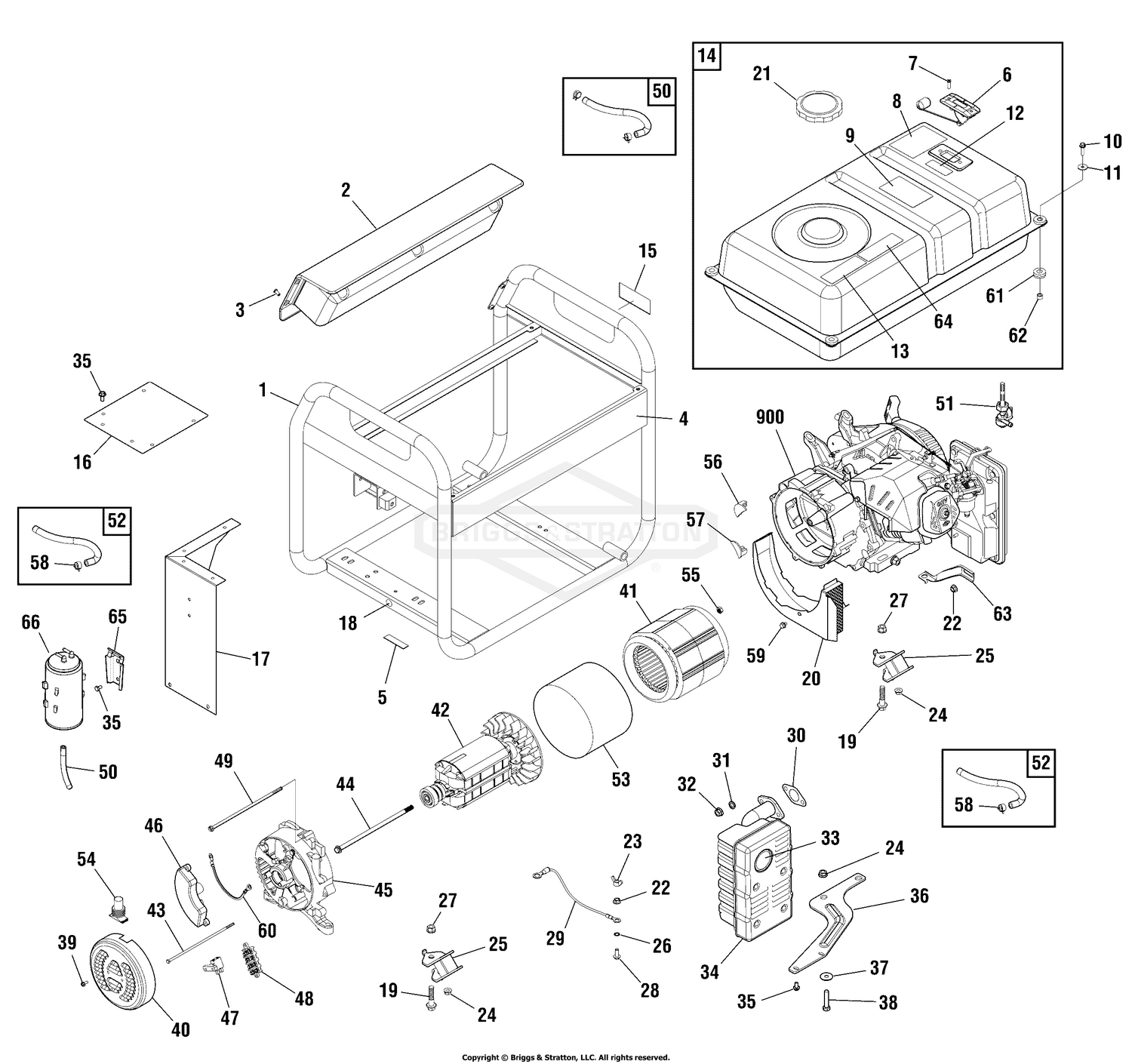

| Ref | Part Number | Description |
|---|
| 1 |
709930 |
CRADLE Price: $207.49 |
| 2 |
709936 |
PANEL-CONTROL Price: $229.99 |
| 3 |
703804 |
SCREW Price: $3.63 |
| 4 |
709933 |
DECAL Price: $15.69 |
| 5 |
706535 |
PAD-RUBBER Price: $3.69 |
| 6 |
704183 |
GAUGE-FUEL Price: $15.07 |
| 7 |
314440GS |
SCREW Price: $3.61 |
| 8 |
202997GS |
DECAL Price: $12.80 |
| 9 |
709937 |
DECAL Price: $9.53 |
| 10 |
703805 |
SCREW Price: $8.89 |
| 11 |
312005GS |
WASHER Price: $3.09 |
| 12 |
703264 |
DECAL Price: $15.53 |
| 13 |
709667 |
DECAL Price: $10.20 |
| 14 |
709929 |
TANK-FUEL Price: $311.89 |
| 15 |
704142 |
DECAL Price: $11.12 |
| 16 |
319456GS |
HEATSHIELD Price: $19.07 |
| 17 |
708881 |
HEATSHIELD Price: $60.99 |
| 18 |
704331 |
DECAL Price: $8.79 |
| 19 |
709939 |
BOLT Price: $3.28 |
| 20 |
709941 |
COVER-ALT Price: $24.99 |
| 21 |
319587GS |
CAP-FUEL Price: $18.25 |
| 23 |
87680GS |
NUT Price: $6.57 |
| 25 |
708877 |
MOUNT-VIBRATION Price: $11.33 |
| 27 |
709938 |
NUT-M10 FLANGE LOCK Price: $5.82 |
| 28 |
797686 |
SCREW This part replaces 706355. Price: $3.81 |
| 29 |
709932 |
WIRE Price: $4.65 |
| 30 |
704853 |
GASKET Price: $3.85 |
| 33 |
83083GS |
SCREEN Price: $8.49 |
| 34 |
708878 |
MUFFLER Price: $115.01 |
| 36 |
708879 |
BRACKET-MUFFLER Price: $177.54 |
| 38 |
709934 |
BOLT Price: $8.26 |
| 39 |
709935 |
SCREW Price: $3.28 |
| 40 |
704838 |
END COVER Price: $27.77 |
| 41 |
704140 |
STATOR Price: $402.63 |
| 42 |
708883 |
ROTOR This part replaces 709943. Price: $251.74 |
| 43 |
709944 |
BOLT Price: $6.46 |
| 44 |
709946 |
BOLT Price: $7.09 |
| 45 |
704836 |
CARRIER-BEARING Price: $73.71 |
| 46 |
704913 |
VOLTAGE REGULATOR Price: $50.46 |
| 47 |
704915 |
BRUSH ASSY Price: $6.34 |
| 48 |
705783 |
TERMINAL BLOCK Price: $3.52 |
| 49 |
709945 |
BOLT Price: $6.46 |
| 50 |
791745 |
LINE, Fuel Price: $8.97 |
| 51 |
209417GS |
VALVE-FUEL Price: $7.75 |
| 52 |
315017GS |
HOSE-VAPOR (cut to fit) Price: $26.64 |
| 53 |
317342GS |
BAND-STATOR Price: $8.29 |
| 54 |
207879GS |
BOOT Price: $6.22 |
| 55 |
709931 |
NUT Price: $2.85 |
| 56 |
705771 |
GUARD Price: $3.91 |
| 57 |
705772 |
GUARD Price: $3.59 |
| 58 |
314955GS |
CLAMP Price: $4.19 |
| 60 |
709940 |
WIRE Price: $4.65 |
| 61 |
189134GS |
GROMMET Price: $3.73 |
| 62 |
189137GS |
SPACER Price: $3.59 |
| 63 |
708880 |
BRACKET Price: $4.02 |
| 64 |
705545 |
DECAL Price: $9.74 |
| 65 |
318884GS |
BRACKET Price: $11.44 |
| 66 |
709684 |
CARB CANISTER Price: $69.18 |
