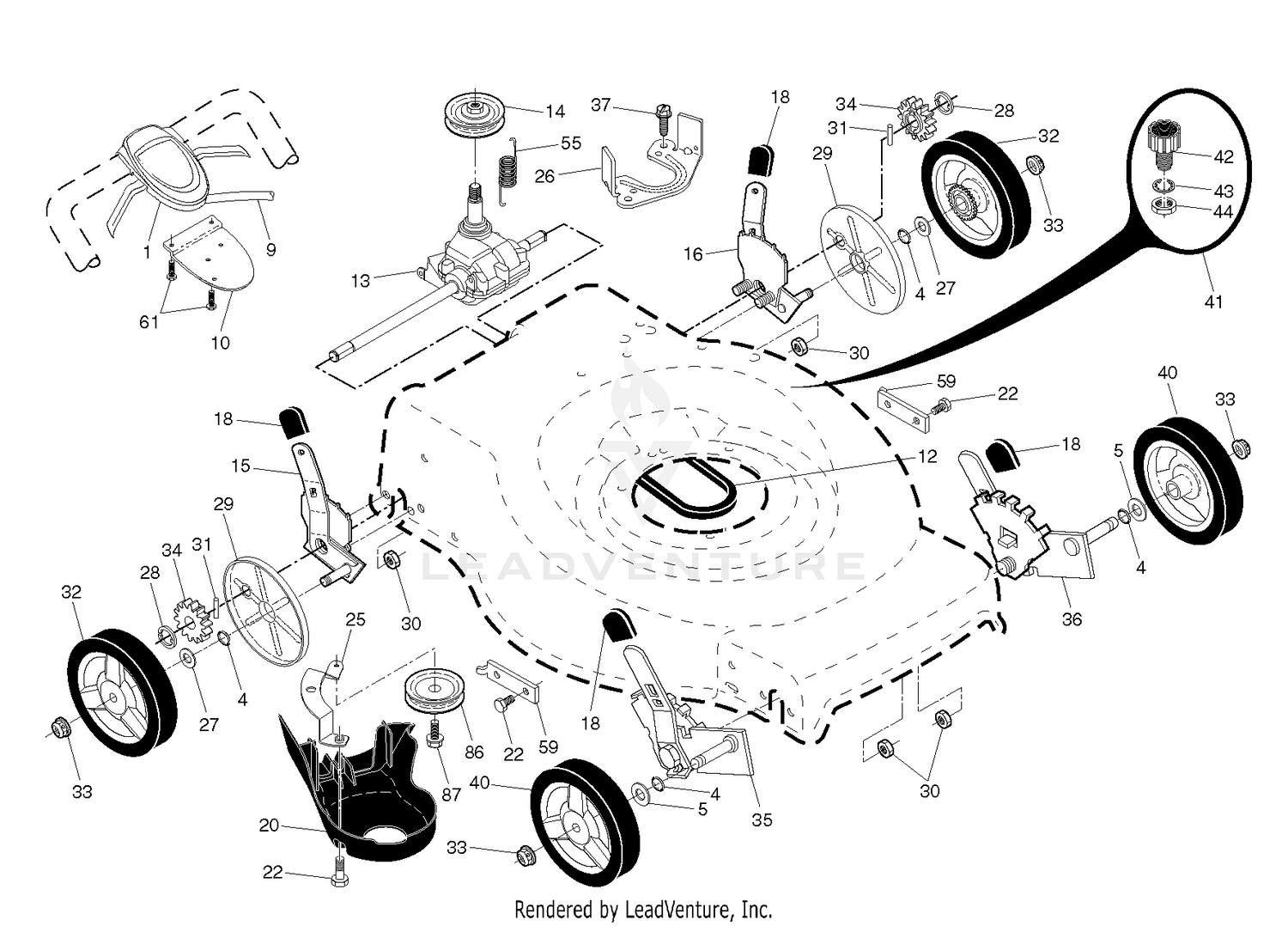

| Ref | Part Number | Description |
|---|
| 1 |
40-6230 |
SPRING Price: $37.99 |
| 1 |
589818808 |
CONTROL.DR.AW2.22+.BLK.GEN This part replaces 581950505. Price: $39.99 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 4 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 4 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 5 |
3296-5 |
NUT-HEX Price: $3.09 |
| 5 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 6 |
66-6380 |
DECAL-DANGER Price: $8.97 |
| 7 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 8 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 9 |
581952101 |
CABLE.DRIVE.RWD.WALK. Price: $29.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 12 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 12 |
580364611 |
BELT V3L 35.42, CLUTCHING COVE This part replaces 532406557. Price: $8.99 |
| 13 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 13 |
581680801 |
TRANSMISSION.22+AWD.WALK.MOWER Price: $129.99 |
| 14 |
28-9060 |
PLATE-IDLER Price: $137.75 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 15 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 16 |
99-1297 |
IDLER ARM ASM This part replaces 27-8580. Price: $133.94 |
| 17 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 18 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 19 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 20 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 Price: $19.99 |
| 21 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 22 |
27-1160 |
V-BELT Price: $51.80 |
| 22 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 23 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 24 |
32146-20 |
NUT-HEX Price: $3.23 |
| 25 |
7-4150 |
WASHER Price: $1.19 |
| 26 |
27-0970-03 |
PULLEY ASM This part replaces 27-0970. Price: $51.99 |
| 26 |
589318302 |
BRACKET.TRANS.BELTKEEP.21 RWD This part replaces 532426066. Price: $2.99 |
| 27 |
253-139 |
SEAL-OIL Price: $12.45 |
| 27 |
532067725 |
WASHER FLUT Price: $5.99 |
| 28 |
46-8530 |
BEARING ASM Price: $93.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK Price: $5.99 |
| 30 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 30 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 31 |
68-8340 |
DECAL-TORQUE Price: $19.99 |
| 32 |
581685101 |
WHEEL.8X1.75.3SPK.RAD3.GREY Price: $24.99 |
| 32 |
61-4160 |
HOUSING-SPINDLE Price: $131.00 |
| 33 |
32128-21 |
NUT-HF Price: $0.39 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
27-0920 |
SHAFT Price: $158.07 |
| 34 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 35 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 36 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 37 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 38 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 39 |
27-0950 |
SPACER Price: $29.99 |
| 40 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 This part replaces 532410831. Price: $29.99 |
| 40 |
72-9210 |
DISCONTINUED Price: Call Us |
| 41 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 41 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 42 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 42 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 43 |
29-4820 |
ROLLER Price: $14.88 |
| 43 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 44 |
3211-8 |
SCREW-HH Price: $3.50 |
| 44 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 45 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 46 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 47 |
3211-15 |
SCREW-HH Price: $7.99 |
| 48 |
13-3949 |
DEFLECTOR ASM Price: $214.07 |
| 49 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 55 |
581351301 |
SPRING.RETURN.AUTO. Price: $4.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 86 |
587969201 |
PULLEY.RWD.IDLER.DBL SEAL This part replaces 580364301. Price: $12.99 |
| 87 |
581127601 |
SCREW Price: $6.99 |
