| Ref | Part Number | Description |
|---|
| 1 |
67-7160 |
BLOCK-FUSE Price: $18.75 |
| 2 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 3 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 4 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 5 |
322-13 |
SCREW-HH Price: $2.73 |
| 6 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 7 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
283-49 |
PIN-CLEVIS Price: $1.02 |
| 9 |
92-5759 |
PLATE-SEAT Price: $194.60 |
| 10 |
66-2800-03 |
ROD-SUPPORT ASM This part replaces 66-2800. Price: $65.99 |
| 11 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 12 |
321-4 |
SCREW-HH Price: $0.99 |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
66-2630 |
LATCH-SEAT Price: $18.77 |
| 15 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 16 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 18 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 19 |
110-4105 |
HOSE-FUEL This part replaces 63-7620. Price: $11.71 |
| 20 |
27-7180 |
CAP Price: $70.51 |
| 21 |
94-3309 |
DISCONTINUED Price: Call Us |
| 22 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 23 |
115-8155 |
DECAL-WARNING This part replaces 93-7275. Price: $5.90 |
| 24 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 25 |
27-7100 |
AIR CLEANER ASM Price: $323.10 |
| 26 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 29 |
66-2451-03 |
BRACKET-AIR CLEANER This part replaces 66-2451. Price: $30.72 |
| 30 |
3258-19 |
SCREW Price: $0.42 |
| 31 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 32 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 33 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 34 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 35 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 36 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 37 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 38 |
321-8 |
SCREW-HH Price: $0.34 |
| 39 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 40 |
53-8150 |
PUMP-FUEL Price: $680.19 |
| 41 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 42 |
110-3257 |
HOSE-FUEL This part replaces 63-7630. Price: $17.26 |
| 43 |
66-2590 |
DISCONTINUED Price: Call Us |
| 44 |
37-9590 |
DISCONTINUED Price: Call Us |
| 45 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 46 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 47 |
63-7590 |
RELAY Price: $78.15 |
| 48 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 48 |
93-7841 |
DECAL-WARNING Price: $7.52 |
| 49 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 50 |
66-8800 |
RELAY Price: $87.56 |
| 51 |
92-7892 |
SEAT SWITCH BRKT. ASM Price: $46.04 |
| 52 |
2412-74 |
R-CLAMP Price: $2.37 |
| 53 |
37-2690 |
CAPACITOR Price: $155.98 |
| 54 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 55 |
92-8877 |
SEAT FRAME ASM Price: $257.82 |
| 56 |
93-7833 |
DECAL-THROTTLE AND LIFT CONTROL Price: $12.96 |
| 57 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 58 |
237-30 |
O-RING Price: $2.50 |
| 59 |
43-8610 |
GUIDE Price: $23.35 |
| 60 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 61 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 62 |
237-7 |
O-RING Price: $8.82 |
| 63 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 64 |
218-461 |
NUT-HH Price: $2.50 |
| 65 |
43-8870 |
BOOT-SWITCH Price: $47.92 |
| 66 |
28-8070 |
LANYARD Price: $13.85 |
| 68 |
67-1690 |
FITTING-SPECIAL Price: $8.57 |
| 69 |
321-6 |
SCREW-HH Price: $0.25 |
| 71 |
2412-107 |
CLAMP-R Price: $2.65 |
| 72 |
322-3 |
SCREW-HH Price: $0.79 |
| 73 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 74 |
66-2450-03 |
DISCONTINUED This part replaces 66-2450. Price: Call Us |
| 75 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 76 |
32128-33 |
NUT-HF Price: $0.25 |
| 77 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 78 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 79 |
92-5773 |
DISCONTINUED Price: Call Us |
| 79 |
93-7801 |
DECAL-STARTING INSTRUCT. Price: $6.20 |
| 80 |
43-2570 |
GASKET-PUMP Price: $15.12 |
| 81 |
43-2550 |
FILTER-PUMP Price: $23.30 |
| 82 |
43-2560 |
GASKET-PUMP Price: $23.14 |
| 83 |
43-2580 |
MAGNET-PUMP Price: $12.24 |
| 84 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 85 |
322-14 |
SCREW-HH Price: $1.01 |
| 86 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 87 |
80-3330 |
GASKET Price: $18.48 |
| 88 |
100-6577 |
DECAL-LOCK, LIFT Price: $8.60 |
| 89 |
100-6576 |
GRIP-HANDLE Price: $2.98 |
| 90 |
100-6551 |
LATCH-SPRING Price: $32.16 |
| 91 |
322-4 |
SCREW-HH Price: $0.35 |
| 92 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 93 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |

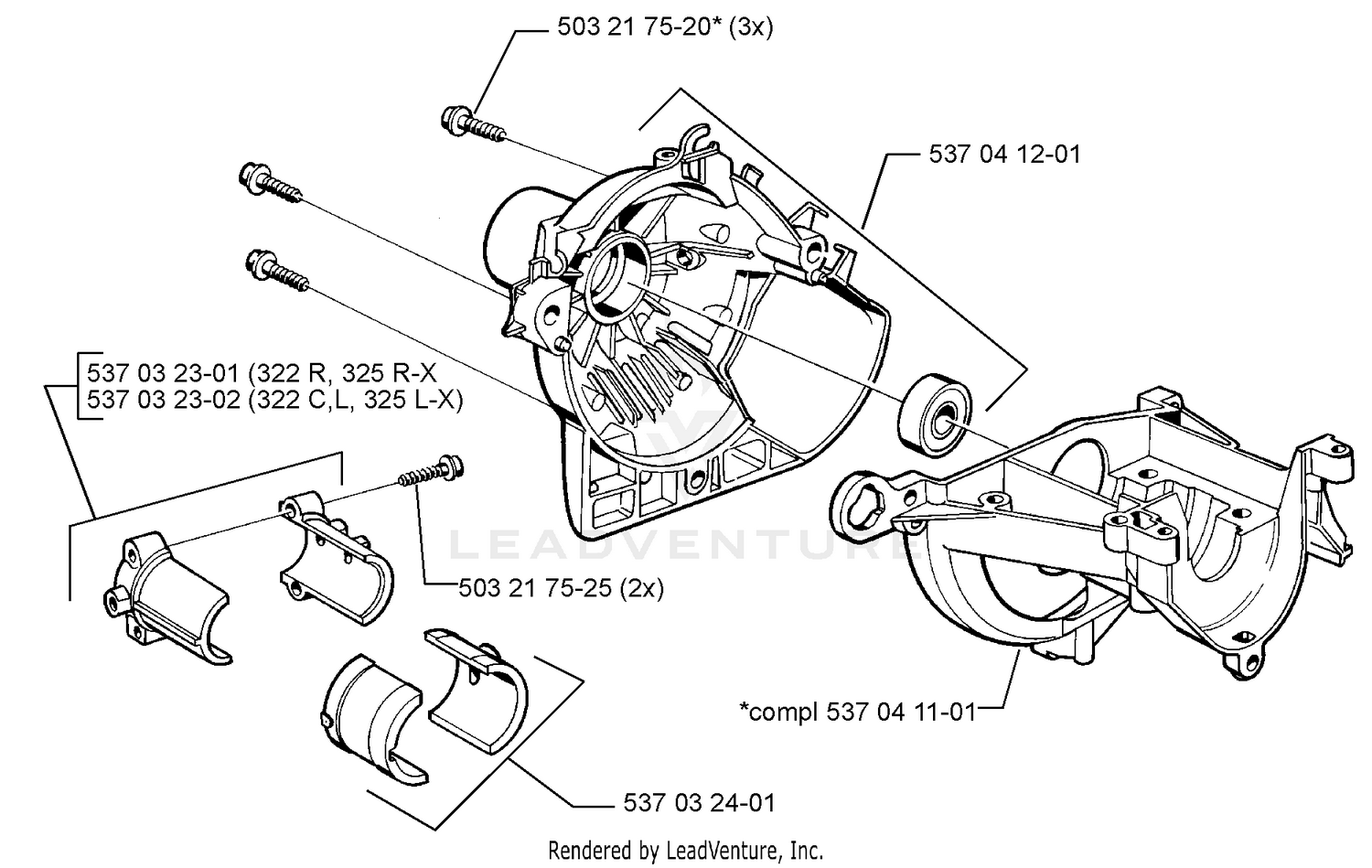

| 503217520 |
503217520 |
SCREW Price: $3.99 |
| 503217525 |
503217525 |
SCREW Price: $2.99 |
| 537032302 |
537309601 |
COMPRESION SLEEVE/ISOLATOR SET This part replaces 537032302. Price: $22.99 |
| 537032401 |
537309601 |
COMPRESION SLEEVE/ISOLATOR SET This part replaces 537032401. Price: $22.99 |
| 537041101 |
537041103 |
CRANKCASE This part replaces 537041101. Price: $54.99 |
| 537041201 |
537041209 |
CLUTCH COVER This part replaces 537041201. Price: $64.99 |
