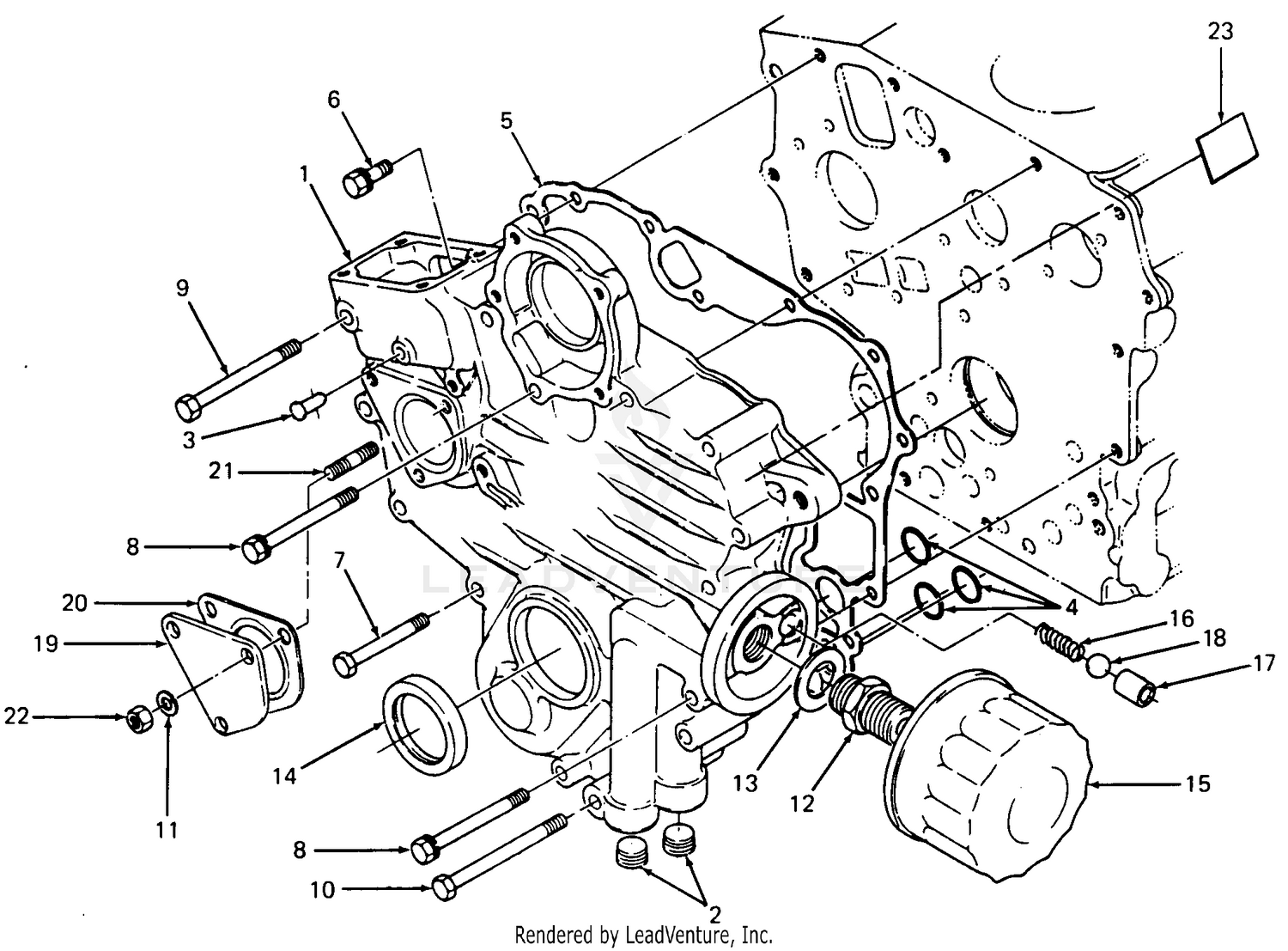

Gear Case
Parts (73)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-5052 | HOUSING ASM This part replaces 75-0020. Price: $2,587.20 |
| 2 | 75-0030 | GASKET-HOUSING Price: $20.85 |
| 2 | KB-15261-96020 | PLUG Not Available Price: |
| 3 | 75-0040 | SECTION-CENTER Price: $2,817.90 |
| 3 | KB-15841-56280 | PIN Not Available Price: |
| 4 | 83-4780 | HOUSING-PUMP, CHARGE Price: $714.23 |
| 4 | KB-04811-06130 | O-RING Not Available Price: |
| 5 | 75-0060 | PLUG Price: $22.19 |
| 5 | KB-15862-04132 | GASKET Not Available This part replaces KB-15862-04130. Price: |
| 6 | 104-2189 | PLUG-THREAD, STRAIGHT This part replaces 75-0070. Price: $24.99 |
| 6 | KB-01023-50618 | BOLT-HEX HD Not Available Price: |
| 7 | 86-7520 | RH TRUNNION COVER ASM Price: $486.26 |
| 7 | KB-01023-50650 | BOLT Not Available Price: |
| 8 | 75-0090 | CAPSCREW-HH Price: $2.16 |
| 8 | KB-15841-91010 | BOLT Not Available Price: |
| 9 | 86-7530 | LH TRUNNION COVER ASM Price: $465.32 |
| 9 | KB-01023-50670 | BOLT Not Available Price: |
| 10 | 75-0110 | CAPSCREW-HH Price: $2.14 |
| 10 | KB-01023-50675 | BOLT Not Available Price: |
| 11 | 75-0120 | CAPSCREW-HH Price: $7.11 |
| 11 | KB-04512-70060 | WASHER Not Available This part replaces KB-04512-50060. Price: |
| 12 | 75-0130 | DISCONTINUED Price: Call Us |
| 12 | KB-15241-32290 | JOINT Not Available Price: |
| 13 | 110-6342 | SPRING This part replaces 75-0140. Price: $9.45 |
| 13 | KB-15841-94010 | WASHER Not Available Price: |
| 14 | 75-0150 | GUIDE-SEAL Price: $270.30 |
| 14 | KB-15877-04140 | OIL SEAL Not Available Price: |
| 15 | 75-0160 | PLUG-PIPE Price: $4.39 |
| 15 | KB-HH150-32430 | FILTER-OIL Not Available This part replaces KB-70000-15241. Price: |
| 16 | 75-0170 | PLUG-THREAD, STRAIGHT Price: $18.20 |
| 16 | KB-15841-36950 | SPRING Not Available Price: |
| 17 | 75-0180 | CAPSCREW-HH Price: $19.18 |
| 17 | KB-15841-36930 | VALVE SEAT Not Available Price: |
| 18 | 75-0190 | PLUG-SPECIAL Price: $124.62 |
| 18 | KB-07715-03211 | BALL Not Available Price: |
| 19 | 67-9090 | PLUG This part replaces 75-0200. Price: $41.68 |
| 19 | KB-19461-83340 | COVER Not Available Price: |
| 20 | 75-0210 | O-RING Price: $7.35 |
| 20 | KB-19461-88130 | GASKET Not Available Price: |
| 21 | 75-0220 | PIN Price: $77.53 |
| 21 | KB-15221-88210 | STUD Not Available Price: |
| 22 | 75-0230 | SEAL-LIP Price: $80.68 |
| 22 | KB-02056-50060 | NUT Not Available Price: |
| 23 | 75-0240 | O-RING Price: $2.36 |
| 24 | 75-0250 | DISCONTINUED Price: Call Us |
| 25 | 75-0260 | VALVE-RELIEF Price: $97.16 |
| 26 | 75-0270 | SPRING Price: $9.79 |
| 27 | 75-0280 | SPRING Price: $7.03 |
| 28 | 75-0290 | DISCONTINUED Price: Call Us |
| 30 | 75-0310 | SHIM Price: $131.21 |
| 31 | 75-0320 | NIPPLE Price: $89.72 |
| 32 | 75-0330 | SEAL-LIP Price: $31.04 |
| 33 | 75-0340 | BEARING-NEEDLE Price: $86.35 |
| 34 | 75-0350 | PIN Price: $8.75 |
| 35 | 75-0360 | GEROTOR Price: $430.63 |
| 36 | 75-0370 | O-RING Price: $10.08 |
| 37 | 75-0380 | PLATE-VALVE Price: $518.86 |
| 38 | 75-0390 | DISCONTINUED Price: Call Us |
| 39 | 75-0400 | PLATE-THRUST Price: $41.27 |
| 40 | 75-0410 | O-RING Price: $5.70 |
| 41 | 86-7540 | SHAFT-PUMP Price: $910.85 |
| 42 | 75-0430 | RING-RETAINING Price: $23.82 |
| 43 | 75-0440 | SHAFT-MOTOR Price: $550.98 |
| 44 | 75-0450 | COLLAR Price: $44.00 |
| 45 | 75-0460 | BEARING-BALL Price: $175.71 |
| 46 | 75-0470 | CYLINDER BLOCK KIT Price: $1,746.91 |
| 47 | 94-3975 | PIN This part replaces 75-0480. Price: $5.80 |
| 49 | 75-0500 | BEARING-NEEDLE Price: $83.78 |
| 50 | 75-0510 | PIN Price: $8.40 |
| 51 | 75-0520 | BEARING-BALL Price: $88.98 |
| 52 | 75-6930 | VALVE-SCREW Price: $97.36 |
| 53 | 32120-74 | RING-SNAP Price: $0.54 |
| 55 | 93-0097 | VALVE-SCREW Price: $235.37 |
