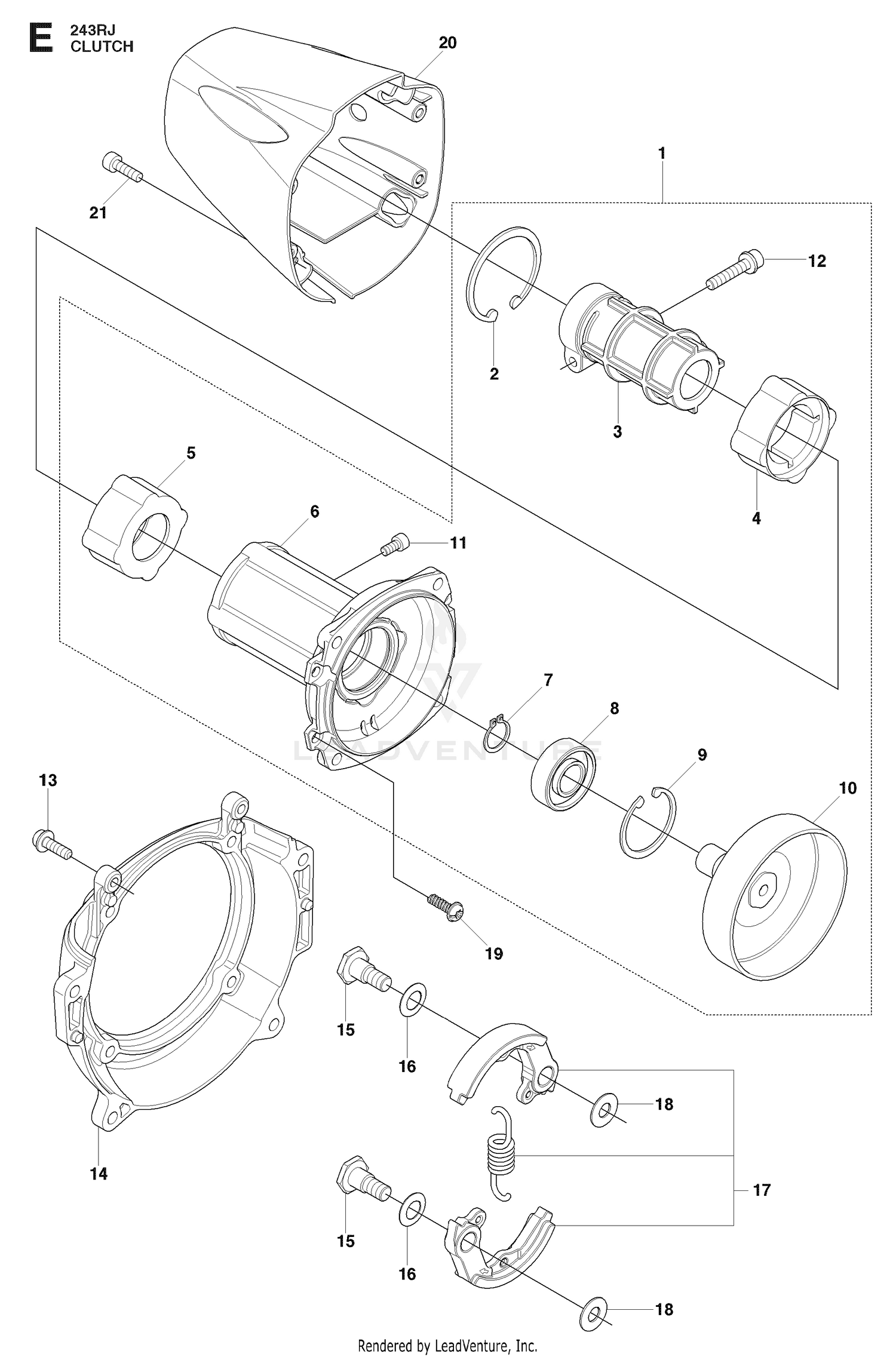

CLUTCH
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 525418401 | HOUSING ASSY Price: $99.99 |
| 2 | 43-5940 | WASHER-LOCK, SPRING Price: $0.70 |
| 2 | 516126401 | RING Price: $4.99 |
| 3 | 104-9902 | WASHER-FLAT Price: $20.50 |
| 3 | 521665001 | CLAMP Price: $17.26 |
| 4 | 100-7599 | BEARING-BALL Price: $39.33 |
| 4 | 521665201 | ABSORBER Price: $2.60 |
| 5 | 100-7588-03 | TINE ARM ASM Price: $617.26 |
| 5 | 521665101 | ABSORBER Price: $2.60 |
| 6 | 100-7598 | RING-SNAP Price: $93.01 |
| 6 | 521664901 | HOUSING Price: $22.22 |
| 7 | 100-7644 | BELT-HA ( SET 2=1 PC ) Price: $53.87 |
| 7 | 516124201 | RING, SNAP, M15 x 1.0 Price: $2.99 |
| 8 | 33119-120 | SCREW-HH Price: $14.56 |
| 8 | 516131701 | BEARING 0600406202 Price: $7.99 |
| 9 | 33115-120 | SCREW-HH Price: $4.61 |
| 9 | 505294001 | Price: Call Us |
| 10 | 33099-00 | WASHER-FLAT Price: $0.95 |
| 10 | 591425801 | DRUM This part replaces 505293801. Price: $27.99 |
| 11 | 100-7580 | BOTTOM LINK ASM Price: $331.60 |
| 11 | 506616101 | BOLT TORX M5XL10 T27 Price: $2.99 |
| 12 | 100-5391 | TUBE-SPACER Price: $14.28 |
| 12 | 521862301 | BOLT,TORX M6X30 Price: $2.99 |
| 13 | 100-7607 | WASHER-LOCK Price: $2.71 |
| 13 | 515391301 | BOLT This part replaces 521347901. Price: $2.99 |
| 14 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 15 | 100-7606 | NUT-HEX Price: $2.92 |
| 15 | 505297801 | SCREW Price: $4.99 |
| 16 | 104-9913 | SCREW-HH, LH Price: $31.00 |
| 16 | 505298101 | WASHER Price: $2.99 |
| 17 | 100-7631 | PULLEY-IDLER Price: $146.29 |
| 17 | 521636401 | SHOE COMP Price: $49.99 |
| 18 | 100-7578 | SPACER-IDLER,SHORT Price: $14.03 |
| 18 | 505298001 | WASHER Price: $2.99 |
| 19 | 100-7579 | SPACER-IDLER, LONG Price: $17.54 |
| 19 | 521517901 | SCREW Price: $2.99 |
| 20 | 328-23 | SCREW-HH Price: $13.03 |
| 20 | 510173101 | CLUTCH COVER Price: $37.99 |
| 21 | 525419101 | NEEDS DESCRIPTION Price: Call Us |
