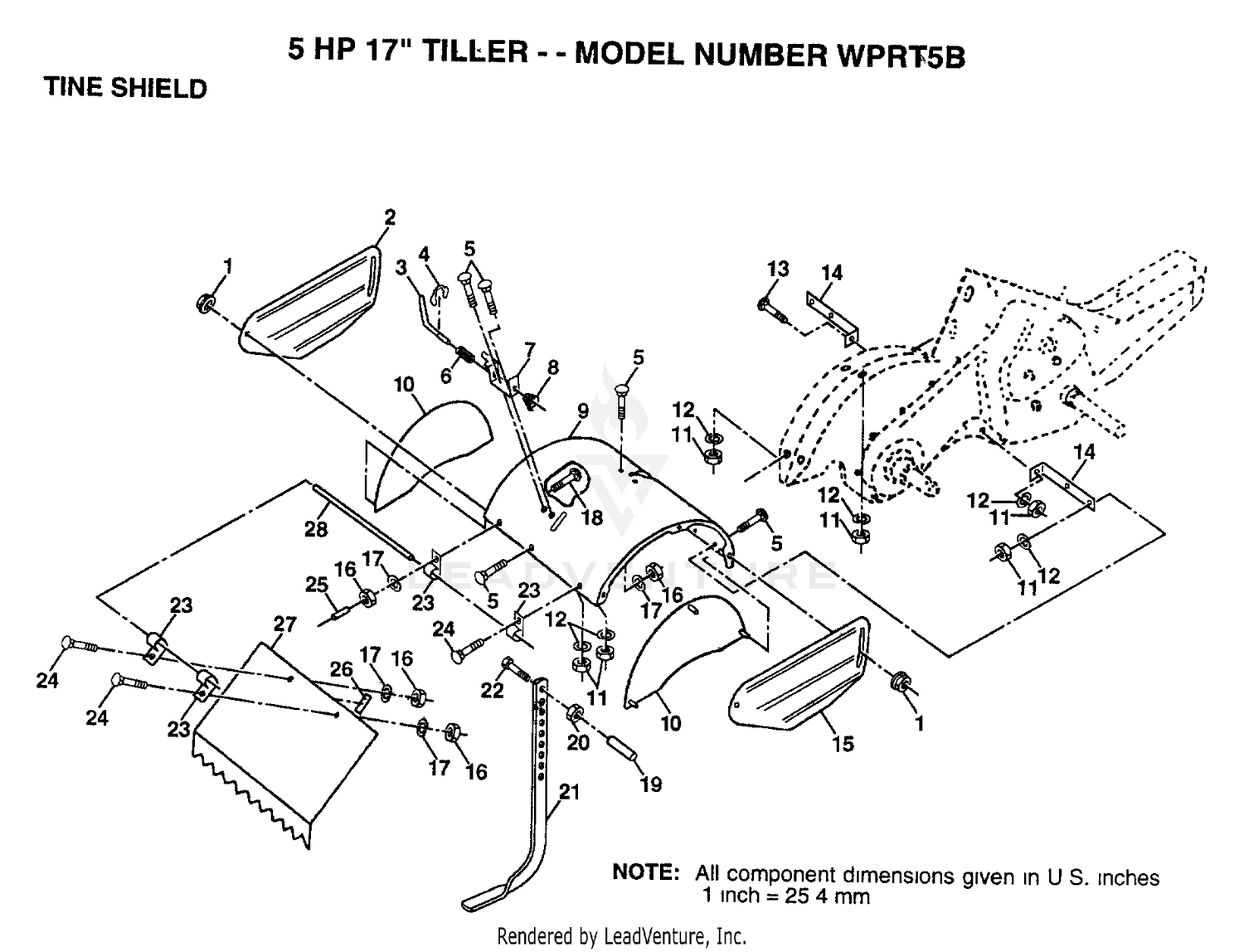

TINE SHIELD
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98000129 | NUT Price: Call Us |
| 2 | 104086X505 | SHIELD.SD.OUT.LH Price: Call Us |
| 2 | 107-4340 | SHAFT-INPUT Price: $281.87 |
| 3 | 69-1740 | SPINDLE Price: $811.14 |
| 3 | 8393J | STAKE PIN TI Price: Call Us |
| 4 | 12000036 | KLIP RING TI Price: Call Us |
| 4 | 60-3830 | SEAL Price: $60.55 |
| 5 | 60-3840 | CONE Price: $163.95 |
| 5 | 72140506 | BOLT Price: Call Us |
| 6 | 60-3850 | CUP Price: $109.74 |
| 6 | 8394J | SPRING TI Price: Call Us |
| 7 | 107-4341 | BOLT-WHEEL Price: $21.71 |
| 7 | 8392J | LATCH BRACKET TI Price: Call Us |
| 8 | 107-4342 | HUB Price: $1,742.44 |
| 8 | 109230X | SPRING CRT Price: Call Us |
| 9 | 60-3880 | CONE Price: $179.96 |
| 10 | 60-3890 | BOLT Price: $3.11 |
| 11 | 60-3910 | WASHER Price: $1.35 |
| 11 | 73220500 | NUT.HEX.5/16-18 Price: Call Us |
| 12 | 10040500 | LOCKWASHER Price: Call Us |
| 12 | 60-3980 | WASHER Price: $0.27 |
| 13 | 60-3970 | GEAR Price: $190.25 |
| 13 | 72110510 | BOLT Price: Call Us |
| 14 | 124343X | BRKT SHIELD TINE Price: Call Us |
| 14 | 322-1 | SCREW-HH Price: $0.22 |
| 15 | 104101X505 | SHIELD.SD.OUT.RH Price: Call Us |
| 15 | 60-3960 | PRIMARY CARRIER ASM Price: $2,411.05 |
| 16 | 60-4040 | PLUG Price: $11.10 |
| 16 | 73220400 | SUB= 50675 Price: Call Us |
| 17 | 10040400 | LOCKWASHER Price: Call Us |
| 17 | 60-4030 | BOLT Price: $1.36 |
| 18 | 60-4060 | COVER Price: $9.99 |
| 18 | 72040410 | BOLT Price: Call Us |
| 19 | 102701X | GRIP CRT Price: Call Us |
| 19 | 107-4345 | COVER Price: $545.42 |
| 20 | 60-4000 | SECONDARY CARRIER ASM Price: $2,529.71 |
| 20 | 73220600 | NUT.HEX.3/8-16UNC Price: Call Us |
| 21 | 102156X500 | STAKE DEPTH 16 Price: Call Us |
| 21 | 107-4346 | O-RING Price: $4.76 |
| 22 | 107-4347 | PLUNGER Price: $25.56 |
| 22 | 74930632 | BOLT Price: Call Us |
| 23 | 4440J | HINGE CRT Price: Call Us |
| 23 | 60-3990 | WASHER-THRUST Price: $10.52 |
| 24 | 60-3900 | GEAR Price: $1,114.65 |
| 24 | 72140404 | BOLT Price: Call Us |
| 25 | 60-3930 | RING Price: $0.27 |
| 25 | 6712 | J VINYL CAP TI Price: Call Us 6712 J |
| 26 | 109227X | PAD IDLER TI Price: Call Us |
| 26 | 60-3940 | WASHER Price: $4.07 |
| 27 | 102695X505 | LEVELING SHIELD Price: Call Us |
| 27 | 60-3950 | SPRING Price: $8.11 |
| 28 | 62-6450 | RETAINING RING KIT Price: $152.42 |
