| Ref | Part Number | Description |
|---|
| 1 |
156990 |

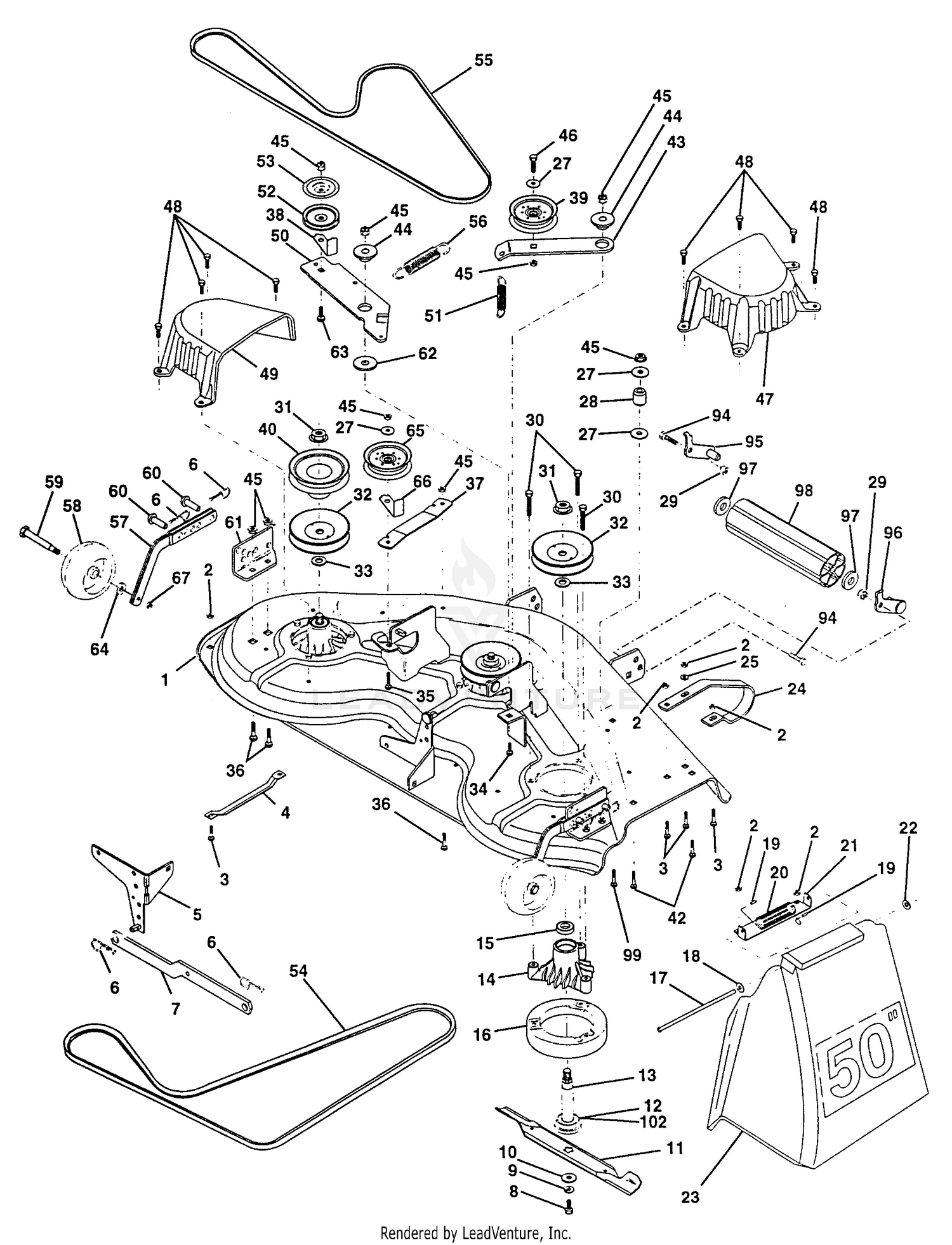

Deck Asm., Mower 50" Vented (AYP part number) Price: Call Us |
| 1 |
3211-17 |
SCREW-HH Price: Call Us |
| 2 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 2 |
73680500 |
Nut, Crownlock 5/16-18 Price: Call Us |
| 3 |
3-1305 |
DISCONTINUED Price: Call Us |
| 3 |
72110506 |
Bolt, Carriage 5/16-18 x 3/4 Price: Call Us |
| 4 |
5-1724 |
DISCONTINUED Price: Call Us |
| 4 |
7631J |
Runner, Mower LH Price: Call Us |
| 5 |
138457 |
Bracket Asm., Sway Bar Price: Call Us |
| 5 |
3-1303 |
DISCONTINUED Price: Call Us |
| 6 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 6 |
4939M |
Retainer, Spring (AYP part number) Price: Call Us |
| 7 |
130832 |
Arm Suspension, Rear (AYP part number) Price: Call Us |
| 7 |
3210-8 |
SCREW-HH Price: $1.02 |
| 8 |
5-1765 |
DISCONTINUED Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 Patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Hvy 3/8 Unplated (AYP part number) Price: Call Us |
| 9 |
3210-10 |
DISCONTINUED Price: Call Us |
| 10 |
140296 |
Washer, Hard Blade Mower Vented Price: Call Us |
| 10 |
5-1771 |
DISCONTINUED Price: Call Us |
| 11 |
5-1763 |
DISCONTINUED Price: Call Us |
| 12 |
129895 |
Bearing, Ball #6204 (Mandrel) Price: Call Us |
| 12 |
5-1775 |
DISCONTINUED Price: Call Us |
| 13 |
5-1780 |
DISCONTINUED Price: Call Us |
| 14 |
137152 |
Housing, Mandrel 50" Vent Price: Call Us |
| 14 |
5-1774 |
DISCONTINUED Price: Call Us |
| 15 |
110485X |
Bearing, Ball Mandrel Price: Call Us |
| 15 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 16 |
140329 |
Stripper, Mower Vented (AYP part number) Price: Call Us |
| 16 |
5-0875 |
DISCONTINUED Price: Call Us |
| 17 |
106735X |
Rod, Hinge Price: Call Us |
| 17 |
3211-15 |
SCREW-HH Price: $7.99 |
| 18 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 18 |
5-1826 |
DISCONTINUED Price: Call Us |
| 19 |
105304X |
Spring, Torsion Deflector Price: Call Us |
| 19 |
5-1950 |
DISCONTINUED Price: Call Us |
| 20 |
123713X |
Spring, Torsion Deflector Price: Call Us |
| 20 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 21 |
137607 |
Bracket, Deflector Price: Call Us |
| 21 |
5-1777 |
DISCONTINUED Price: Call Us |
| 22 |
110452X |
Nut, Push Price: Call Us |
| 22 |
3211-11 |
SCREW-HH Price: $2.24 |
| 23 |
110509X |
Shield, Deflector Mower Price: Call Us |
| 23 |
3211-23 |
Screw Price: Call Us |
| 24 |
136320 |
Runner, RH Price: Call Us |
| 24 |
5-1762 |
DISCONTINUED Price: Call Us |
| 25 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 25 |
5-1761 |
DISCONTINUED Price: Call Us |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
132823 |
Spacer, Spring Stop Idler (AYP part number) Price: Call Us |
| 28 |
5-1760 |
DISCONTINUED Price: Call Us |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 29 |
73800600 |
Nut, Lock Hex W/Wsh 3/8-16 Unc Price: Call Us |
| 30 |
157722 |
Screw Thd Rolling Washer Head (AYP part number) Price: Call Us |
| 30 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 31 |
137266 |
Nut, Flg Top Lock Cntr 9/16 Price: Call Us |
| 31 |
5-1773 |
DISCONTINUED Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel (AYP part number) Price: Call Us |
| 32 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 33 |
129963 |
Washer, Spacer Mower Vented (AYP part number) Price: Call Us |
| 33 |
5-1776 |
DISCONTINUED Price: Call Us |
| 34 |
3219-2 |
NUT-HEX Price: $0.37 |
| 34 |
72140610 |
Bolt, Carriage 3/8-16 x 1-1/4 Price: Call Us |
| 35 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 35 |
72110616 |
Bolt, Carriage 3/8-16 x 2 Price: Call Us |
| 36 |
5-1772 |
DISCONTINUED Price: Call Us |
| 36 |
72110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 Price: Call Us |
| 37 |
137166 |
Stiffener, Arm Idler Price: Call Us |
| 37 |
5-1764 |
DISCONTINUED Price: Call Us |
| 38 |
156085 |
Keeper, Belt Idler (AYP part number) Price: Call Us |
| 38 |
3220-2 |
NUT-JAM Price: $0.50 |
| 39 |
131494 |
Pulley, Idler Flat (AYP part number) Price: Call Us |
| 39 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 40 |
136572 |
Pulley, Driven Price: Call Us |
| 40 |
5-1723 |
DISCONTINUED Price: Call Us |
| 41 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 42 |
282-4 |
SHACKLE Price: $32.98 |
| 42 |
72140506 |
Bolt, Carriage 5/16-18 Unc x 3/4 Price: Call Us |
| 43 |
136460 |
Arm, Idler Secondary Price: Call Us |
| 43 |
3219-3 |
NUT-HEX Price: $0.34 |
| 44 |
122052X |
Spacer, Retainer Price: Call Us |
| 44 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 45 |
3220-3 |
NUT-HJ Price: $0.28 |
| 45 |
73680600 |
Nut, Crownlock 3/8-16 Unc Price: Call Us |
| 46 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 46 |
74760628 |
Bolt, Fin Hex 3/8-16 Unc x 1-3/4 Price: Call Us |
| 47 |
137200 |
Cover, Mandrel RH Price: Call Us |
| 47 |
3-3515 |
DISCONTINUED Price: Call Us |
| 48 |
137729 |
Screw, Thd Roll 1/4-20 x 5/8 Price: Call Us |
| 48 |
23-3860 |
DISCONTINUED Price: Call Us |
| 49 |
136574 |
Cover, Mandrel LH Price: Call Us |
| 49 |
5-1766 |
DISCONTINUED Price: Call Us |
| 50 |
137272 |
Arm, Idler Primary Price: Call Us |
| 50 |
5-1738 |
DISCONTINUED Price: Call Us |
| 51 |
137273 |
Spring, Secondary Price: Call Us |
| 52 |
139245 |
Pulley, Idler V Groove Price: Call Us |
| 53 |
137789 |
Shield, Idler Price: Call Us |
| 54 |
139573 |
V-Belt, Mower Primary Price: Call Us |
| 54 |
3218-3 |
NUT-JAM Price: $0.25 |
| 55 |
144959 |
V-Belt, Mower Secondary Price: Call Us |
| 55 |
3-1310 |
DISCONTINUED Price: $2.00 |
| 56 |
138687 |
Spring, Primary Price: Call Us |
| 56 |
323-8 |
SCREW-HH Price: $1.20 |
| 57 |
136577 |
Bar Asm., Wheel Gauge Price: Call Us |
| 57 |
3-1311 |
DISCONTINUED Price: Call Us |
| 58 |
133957 |
Wheel, Gauge Price: Call Us |
| 58 |
34450 |
Fulcrum Price: Call Us |
| 59 |
137644 |
Bolt, Shoulder (AYP part number) Price: Call Us |
| 59 |
3-3514 |
DISCONTINUED Price: Call Us |
| 60 |
139031 |
Pin, Clevis Price: Call Us |
| 61 |
136573 |
Bracket, Wheel Gauge Price: Call Us |
| 62 |
133943 |
Washer Hardened (AYP part number) Price: Call Us |
| 63 |
72110612 |
Bolt Carriage 3/8-16 x 1-1/2 Price: Call Us |
| 64 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 65 |
151831 |
Pulley Idler Flat Mower (AYP part number) Price: Call Us |
| 66 |
156009 |
Keeper, Belt Idler 50" Vent Price: Call Us |
| 67 |
73930600 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 94 |
74760616 |
Bolt H 3/8-16 x 1 Price: Call Us |
| 95 |
132274 |
Bracket, Asm. Noseroller LH (AYP part number) Price: Call Us |
| 96 |
132273 |
Bracket, Asm. Noseroller RH (AYP part number) Price: Call Us |
| 97 |
19171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: Call Us |
| 98 |
132264 |
Roller, Nose (AYP part number) Price: Call Us |
| 99 |
72110614 |
Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
| 102 |
153390 |
Washer Felt Price: Call Us |
