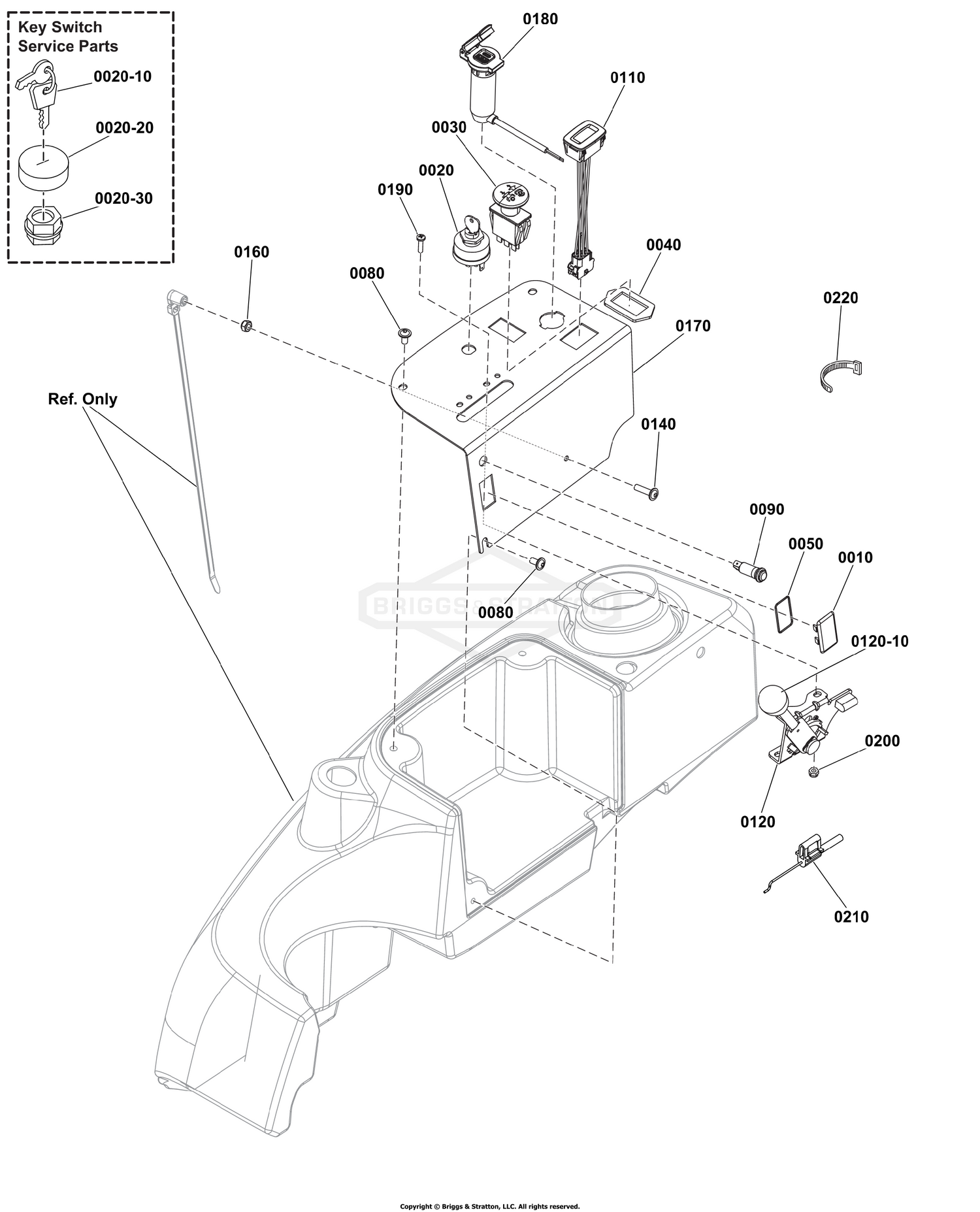

Instrument Control Panel Group - Models with USB Port S/N: 4002403853 and Below

Instrument Control Panel Group - Models with USB Port S/N: 4002403853 and Below

Parts (13)

RefPart NumberDescription
0010 1709188SM PLUG, BLACK PLASTIC Price: $4.62
0030 1722887SM SWITCH-PTO PUSH Price: $30.86
0040 5022222SM RING, SWITCH RETAINER Price: $3.94
0050 5022269SM O-RING, 7/8" ID X 1/1 Price: $2.97
0080 84002228 SCREW, FLANGE Price: $2.22
0090 5103809YP LIGHT, Indicator Price: $27.00
0140 5025299X8YP CAPSCREW Price: $3.61
0160 5025095SM NUT, 1/4-20 HEX NYLON Price: $2.97
0170 84011147 PANEL, Control Panel Price: $20.55
0180 84008798 USB Port Price: $83.68
0190 5025179X6SM SCREW - #10-24 Price: $6.24
0200 5025271FS NUT Price: $3.62
0210 5101073SM CABLE, THROTTLE, 42 Price: $29.84
