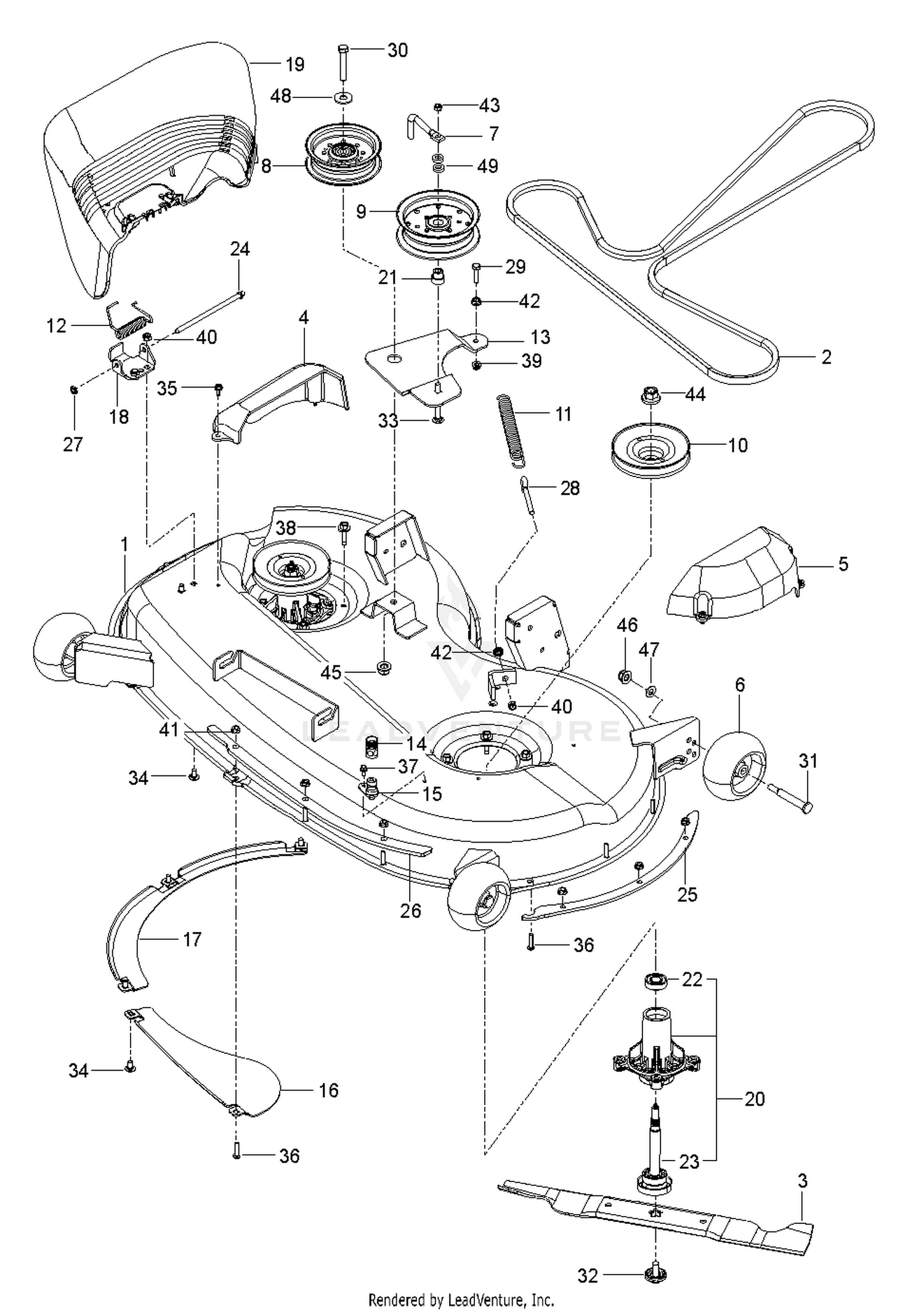

| Ref | Part Number | Description |
|---|
| 1 |
598727201 |
Decks This part replaces 581071001. Price: $299.99 |
| 2 |
539117245 |
V-BELT Price: $54.99 |
| 4 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 5 |
597683301 |
Covers Price: $11.99 |
| 6 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 7 |
522629702 |
Keepers This part replaces 522629701. Price: $3.99 |
| 8 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 9 |
589766102 |
Pulleys This part replaces 589766101. Price: $27.99 |
| 10 |
105-3737 |
OVER FLOW PIPE ASM Price: $66.18 |
| 10 |
588586601 |
PULLEY.MANDREL.46" Price: $29.99 |
| 11 |
582504001 |
SPRING.EXTENSION Price: $6.99 |
| 13 |
594036203 |
ARM CLUTCHING 46" RZ ARM CLUTC This part replaces 588096402. Price: $14.99 |
| 14 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 15 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 16 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 17 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 18 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 19 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 20 |
587125201 |
MANDREL.W/SPCR.BRG.SHRT.NONRVL Price: $49.99 |
| 20 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 21 |
596790301 |
Bushings This part replaces 539112076. Price: $5.99 |
| 22 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 23 |
587125201 |
MANDREL.W/SPCR.BRG.SHRT.NONRVL This part replaces 587255601. Price: $49.99 |
| 24 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 25 |
585317805 |
PLATE.REINFOR.46.SIDEBOLT.X431 Price: $22.99 |
| 26 |
501063502 |
PLATE.PNT.REINF.DECK.46".EDIP Price: $14.99 |
| 27 |
532110452 |
NUT PUSH M Price: $2.99 |
| 28 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 29 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 30 |
596435201 |
Bolts This part replaces 874780740. Price: $2.99 |
| 30 |
98-7654 |
GASKET Price: $8.84 |
| 31 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 32 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 33 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 34 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 35 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 36 |
578296405 |
Screws This part replaces 578296404. Price: $2.99 |
| 37 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 38 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 39 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 40 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 40 |
98-9420 |
OVERFLOW PIPE ASM Price: $3.91 |
| 41 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 42 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 43 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 44 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 45 |
112-0182 |
PIPE-OVERFLOW Price: $3.78 |
| 45 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 46 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 47 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 48 |
596437601 |
Washers This part replaces 539104864. Price: $2.99 |
| 49 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
| 50 |
98-7671 |
CLIP-PIPE Price: $2.39 |
| 60 |
115-3018 |
NOZZLE HOLDER KIT Price: $440.14 |
| 70 |
98-7676 |
GASKET Price: $2.73 |
| 75 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 80 |
98-9653 |
PIPE-INJECTION Price: $69.17 |
| 90 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 100 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 110 |
105-3738 |
PIPE-INJECTION Price: $67.15 |
| 120 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 130 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 140 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 150 |
115-3019 |
PLUG-GLOW Price: $78.63 |
| 160 |
105-3739 |
CORD-PLUG, GLOW Price: $19.85 |
