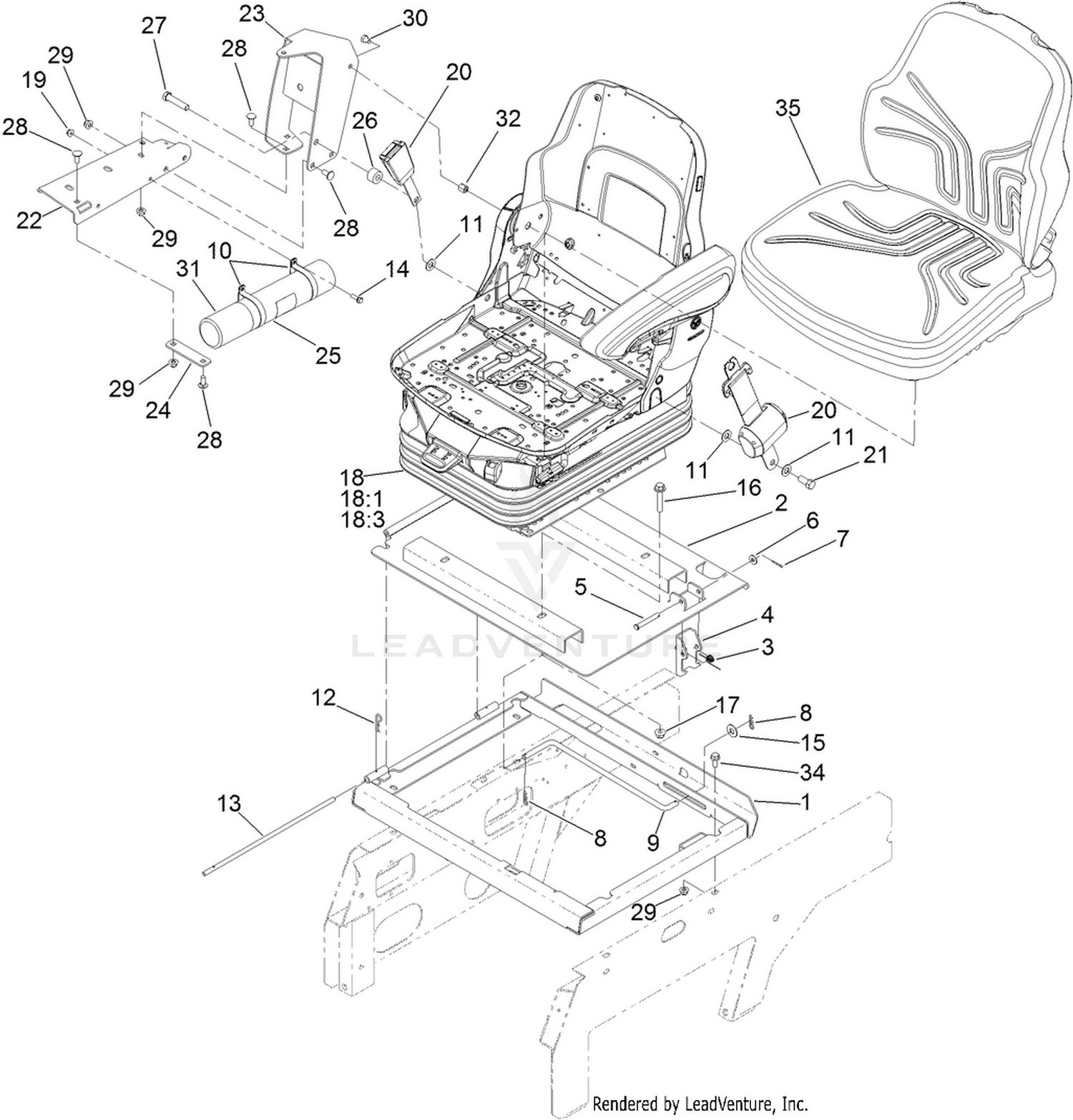

| Ref | Part Number | Description |
|---|
| 1 |
115-4400-03 |
FRAME-SEAT Price: $374.32 |
| 2 |
115-4411-03 |
PLATE-SEAT Price: $408.24 |
| 3 |
104-4821 |
SPRING-TORSION Price: $6.26 |
| 4 |
115-4423-03 |
LATCH-SEAT PLATE Price: $22.94 |
| 5 |
110-0618 |
PIN-CLEVIS Price: $1.42 |
| 6 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 7 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 8 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 9 |
117-4797 |
ROD-SEAT FRAME Price: $23.55 |
| 10 |
107-1865 |
R-Clamp Price: $6.86 |
| 11 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 12 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 13 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 14 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 15 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 16 |
66-9302 |
SCREW-HHF, WHIZ Price: $4.49 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
132-1302 |
SEAT AND SUSPENSION ASM Price: $2,142.69 |
| 19 |
104-7201 |
NUT-HF Price: $0.69 |
| 20 |
110-0413 |
SEATBELT-RETRACTABLE Price: $286.99 |
| 21 |
3212-4 |
SCREW-HH Price: $2.73 |
| 22 |
119-0000-03 |
CHANNEL-SUPPORT Price: $42.04 |
| 23 |
117-4798-03 |
ARM-SUPPORT Price: $114.47 |
| 24 |
112-7449 |
STRAP-SUPPORT Price: $7.18 |
| 25 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 26 |
17-7190 |
SPACER-FINGER Price: $6.51 |
| 27 |
3212-8 |
SCREW-HH Price: $5.69 |
| 28 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 29 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 30 |
108-8646 |
SCREW-HH, LOCK Price: $2.85 |
| 31 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 32 |
112-7405 |
NUT-HEX, COUPLING Price: $33.55 |
| 34 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 35 |
117-5676 |
PREMIUM SEAT ASM Price: $1,764.18 |
