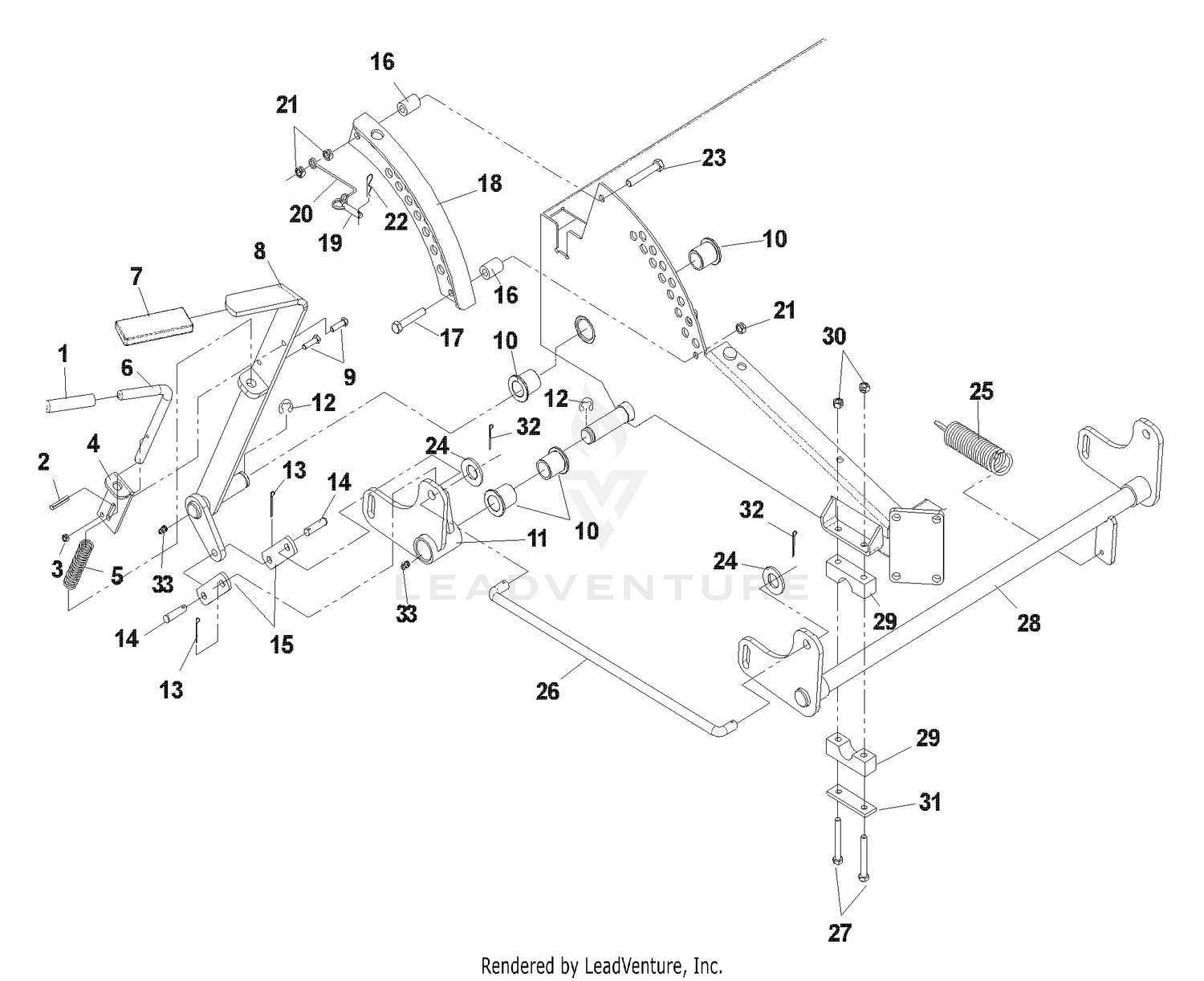

Deck Lift Assembly

Deck Lift Assembly

Parts (79)

RefPart NumberDescription
1 539101050 GRIP Price: $2.99
1 77-5620-01 R/H DECK COVER This part replaces 77-5620. Price: $63.06
2 3256-23 WASHER-PLAIN Price: $0.28
2 539106532 ROLL PIN Price: $2.99
3 539990761 NUT 1/4C CENTER LOCK Price: $2.99
3 HY3225 DISCONTINUED This part replaces 322-5. Price: Call Us
4 539103534 PIN MT, UPPER Price: $22.99
4 62-6520 KNOB Price: $7.79
5 539101058 SPRING Price: $3.99
5 77-5420-03 PULLEY ASM This part replaces 77-5420. Price: $186.20
6 539103533 PIN Price: $22.99
6 59-5190 NUT-PULLEY Price: $126.34
7 127-1843 PLUG-DOME This part replaces 59-5310. Price: Call Us
7 539102515 GRIP Price: $3.99
8 539108862 LIFT LEVER WELDMENT Price: $79.99
8 80-3590 V-BELT Price: $54.22
9 56-4920 PULLEY-IDLER Price: $85.99
9 596230901 Screws This part replaces 539990580. Price: $2.99
10 3256-38 WASHER-FLAT Price: $0.49
10 539101232 BUSHING, FLANGED Price: $11.99
11 121-4600 NUT-HEX This part replaces 3296-59. Price: $0.78
11 539107032 BELLCRANK, RR-BLACK Price: $50.99
12 539101802 E-RING 7/8 Price: $2.99
12 80-3250 SCREW-PIVOT Price: $95.39
13 257-10 WASHER-THRUST Price: $2.29
13 596029501 Pins This part replaces 539990365. Price: $2.99
14 256-206 BUSHING Price: $1.15
14 539977703 CLEVIS PIN 3/8 X 1 1/8 Price: $4.99
15 539102565 LIFT ARM Price: $6.99
15 80-3310 IDLER ARM ASM Price: $145.54
16 37-8880 SPRING-TRACTION Price: $16.99
16 539103543 SPACER Price: $5.99
17 539990588 HCS 3/8C X 2 Price: $3.99
17 80-3560 ROD-THREADED Price: $109.47
18 539106976 ADJUSTMENT PLATE Price: $36.99
18 55-4300 DECAL-WARNING Price: $13.99
19 32128-20 NUT-HF Price: $0.99
19 596917701 Pins This part replaces 539102526. Price: $4.99
20 539105059 LANYARD Price: $4.99
20 80-3S70 Hook Price: Call Us
21 3256-22 WASHER-FLAT Price: $0.39
21 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
22 321-4 SCREW-HH Price: $0.99
22 596273101 Pins This part replaces 539976989. Price: $2.99
23 3296-29 NUT-LOCK, NI Price: $2.09
23 596434201 Bolts This part replaces 539990637. Price: $3.99
24 596933401 Washers This part replaces 539991043. Price: $2.99
25 539102642 SPRING Price: $24.99
25 77-5520 BRACKET WA - RH Price: $140.43
26 3290-451 WASHER-BELLEVILLE Price: $0.25
26 539106891 DECK LIFT LINK Price: $13.99
27 539101721 HCS 5/16C X 2-3/4 Price: $3.99
28 3296-39 NUT-LOCK, NI Price: $2.29
28 539108349 LIFT SHAFT Price: $219.99
29 257-9 WASHER-THRUST Price: $3.29
29 539104808 PILLOW BLOCK Price: $7.99
30 3296-42 NUT-LOCK, NI Price: $0.28
30 596583702 Nuts This part replaces 539990717. Price: $2.99
31 3290-357 NUT-HHF, WHIZ Price: $0.61
31 584392702 REINFORCEMENT.PLATEX431 This part replaces 539104807. Price: $11.99
32 3231-27 SCREW-CARR Price: $0.54
32 539990654 COTTER PIN Price: $2.99
33 77-5560 BRACKET-LH Price: $185.21
34 77-5600-01 SUPPORT COVER ASM This part replaces 77-5600. Price: $23.98
35 32153-1 NUT-LOCK, SIDE This part replaces 32146-18. Price: $0.27
36 80-3550 DEFLECTOR STOP *B Price: $19.02
37 3231-22 SCREW-CARR Price: $0.72
38 80-3450-03 BRACKET This part replaces 80-3450. Price: $57.46
39 80-3230 PIN - SPECIAL Price: $71.87
40 80-3440 SHAFT Price: $56.26
41 80-3200 PIN Price: $39.98
42 3272-11 PIN-COTTER Price: $0.99
43 32128-43 NUT-FLANGE Price: $0.94
44 80-3580 DISCONTINUED Price: Call Us
45 77-6940-03 BUMPER ASM This part replaces 77-6940. Price: $367.04
46 3290-134 SCREW Price: $0.27
47 323-19 SCREW-HH Price: $1.70
48 322-3 SCREW-HH Price: $0.79
49 56-4810-03 PULLEY ASM This part replaces 56-4810. Price: $229.99
