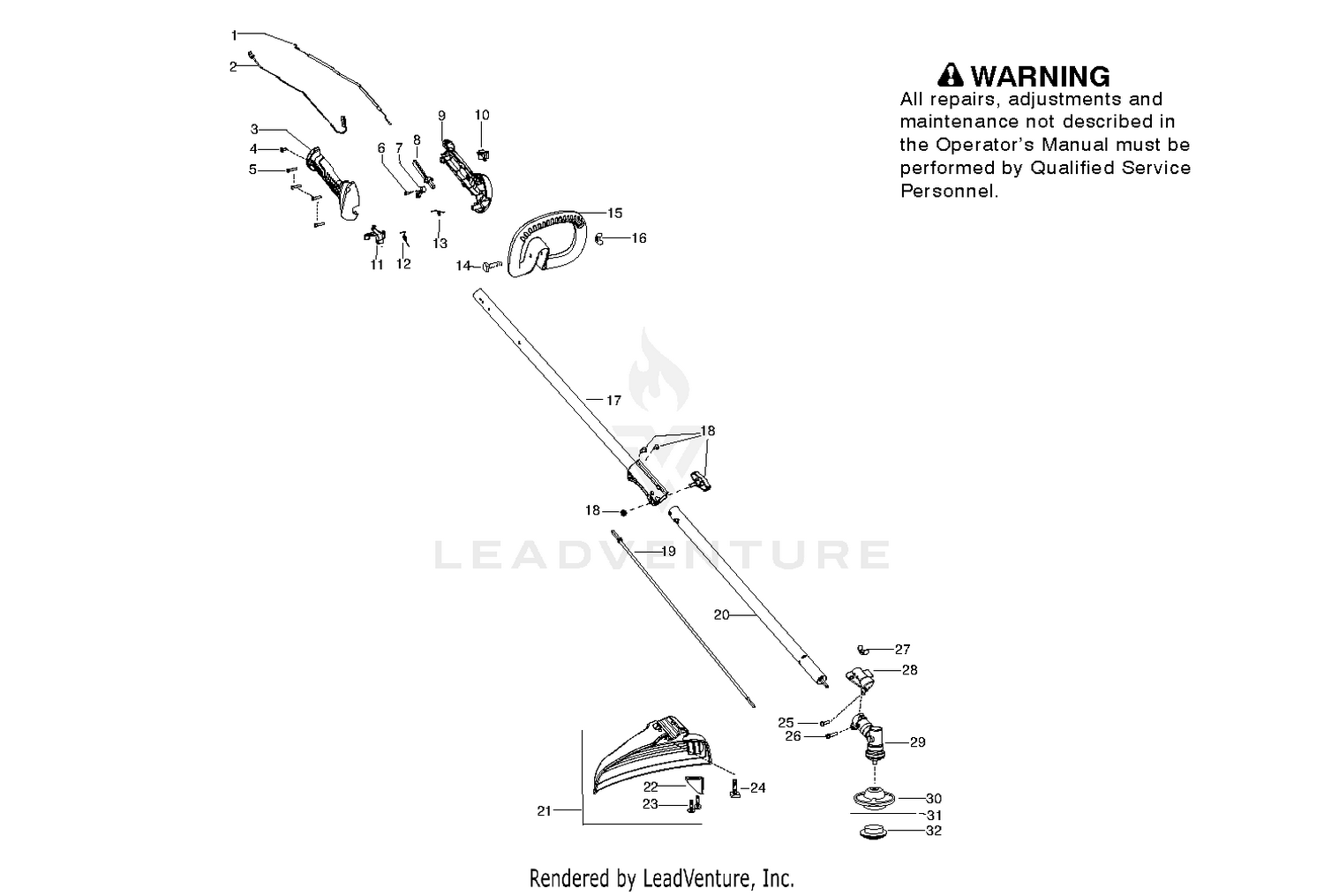

| Ref | Part Number | Description |
|---|
| 1 |
575724301 |
CABLE Price: $2.99 |
| 2 |
4-2348 |
Reel Assy., 5 Blade Price: Call Us |
| 2 |
575724201 |
SWITCH WIRE ASSY Price: $2.99 |
| 3 |
40-9130 |
DISCONTINUED This part replaces 5-5850. Price: Call Us |
| 3 |
577022701 |
THROTTLE HOUSING (RH) Price: $2.99 |
| 4 |
5-5570 |
DISCONTINUED Price: Call Us |
| 4 |
530016469 |
SCREW Price: $1.99 |
| 5 |
40-9120 |
DISCONTINUED This part replaces 5-1320. Price: Call Us |
| 5 |
577107001 |
SCREW Price: $1.99 |
| 6 |
574676601 |
SCREW Price: $3.99 |
| 6 |
8-6680 |
DISCONTINUED Price: Call Us |
| 7 |
5-1286 |
DISCONTINUED Price: Call Us |
| 7 |
576146701 |
ARM This part replaces 575723701. Price: $2.99 |
| 8 |
3257-14 |
KEY Price: $6.19 |
| 8 |
575723801 |
LOCK Price: $2.99 |
| 9 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 9 |
577022801 |
THROTTLE HOUSING (LH) Price: $2.99 |
| 10 |
574675401 |
SWITCH Price: $2.99 |
| 10 |
8-6670 |
LH BRACKET ASM Price: $108.78 |
| 11 |
576919101 |
TRIGGER This part replaces 576675401. Price: $1.99 |
| 11 |
8-6820 |
CHAIN GUARD WA *R Price: $124.30 |
| 12 |
322-6 |
SCREW-HH Price: $0.45 |
| 12 |
576830301 |
TRIGGER SPRING Price: $1.99 |
| 13 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 13 |
575723901 |
SPRING Price: $2.99 |
| 14 |
530015786 |
BOLT 1/4-20 X 2 SQUARE Price: $1.99 |
| 16 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 18 |
545213801 |
ASSY COUPLER BLACK This part replaces 575291801. Price: $8.99 |
| 19 |
545132002 |
Flexshaft - lower Price: $3.99 |
| 22 |
530052286 |
LINE CUTTER Price: $1.54 |
| 23 |
530015814 |
SCREW Price: $1.99 |
| 24 |
530015820 |
BOLT, TYPE 2 Price: $1.99 |
| 25 |
530015775 |
SCREW 8-16 X 9/16 (PLAS Price: $1.99 |
| 26 |
530016014 |
SCREW - CARB. ADAPTOR Price: $1.99 |
| 27 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 28 |
545150701 |
Bracket - Shield SST Price: $2.99 |
| 29 |
530096099 |
GEARBOX 1 Price: $32.99 |
| 30 |
545053902 |
ASSY FIXED LINE HEAD Price: $22.99 |
| 31 |
952711635 |
LINE FOR WT3100.080" PP325.115 Price: $6.95 |
