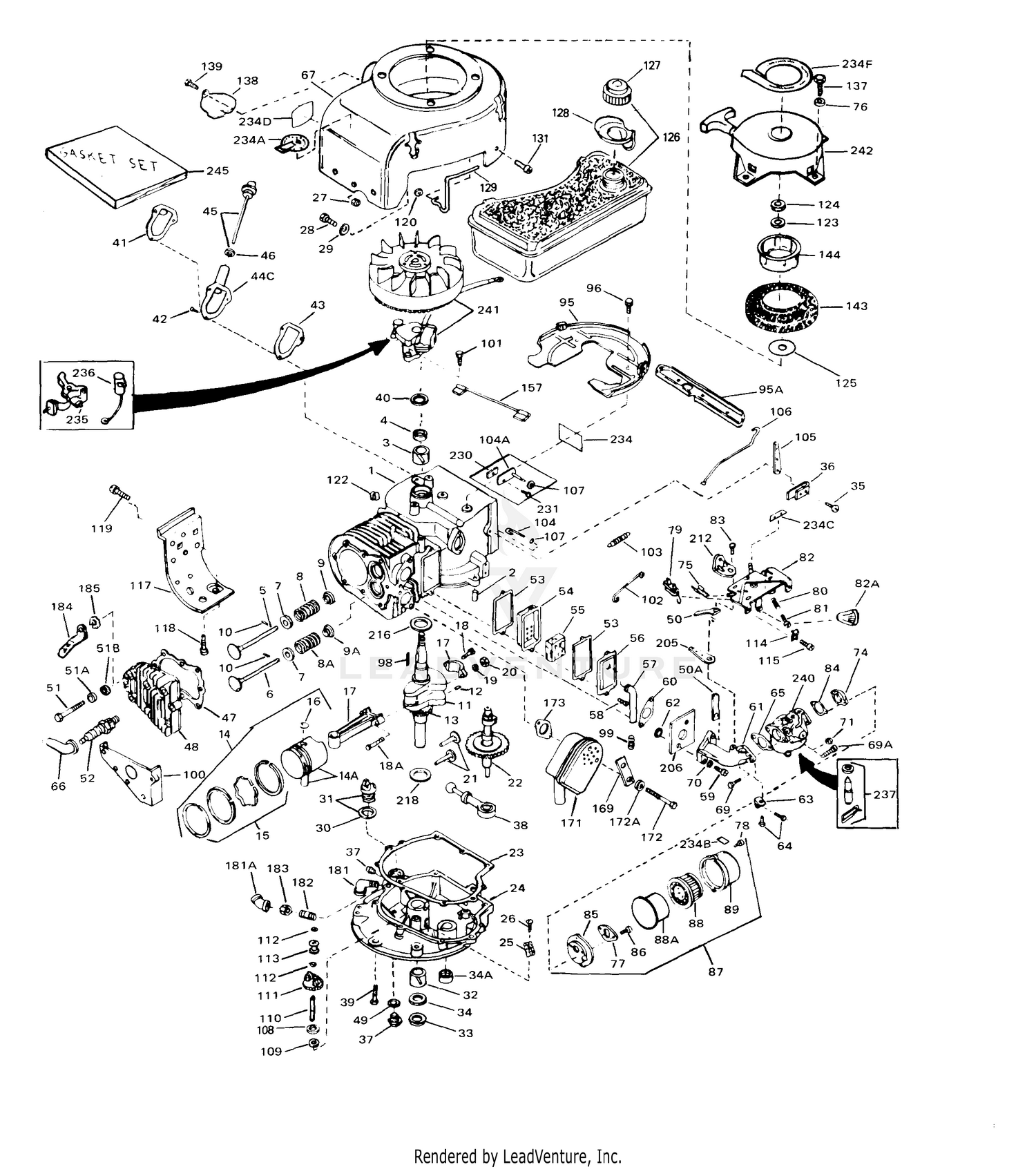

| Ref | Part Number | Description |
|---|
| 1 |
32363 |
CYLINDER Price: Call Us |
| 2 |
27652 |
PIN Price: $1.58 |
| 3 |
31461 |
BUSHING Price: $17.68 |
| 4 |
27876B |
OIL SEAL Price: $8.95 |
| 5 |
27877A |
INT VALVE ST Price: $14.97 |
| 5 |
27880A |
EXH VALVE OS Price: $34.25 |
| 6 |
27878A |
EXH VALVE STD Price: $16.51 |
| 6 |
27880A |
EXH VALVE OS Price: $34.25 |
| 7 |
27882 |
VALVE CAP Price: $1.26 |
| 8 |
27881 |
VALVE SPRING Price: $2.62 |
| 8A |
27881 |
VALVE SPRING Price: $2.62 |
| 9 |
32581 |
VALVE CAP Price: $4.49 |
| 9A |
32581 |
VALVE CAP Price: $4.49 |
| 10 |
20810 |
CAP PIN Price: $1.23 |
| 11 |
29554 |
CRANKSHAFT Price: Call Us |
| 12 |
29783 |
GROOVE PIN Price: $1.26 |
| 13 |
27884 |
GEAR Price: $8.55 |
| 14 |
34500 |
PISTON ASSY Price: Call Us |
| 14 |
34501 |
PISTON ASSY Price: Call Us |
| 14 |
34502 |
PISTON ASSY Price: Call Us |
| 14A |
31794B |
PISTON & PIN Price: Call Us |
| 14A |
31795B |
PISTON & PIN Price: Call Us |
| 14A |
31796B |
PISTON & PIN Price: Call Us |
| 16 |
27888 |
RET RING Price: $1.26 |
| 17 |
31295C |
CONN ROD Price: Call Us |
| 18 |
650662C |
SCREW This part replaces 650662B. Price: $2.60 |
| 18A |
30682 |
SCREW Price: Call Us |
| 18A |
32077 |
SCREW Price: $2.62 |
| 19 |
26073 |
WASHER Price: Call Us |
| 20 |
28264 |
NUT Price: $2.62 |
| 21 |
34034A |
VALVE LIFTER This part replaces 34034. Price: $7.41 |
| 22 |
33157 |
CAMSHAFT Price: $53.68 |
| 23 |
30684 |
GASKET Price: $3.20 |
| 24 |
31471D |
MTG FLANGE This part replaces 31471C. Price: $113.02 |
| 25 |
31355 |
SCREEN Price: $3.73 |
| 26 |
29117 |
SCREW Price: $1.22 |
| 30 |
29673 |
GASKET Price: $1.26 |
| 31 |
27625 |
FILLER PLUG Price: $1.65 |
| 32 |
31462 |
BUSHING Price: Call Us |
| 34 |
27897 |
OIL SEAL Price: $5.95 |
| 34A |
28926 |
OIL SEAL Price: $6.54 |
| 35 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 36 |
31335 |
CLAMP Price: $1.26 |
| 37 |
27642 |
PIPE PLUG Price: $1.26 |
| 38 |
31356 |
OIL PUMP Price: $8.86 |
| 39 |
650451 |
SCREW This part replaces 30564. Price: $1.25 |
| 39 |
650488 |
SCREW Price: $1.25 |
| 41 |
28954 |
COVER Price: Call Us |
| 42 |
28749 |
SCREW Price: Call Us |
| 43 |
28747 |
GASKET Price: Call Us |
| 47 |
28938C |
GASKET This part replaces 28938B. Price: $6.80 |
| 48 |
36446 |
CYL HEAD This part replaces 30938A. Price: $42.56 |
| 49 |
28833 |
GASKET Price: $1.26 |
| 50 |
32704 |
CLIP Price: Call Us |
| 50A |
31560 |
CLIP Price: Call Us |
| 50A |
32704 |
CLIP Price: Call Us |
| 51 |
650694A |
SCREW Price: $2.15 |
| 51 |
650697A |
SCREW Price: $1.25 |
| 51A |
26073 |
WASHER Price: Call Us |
| 51A |
730324 |
WASHER KIT This part replaces 650690. Price: $6.86 |
| 51B |
650691 |
WASHER Price: $1.25 |
| 52 |
33636 |
SPARK PLUG This part replaces 34251. Price: $5.05 |
| 53 |
27896A |
GASKET This part replaces 27896. Price: $1.00 |
| 54 |
28423 |
BREATHER Price: $9.29 |
| 55 |
28424 |
ELEMENT Price: $2.62 |
| 56 |
28425 |
VALVE COVER Price: $5.21 |
| 57 |
35350 |
TUBE This part replaces 27627. Price: $4.57 |
| 58 |
650128 |
SCREW Price: $3.60 |
| 59 |
650378 |
SCREW Price: $1.25 |
| 60 |
27915A |
GASKET This part replaces 27915. Price: $3.95 |
| 61 |
31512 |
INTAKE PIPE Price: Call Us |
| 65 |
26756 |
Gasket Price: $2.95 |
| 67 |
32629B |
BLOWER HSG This part replaces 32629A. Price: Call Us |
| 69 |
6201 |
SCREW Price: $1.26 |
| 70 |
8274 |
WASHER Price: $1.26 |
| 71 |
29752 |
NUT Price: $1.26 |
| 74 |
30936 |
FLANGE Price: Call Us |
| 76 |
27656 |
WASHER Price: Call Us |
| 76 |
650168 |
WASHER Price: $1.25 |
| 77 |
30767 |
SPACER Price: $2.62 |
| 78 |
650152 |
SCREW Price: $1.60 |
| 79 |
610973 |
TERMINAL Price: $2.60 |
| 80 |
31342 |
COMP SPRING Price: $3.95 |
| 81 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 82 |
32181A |
CONTROL ASSY Price: $15.14 |
| 83 |
30200 |
SCREW Price: $3.25 |
| 84 |
27272A |
GASKET This part replaces 27272. Price: $1.18 |
| 85 |
31691 |
BRACKET Price: $15.95 |
| 86 |
651081 |
SCREW This part replaces 28820. Price: $2.89 |
| 87 |
730127 |
AIR CLEANER Price: $33.14 |
| 88 |
30727 |
AIR CLEANER Price: $5.95 |
| 89 |
31715 |
CLEANER BODY Price: $15.02 |
| 95 |
37861 |
BAFFLE This part replaces 29536. Price: $8.03 |
| 96 |
650561 |
SCREW Price: $1.25 |
| 98 |
30884 |
KEY Price: $2.00 |
| 99 |
31778 |
SPRING Price: Call Us |
| 100 |
30939B |
COVER This part replaces 30939A. Price: $2.62 |
| 101 |
650489 |
SCREW Price: Call Us |
| 101 |
650516 |
SCREW Price: $1.18 |
| 102 |
32582 |
GOV LINK Price: $1.26 |
| 103 |
31361 |
GOV SPRING Price: $1.18 |
| 104 |
30669 |
GOVERNOR ROD Price: $5.21 |
| 105 |
31357 |
GOV LEVER Price: $1.26 |
| 106 |
31823 |
GOV LINK Price: $1.26 |
| 107 |
28277 |
WASHER Price: $1.26 |
| 109 |
31707A |
SPACER Price: $1.26 |
| 110 |
30668 |
GOV SHAFT Price: $1.26 |
| 111 |
30591 |
GEAR Price: $9.93 |
| 112 |
29193 |
RET RING Price: $1.26 |
| 113 |
30588A |
GOV SPOOL Price: $1.26 |
| 114 |
27793 |
CLIP Price: $1.26 |
| 115 |
28942 |
SCREW Price: $0.88 |
| 117 |
27928 |
EXTENSION Price: Call Us |
| 118 |
650128 |
SCREW Price: $3.60 |
| 119 |
30063 |
SCREW This part replaces 30688. Price: $1.26 |
| 120 |
650557 |
NUT Price: Call Us |
| 122 |
27275 |
CLIP This part replaces 33685. Price: $1.26 |
| 123 |
650815 |
WASHER Price: $1.25 |
| 124 |
8116 |
NUT Price: $1.23 |
| 126 |
32584 |
FUEL TANK Price: Call Us |
| 127 |
33032 |
FUEL CAP Price: $5.31 |
| 127 |
34210 |
FUEL CAP Price: $5.77 |
| 131 |
29747C |
SCREW/LOCKWASHER ASSEMBLY This part replaces 29747A. Price: $1.26 |
| 137 |
29716 |
SCREW Price: $0.91 |
| 137 |
650601 |
SCREW Price: Call Us |
| 143 |
590417 |
SCREEN Price: $5.16 |
| 144 |
37966 |
STARTER CUP This part replaces 32125. Price: $7.34 |
| 157 |
35349 |
GROUND WIRE This part replaces 28468. Price: $3.20 |
| 164 |
33323 |
SCREEN Price: $9.05 |
| 169 |
31588 |
LOCK PLATE Price: $2.00 |
| 171 |
28269 |
MUFFLER Price: Call Us |
| 172 |
30196 |
SCREW Price: $1.26 |
| 172 |
6021A |
SCREW Price: $1.26 |
| 172 |
650689 |
SCREW Price: Call Us |
| 172 |
650695A |
SCREW-NLA Price: Call Us |
| 172 |
650696 |
SCREW Price: $2.60 |
| 172 |
650697A |
SCREW Price: $1.25 |
| 172A |
8274 |
WASHER Price: $1.26 |
| 173 |
35865 |
GASKET This part replaces 27930. Price: $3.95 |
| 181 |
29573 |
ELBOW Price: Call Us |
| 184 |
30747 |
STOP LEVER Price: $4.95 |
| 185 |
650890 |
WASHER This part replaces 16645. Price: $1.25 |
| 206 |
31873 |
BAFFLE Price: Call Us |
| 216 |
650625 |
WASHER Price: $2.60 |
| 234 |
36261 |
DECAL This part replaces 34346. Price: Call Us |
| 234A |
31478 |
DECAL Price: Call Us |
| 234A |
31517 |
DECAL Price: Call Us |
| 234A |
32173 |
DECAL Price: Call Us |
| 234A |
550223 |
DECAL--Discontinued This part replaces 34316. Price: Call Us |
| 234B |
31752 |
DECAL Price: Call Us |
| 234D |
32130 |
DECAL Price: Call Us |
| 234D |
36261 |
DECAL This part replaces 31490. Price: Call Us |
| 235 |
30547A |
BREAKER SET Price: $12.55 |
| 236 |
30548B |
CONDENSER Price: $8.40 |
| 237 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 240 |
631800A |
SERVICE CARB This part replaces 631509. Price: $81.98 |
| 241 |
610689A |
MAGNETO Price: Call Us |
| 242 |
590420A |
STARTER This part replaces 590420. Price: $42.85 |
