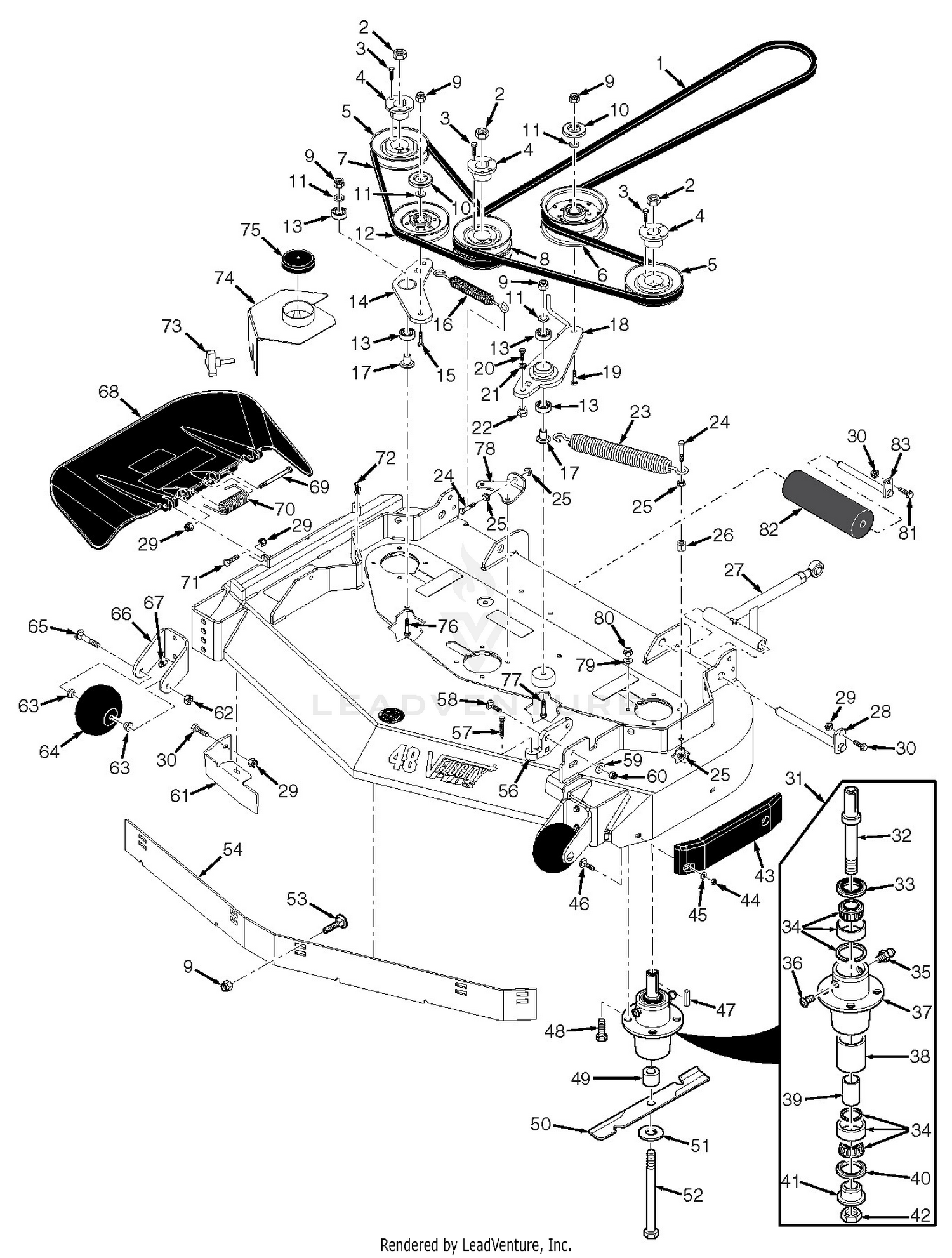

| Ref | Part Number | Description |
|---|
| 1 |
483241 |
Belt, Deck Drive Price: Call Us |
| 1 |
483242 |
Belt, Deck Drive Price: Call Us |
| 2 |
04020-09 |
Nut, 5/8-11 UNC Price: Call Us |
| 3 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Price: Call Us |
| 4 |
48926 |
Tapered Hub, 1.125" Bore Price: Call Us |
| 5 |
483282 |
Pulley, 5.13" Dia. Price: Call Us |
| 5 |
483284 |
Pulley, 5.73" Dia. Price: Call Us |
| 6 |
483210 |
Pulley, 5" Idler Price: Call Us |
| 7 |
483239 |
Belt, RH Deck Drive Price: Call Us |
| 7 |
483240 |
Belt, RH Deck Drive Price: Call Us |
| 8 |
483283 |
Pulley, 5.232" Dia. Price: Call Us |
| 8 |
483285 |
Pulley, 5.832" Dia. Price: Call Us |
| 9 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 10 |
424367 |
Dust Shield Price: Call Us |
| 11 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 12 |
48181 |
Pulley, Idler Price: Call Us |
| 13 |
48224 |
Bearing Price: Call Us |
| 15 |
04001-45 |
Bolt, Hex Head 3/8-16 x 2" Price: Call Us |
| 16 |
483247 |
Spring, RH Deck Price: Call Us |
| 17 |
43689 |
Pivot, Idler Price: Call Us |
| 19 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 20 |
04001-27 |
Bolt, Hex Head 7/16-14 x 1" Price: Call Us |
| 21 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 22 |
43686 |
Boss, Spring Anchor - LH Price: Call Us |
| 23 |
483246 |
Spring, LH Deck Price: Call Us |
| 24 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Price: Call Us |
| 25 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 26 |
43063 |
Spacer Price: Call Us |
| 27 |
462463 |
Pusharm Assy., LH Price: Call Us |
| 27 |
462464 |
Pusharm Assy., RH Price: Call Us |
| 28 |
451240 |
Rod Weldment, Pusharm Price: Call Us |
| 29 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 30 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 31 |
461663 |
Spindle Assembly Price: Call Us |
| 32 |
43589 |
Shaft, Spindle Price: Call Us |
| 33 |
481024 |
Seal, Top Price: Call Us |
| 34 |
481022 |
Bearing Assembly Price: Call Us |
| 35 |
48114-04 |
Grease Fitting Price: Call Us |
| 36 |
48677 |
Relief Fitting, Spindle Price: Call Us |
| 37 |
43644 |
Spindle Housing Price: Call Us |
| 38 |
43312 |
Spacer, Outside Price: Call Us |
| 39 |
43296 |
Spacer, Inside Price: Call Us |
| 40 |
481025 |
Seal, Bottom Price: Call Us |
| 41 |
43296 |
Spindle Bushing Price: Call Us |
| 42 |
481035 |
Nut, Special 1-1/16 - 18 Price: Call Us |
| 43 |
483176 |
Wear Pad Price: Call Us |
| 44 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 45 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 Price: Call Us |
| 46 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 47 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 48 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8 Price: Call Us |
| 49 |
43590 |
Spacer, Spindle Bottom Price: Call Us |
| 50 |
482877 |
Cutter Blade, 16-1/2" Price: Call Us |
| 50 |
482878 |
Cutter Blade, 18" (52H) Price: Call Us |
| 51 |
04043-06 |
Flatwasher, 5/8-.688 x 1.75 x .134 HD Price: Call Us |
| 52 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 53 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 54 |
424839 |
Baffle, Flange - 48V Price: Call Us |
| 54 |
424840 |
Baffle, Flange - 52V Price: Call Us |
| 55 |
462501 |
Cutter Deck w/Decals Price: Call Us |
| 55 |
462502 |
Cutter Deck w/Decals Price: Call Us |
| 56 |
461929 |
Lever Assy., Deck Level Price: Call Us |
| 57 |
483167 |
Bolt, Deck Adjustment Price: Call Us |
| 58 |
04003-40 |
Bolt, Carriage 7/16-14 x 1-1/4" Price: Call Us |
| 59 |
04040-07 |
Flatwasher, 1/2-.531 x 1.062 x .095 Price: Call Us |
| 60 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 61 |
424677 |
Baffle, Turbo Price: Call Us |
| 62 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 63 |
48100-15 |
Bushing, .376 ID Oilite Price: Call Us |
| 64 |
481632 |
Wheel, Anti-Scalp Price: Call Us |
| 65 |
04003-26 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 66 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 67 |
04017-27 |
Bolt, Serrated Flange 3/8-16 x 1" Price: Call Us |
| 68 |
461844 |
Discharge Chute Assy. Price: Call Us |
| 68 |
461845 |
Discharge Chute Assy. Price: Call Us |
| 69 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 70 |
483378 |
Spring, Discharge Chute Price: Call Us |
| 71 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 72 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 73 |
481625-01 |
Wing Nut, 3/8-16 Price: Call Us |
| 74 |
462479 |
Belt Cover Assy., LH Price: Call Us |
| 74 |
462480 |
Belt Cover Assy., RH Price: Call Us |
| 74 |
462481 |
Belt Cover Assy., LH Price: Call Us |
| 74 |
462482 |
Belt Cover Assy., RH Price: Call Us |
| 75 |
484368 |
Cap, Spindle 61" Only Price: Call Us |
| 76 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 77 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 78 |
424376 |
Anchor Bracket, Spring Price: Call Us |
| 78 |
424377 |
Anchor Bracket, Spring Price: Call Us |
| 79 |
04030-03 |
Lockwasher, 5/16" Spring Price: Call Us |
| 80 |
04021-22 |
Nut, Elastic Stop 5/16-18 Grade 8 Price: Call Us |
| 81 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 82 |
48038 |
Guide Roller Price: Call Us |
