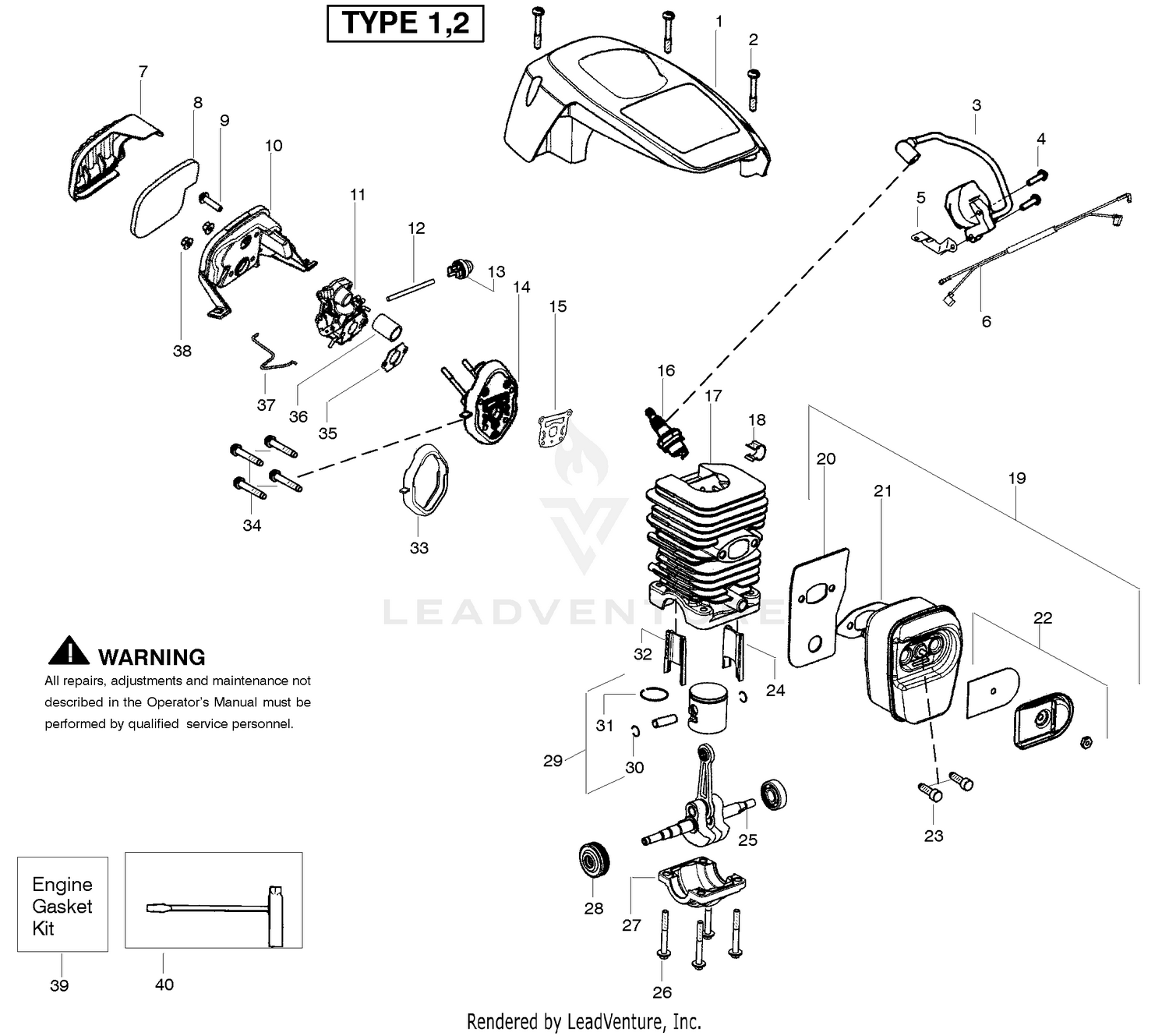

| Ref | Part Number | Description |
|---|
| 1 |
353-725 |
DISCONTINUED Price: Call Us |
| 2 |
530016153 |
Screw Price: $1.99 |
| 3 |
353-724 |
DISCONTINUED Price: Call Us |
| 3 |
530039198 |
Module-Ignition Price: $29.99 |
| 4 |
530016432 |
Screw Price: $1.99 |
| 5 |
530047442 |
Strap-Ground Price: $1.99 |
| 6 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 7 |
530058687 |
Cover-Air Filter Price: $4.99 |
| 8 |
530057925 |
Filter-Air Price: $0.99 |
| 9 |
530016425 |
Screw Price: $1.99 |
| 10 |
353-733 |
SPACER-BONNET Price: $41.01 |
| 10 |
530057892 |
Housing-Air Filter Price: $4.99 |
| 11 |
545070601 |
Carburetor Zama W-26 Price: $27.99 |
| 12 |
353-732 |
SLEEVE-DETENT Price: $113.02 |
| 12 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 13 |
353-731 |
BALL Price: $12.95 |
| 13 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 14 |
353-730 |
SPRING Price: $18.22 |
| 15 |
353-729 |
DETENT STUD Price: $179.48 |
| 15 |
530071894 |
Gasket-cyl. o-ring (kit) Price: $6.99 |
| 16 |
353-728 |
SLEEVE Price: $77.42 |
| 16 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 17 |
353-727 |
BONNET-SPECIAL Price: $105.32 |
| 18 |
353-726 |
DISCONTINUED Price: Call Us |
| 18 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 20 |
353-311 |
Stop Collar Price: Call Us |
| 20 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 21 |
353-530 |
DISCONTINUED Price: Call Us |
| 21 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 22 |
353-313 |
DISCONTINUED Price: Call Us |
| 22 |
545006056 |
Kit-Spark Arrestor Price: $6.99 |
| 23 |
353-314 |
DISCONTINUED Price: Call Us |
| 23 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 24 |
353-312 |
DISCONTINUED Price: Call Us |
| 24 |
545015301 |
Insert-Left (black) Cyl. Price: $2.99 |
| 25 |
52-5900 |
SCREW This part replaces 353-315. Price: $26.40 |
| 25 |
545112901 |
Assy-Crankshaft/Rod Price: $49.99 |
| 26 |
353-310 |
DISCONTINUED Price: Call Us |
| 26 |
530016417 |
Bolt Price: $1.99 |
| 27 |
353-717 |
DISCONTINUED Price: Call Us |
| 27 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 28 |
32153-11 |
NUT-LOCK This part replaces 353-343. Price: $3.99 |
| 28 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 29 |
237-80 |
O-RING Price: $6.10 |
| 30 |
353-721 |
PLUG Price: $44.12 |
| 30 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 31 |
545160401 |
Ring-Piston Price: $2.99 |
| 32 |
545015401 |
Insert-Right (gray) Cyl. Price: $2.99 |
| 33 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 34 |
353-720 |
DISCONTINUED This part replaces 353-718. Price: Call Us |
| 34 |
530016426 |
Screw Price: $1.99 |
| 35 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 36 |
530057926 |
Tube-Intake Price: $1.99 |
| 37 |
353-330 |
SHIM (.010) Price: $3.60 |
| 37 |
530057909 |
Wire-Throttle Price: $1.99 |
| 38 |
353-329 |
SHIM (.020) Price: $2.10 |
| 38 |
530016101 |
Nut-Carb. Price: $1.99 |
| 39 |
353-328 |
SHIM (.040) Price: $3.53 |
| 40 |
353-719 |
DISCONTINUED Price: Call Us |
| 40 |
530031163 |
Bar Wrench This part replaces 530031189. Price: $4.99 |
| 41 |
353-334 |
CAP-RELIEF Price: $55.48 |
| 42 |
353-722 |
DISCONTINUED Price: Call Us |
| 47 |
353-723 |
DISCONTINUED This part replaces 353-738. Price: Call Us |
| 48 |
353-737 |
BALL-CHECK Price: $14.19 |
| 49 |
353-736 |
DISCONTINUED Price: Call Us |
| 51 |
353-735 |
DISCONTINUED Price: Call Us |
| 53 |
353-324 |
HANDLE BRACKET Price: $107.74 |
| 58 |
353-307 |
DISCONTINUED Price: Call Us |
