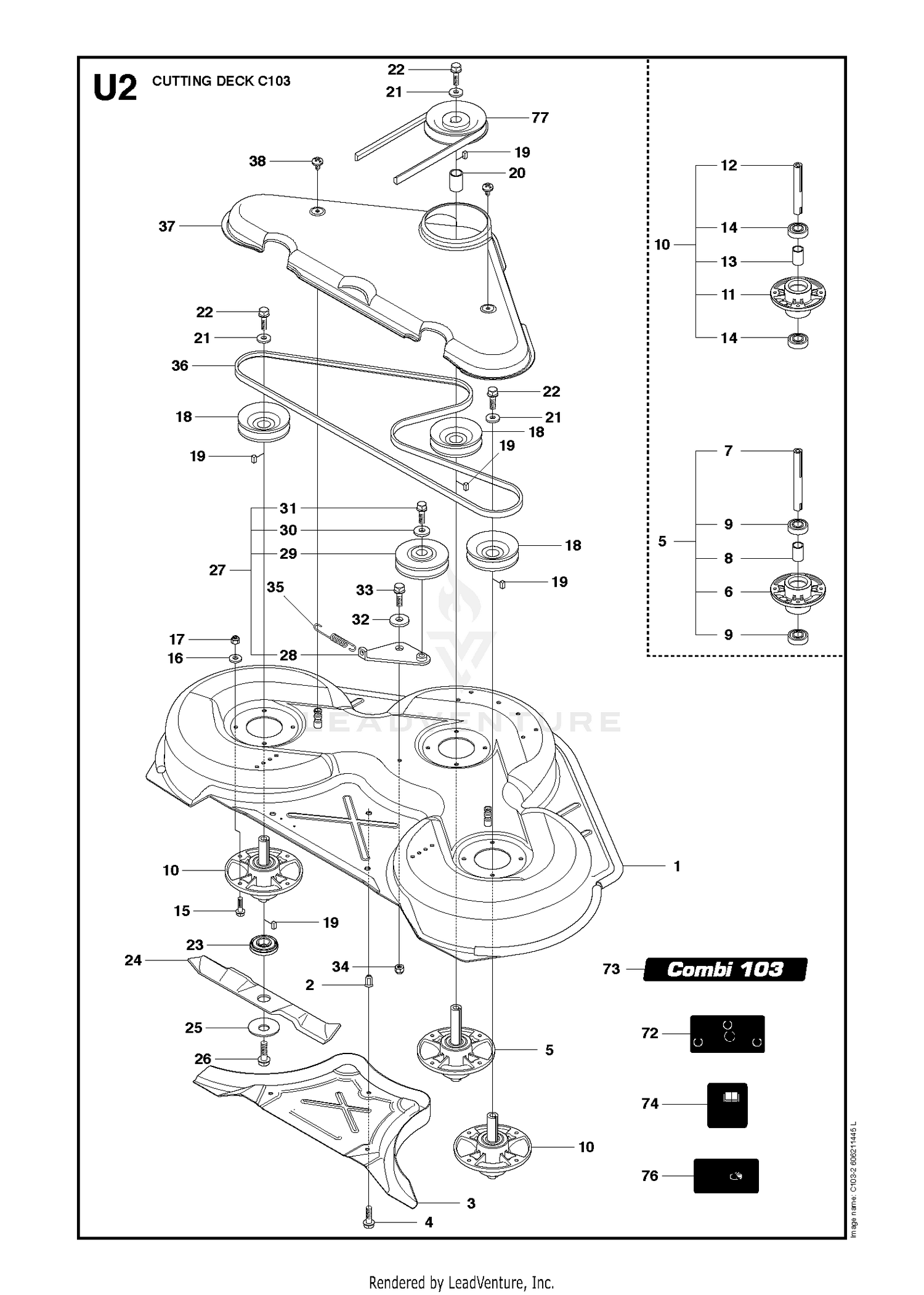

103CM CUTTING DECK
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-5973 | RH SIDE PLATE ASM This part replaces 131-0523. Price: $405.77 |
| 1 | 504569805 | Price: Call Us |
| 2 | 137-5970 | LH SIDE PLATE ASM This part replaces 131-0522. Price: $405.77 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 544449201 | PLUG Price: $64.99 |
| 4 | 506570104 | BOLT Price: $4.99 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 5 | 576384103 | Price: Call Us |
| 6 | 576384201 | BEARING HOUSING Price: $29.99 |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 576384303 | Price: Call Us |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 8 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 9 | 110-4079 | SPRING-COMPRESSION Price: $13.57 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 11 | 576384201 | BEARING HOUSING Price: $29.99 |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 12 | 576384302 | SHAFT Price: $21.99 |
| 13 | 115-2007 | ROD-SPRING Price: $34.97 |
| 13 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 14 | 738230434 | BEARING Price: $17.99 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 107-3258 | FRAME Price: $331.61 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 20 | 544068003 | SPACING SLEEVE Price: $12.99 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 130-8094 | WASHER-PLAIN Price: $5.25 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 25 | 107-7433 | CARRIER FRAME ASM Price: $484.72 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 26 | 302-5 | FITTING-GREASE Price: $0.59 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 31 | 506558302 | BOLT Price: $3.99 |
| 32 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 589530601 | BELT Price: $54.99 |
| 37 | 544096103 | BELT COVER C103 HUSQ - GREY This part replaces 544096101. Price: $74.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 544238103 | DECAL Price: $4.99 |
| 74 | 506929001 | DECAL Price: $3.99 |
| 76 | 574510001 | DECAL Price: $2.99 |
| 77 | 506778601 | PULLEY Price: $49.99 |
