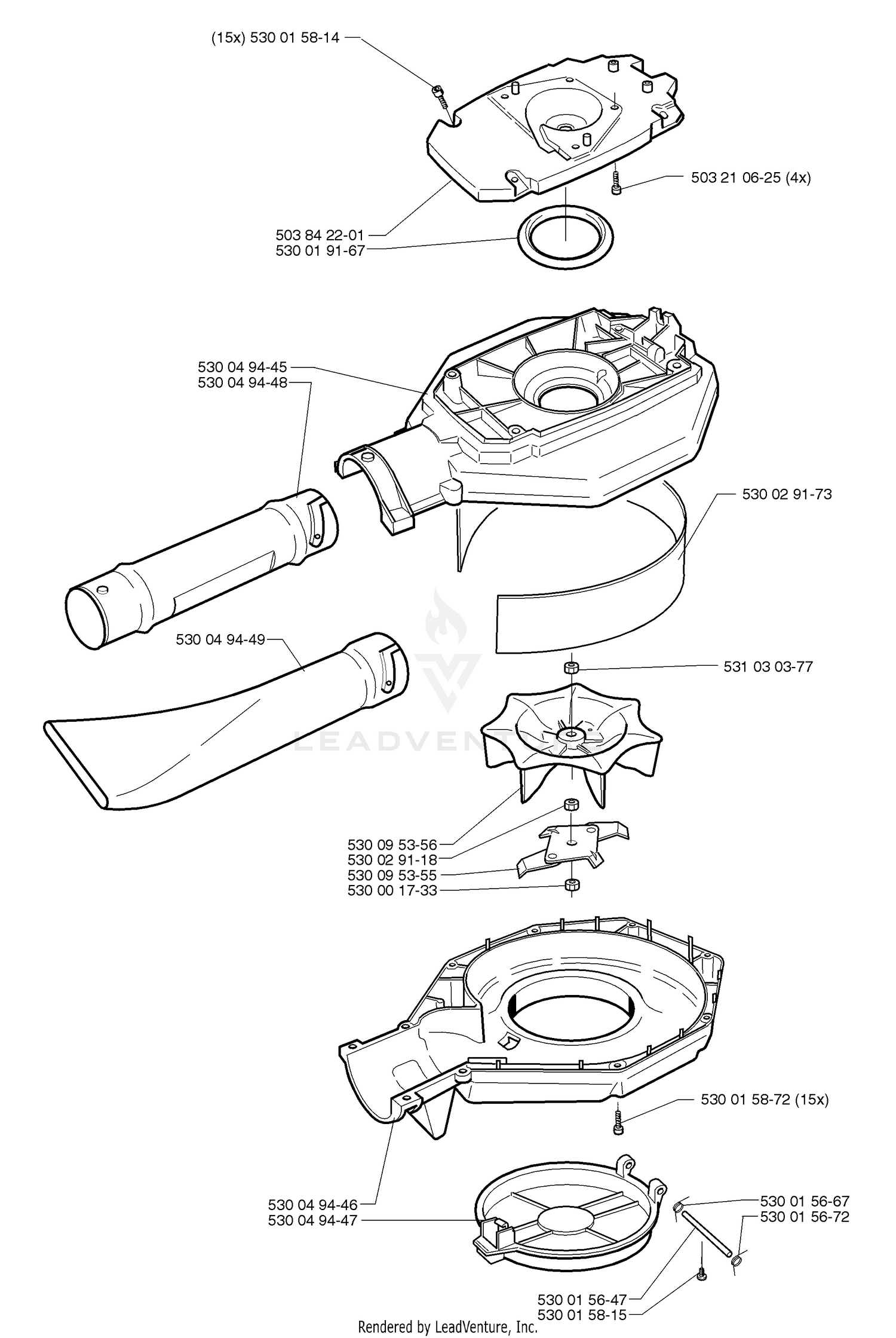

Casing Assembly

Casing Assembly

Parts (19)

RefPart NumberDescription
503210625 503214925 SCREW This part replaces 503210625. Price: $3.99
503842201 503842201 FAN MOUNT Price: $30.36
530001733 530001733 NUT Price: $4.75
530015647 530015647 PIN-PIVOT Price: $1.67
530015667 530015667 SPRING-TORSION (RIGHT) Price: $1.41
530015672 530015672 SPRING-TORSION (LEFT) Price: $2.99
530015814 530015814 SCREW Price: $0.17
530015872 530015814 SCREW This part replaces 530015872. Price: $0.17
530019167 530019167 O-RING SEAL Price: $2.99
530029118 530047077 ASSY-IMPELLER This part replaces 530029118. Price: $7.70
530029173 530029173 BAND-BLOWER HSG Price: $2.25
530049445 530049445 UPPER HOUSING Price: $4.99
530049446 530047736 BLOWER HOUSING ASSY - BLACK This part replaces 530049446. Price: $17.99
530049447 530049447 INLET DOOR Price: $6.67
530049448 530049448 BLOWER TUBE Price: $7.99
530049449 530049449 BLOWER NOZZLE Price: $5.87
530095355 530095355 MULCH BLADE Price: $4.99
530095356 530047702 IMPELLAR ASSY This part replaces 530095356. Price: $11.99
531030377 531030377 SPACER Price: $1.67
