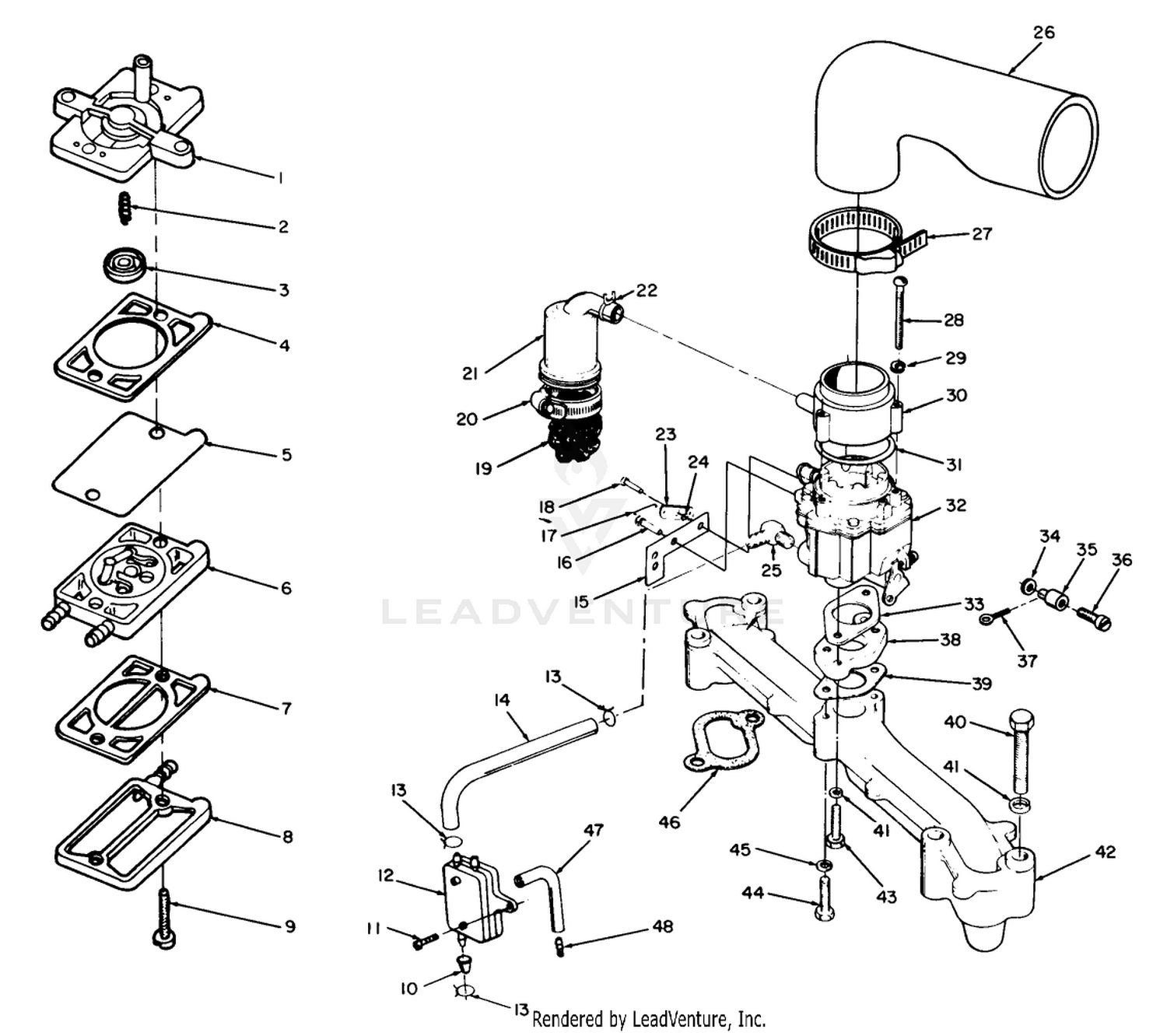

| Ref | Part Number | Description |
|---|
| 1 |
149-1324 |
Base, Pump Price: Call Us |
| 2 |
142-0545 |
Spring, Fuel Pump Price: $0.59 |
| 3 |
142-0552 |
Plate, Drive-Fuel Pump Price: Call Us |
| 4 |
142-0541 |
Gasket-Pump Cover Price: $0.55 |
| 5 |
135-6320 |
SCREW-HHF This part replaces 142-0555. Price: $0.85 |
| 6 |
142-0537 |
Valve Assembly, Reed-Fuel Pump (Includes Cap Clamp) Price: Call Us |
| 7 |
149-1323 |
Gasket-Cover to Valve Assy. Price: Call Us |
| 8 |
149-1326 |
Cover-Pump Price: Call Us |
| 9 |
142-0540 |
Screw-Pump Cover to Body Price: $0.73 |
| 10 |
149-1321 |
Cap, Fuel Outlet Price: Call Us |
| 11 |
815-0555 |
Screw, Tapping Pan Hd. Price: Call Us |
| 12 |
149-1322 |
Pump, Fuel-Vacuum Pluse (Incl. Ref. #1-9) Price: Call Us |
| 13 |
503-0301 |
Clamp, Hose Price: Call Us |
| 14 |
503-0874 |
Hose, Fuel (13") Price: Call Us |
| 15 |
153-0524 |
Bracket, Cable Choke Price: Call Us |
| 16 |
821-0002 |
Screw, Cap Hex Washer Hd. Price: Call Us |
| 17 |
153-0500 |
Link, Choke Price: Call Us |
| 18 |
815-0480 |
Screw, Shoulder Price: Call Us |
| 19 |
123-1428 |
Filter, Breather Tube Price: Call Us |
| 20 |
503-01071 |
Clamp, Breather Tube Price: Call Us |
| 21 |
123-1539 |
Tube, Crankcase Breather Price: Call Us |
| 22 |
503-0171 |
Camp, Hose Price: Call Us |
| 23 |
153-0523 |
Swivel, Choke Price: Call Us |
| 24 |
854-0010 |
Washer, Lock Internal Tooth Price: Call Us |
| 25 |
502-0313 |
Elbow-Hose Price: Call Us |
| 26 |
140-1428 |
Elbow Air Inlet Price: Call Us |
| 27 |
503-0274 |
Clamp Hose Price: Call Us |
| 28 |
813-0106 |
Screw-Machine Round Hd. Price: Call Us |
| 29 |
850-0030 |
Washer-Lock Price: Call Us |
| 30 |
140-1714 |
Adapter, Air Cleaner Price: Call Us |
| 31 |
509-0145 |
Seal, O-Ring Price: Call Us |
| 32 |
146-0386 |
Carburetor, Complete (Incl. Mounting Gasket) Price: Call Us |
| 33 |
154-0733 |
Gasket Carburetor Mounting Price: Call Us |
| 34 |
526-0140 |
Washer Price: Call Us |
| 35 |
152-0155 |
Swivel Price: Call Us |
| 36 |
815-0104 |
Screw Price: Call Us |
| 37 |
516-0059 |
Cotter Pin Price: Call Us |
| 38 |
154-1977 |
Adapter, Carburetor Price: Call Us |
| 39 |
145-0438 |
Gasket, Adapter to Manifold Price: Call Us |
| 40 |
800-0033 |
Screw, Cap-Hex Head Price: Call Us |
| 41 |
850-0045 |
Washer, Lock-Spring Price: Call Us |
| 42 |
154-2206 |
Manifold, Intake Price: Call Us |
| 43 |
800-0027 |
Screw Cap-Hex Hd. Price: Call Us |
| 44 |
800-0023 |
Screw Cap-Hex Hd. Price: Call Us |
| 45 |
850-0040 |
Washer, Lock Price: Call Us |
| 46 |
154-1744 |
Gasket, Manifold to Block Price: Call Us |
| 47 |
503-0663 |
Hose, Fuel Pump Vacuum Price: Call Us |
