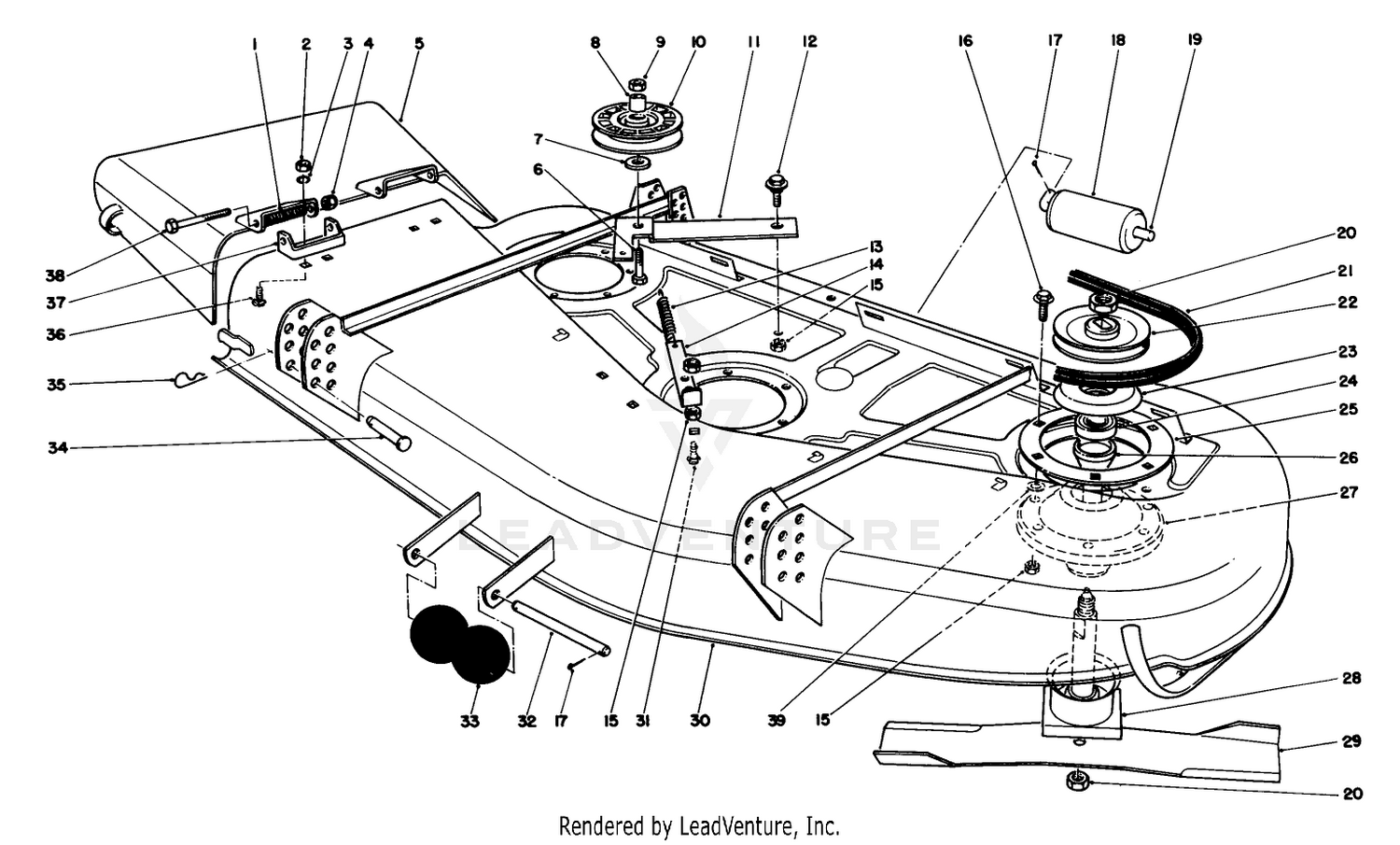

| Ref | Part Number | Description |
|---|
| 1 |
40-6230 |
SPRING Price: $37.99 |
| 2 |
3217-6 |
NUT-HEX Price: $1.19 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 4 |
3296-5 |
NUT-HEX Price: $3.09 |
| 5 |
13-3949 |
DEFLECTOR ASM This part replaces 40-6200. Price: $214.07 |
| 6 |
323-10 |
SCREW-HH Price: $0.89 |
| 9 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 10 |
99-5678 |
IDLER PULLEY ASM This part replaces 52-4580. Price: $65.12 |
| 11 |
56-5520-01 |
DISCONTINUED This part replaces 56-5520. Price: Call Us |
| 12 |
19-1470 |
SCREW-SHOULDER Price: $3.49 |
| 13 |
54-1160 |
SPRING-EXTENSION, DECK Price: $31.38 |
| 14 |
56-5540-01 |
ANCHOR-DECK SPRING This part replaces 56-5540. Price: $25.10 |
| 15 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 17 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 18 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 19 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 20 |
3296-41 |
NUT-LOCK NI This part replaces 32146-19. Price: $5.49 |
| 21 |
56-5560 |
V-BELT, DECK Price: $76.85 |
| 22 |
51-3520 |
PULLEY and HUB ASM Price: Call Us |
| 23 |
39-7690 |
DISCONTINUED Price: Call Us |
| 24 |
40-6340 |
BEARING Price: $66.74 |
| 25 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 26 |
40-6320 |
DISCONTINUED Price: Call Us |
| 27 |
40-6330 |
DISCONTINUED Price: Call Us |
| 28 |
40-6310 |
SHAFT and SADDLE ASM Price: Call Us |
| 29 |
40-3760-03 |
BLADE-18" This part replaces 40-3760. Price: $24.99 |
| 30 |
12-1659 |
Housing Price: Call Us |
| 31 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 32 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 33 |
29-4820 |
ROLLER Price: $14.88 |
| 34 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 35 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 36 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 37 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 38 |
3211-15 |
SCREW-HH Price: $7.99 |
