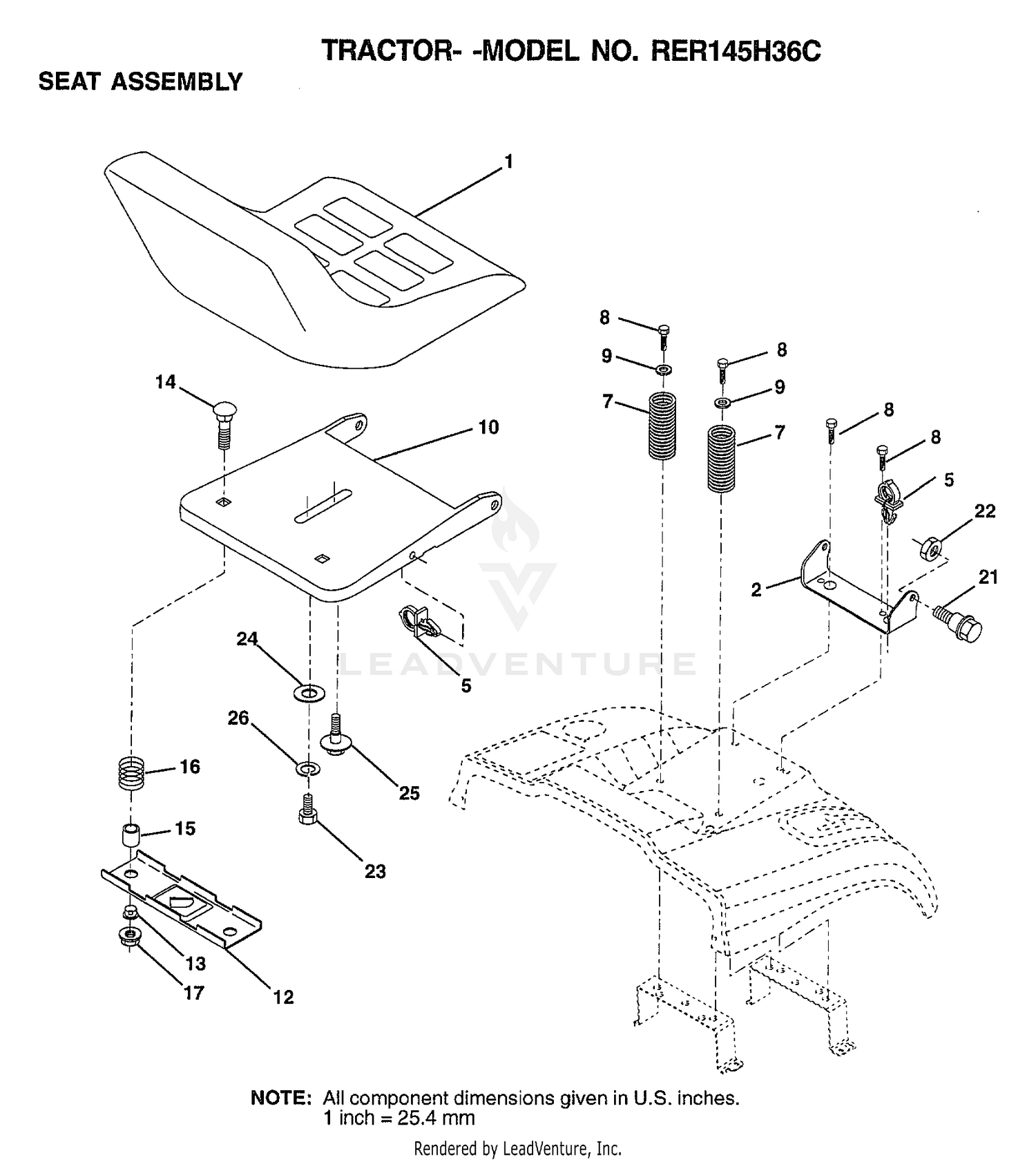

| Ref | Part Number | Description |
|---|
| 1 |
127428 |
SUB= 140119 Price: Call Us |
| 2 |
140551 |
BRACKET PVT SEAT Price: Call Us |
| 2 |
99-5610 |
PIN Price: $40.16 |
| 3 |
98-1880-03 |
KNUCKLE-PIVOT This part replaces 98-1880-01. Price: $350.23 |
| 4 |
105-3366 |
NO. 1 LIFT ARM ASM Price: $1,019.52 |
| 5 |
145006 |
CLIP.PUSH-IN.HING Price: Call Us |
| 5 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 6 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 7 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 7 |
124181X |
SPRING COMPRESSIO Price: Call Us |
| 8 |
17000616 |
SCREW Price: Call Us |
| 8 |
94-9998 |
WASHER-THRUST Price: $11.60 |
| 9 |
19131614 |
WASHER Price: Call Us |
| 9 |
94-9974 |
RING-RETAINING Price: $0.70 |
| 10 |
155925 |
PAN-SEAT Price: Call Us |
| 10 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 11 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 12 |
121246X |
BRKT SWITCH Price: Call Us |
| 13 |
121248X |
BUSHING Price: Call Us |
| 13 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 14 |
33114-020 |
SCREW-HH Price: $0.28 |
| 14 |
72050412 |
BOLT-RD HD SQ NK Price: Call Us |
| 15 |
134300 |
SPLIT SPACER Price: Call Us |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
121250X |
SPRING Price: Call Us |
| 16 |
99-5621 |
GUIDE-HOSE Price: $34.45 |
| 17 |
123976X |
SUB= 73900400 Price: Call Us |
| 17 |
2412-96 |
CLAMP-R Price: $3.46 |
| 18 |
105-7916 |
HYD HOSE ASM Price: $202.95 |
| 19 |
322-4 |
SCREW-HH Price: $0.35 |
| 20 |
105-9274 |
HYD HOSE ASM Price: $242.86 |
| 21 |
138-6951 |
CYLINDER ASM-HYDRAULIC This part replaces 93-2650. Price: $664.52 |
| 21 |
171852 |
BOLT Price: Call Us |
| 22 |
73800500 |
NUT Price: Call Us |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
71110814 |
BOLT HEX BLACK Price: Call Us |
| 24 |
19171912 |
WASHER Price: Call Us |
| 24 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 25 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 26 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 27 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 28 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 29 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 30 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 31 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 32 |
105-0142-03 |
ROD-PIVOT, FRONT Price: $122.57 |
| 33 |
98-3929 |
SPRING-TORSION Price: $23.85 |
| 34 |
93-6738 |
CHAIN Price: $13.80 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
