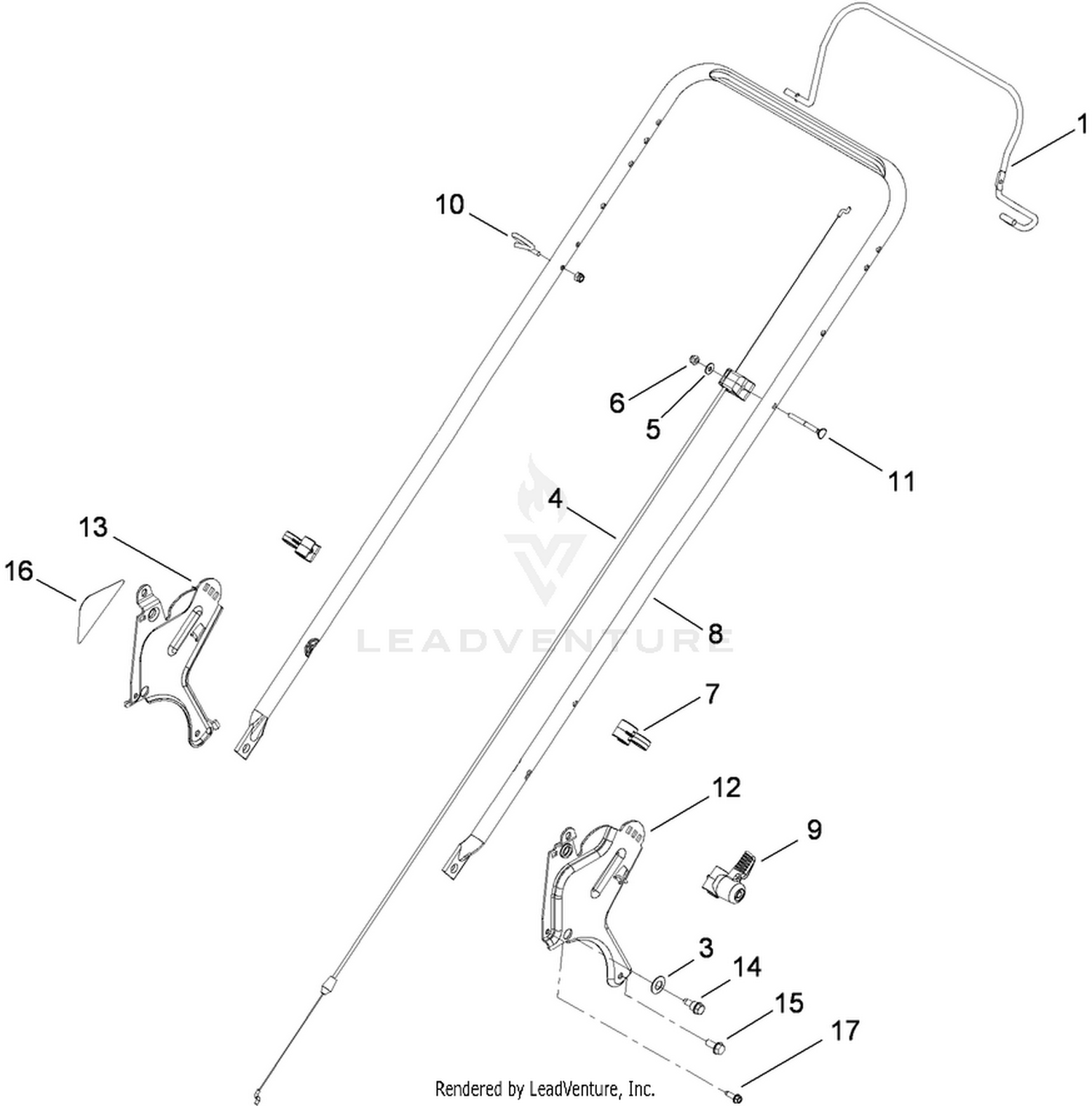

| Ref | Part Number | Description |
|---|
| 1 |
117-5965-03 |
BAIL-BRAKE This part replaces 117-4137-03. Price: $24.42 |
| 3 |
112-9972 |
WASHER-SPRING, CONICAL Price: $4.38 |
| 4 |
117-5919 |
CABLE-BRAKE Price: $24.42 |
| 5 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 6 |
3296-73 |
NUT-LOCK, NI Price: $3.59 |
| 7 |
114-7988 |
GUIDE-CABLE This part replaces 106-6805. Price: $1.84 |
| 8 |
121-9167-05 |
HANDLE This part replaces 115-1300-05. Price: $63.28 |
| 9 |
138-3249 |
QUICK RELEASE ASM This part replaces 115-2860. Price: $7.22 |
| 10 |
86-9671 |
GUIDE-ROPE Price: $3.28 |
| 11 |
92-2270 |
SCREW-HANDLE Price: $5.42 |
| 12 |
114-2671-03 |
BRACKET-HANDLE, LH Price: $17.61 |
| 13 |
114-2672-03 |
BRACKET-HANDLE, RH Price: $17.61 |
| 14 |
115-1958 |
BOLT-SHOULDER Price: $3.18 |
| 15 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 16 |
115-2884 |
DECAL-INSTRUCTION Price: $3.33 |
