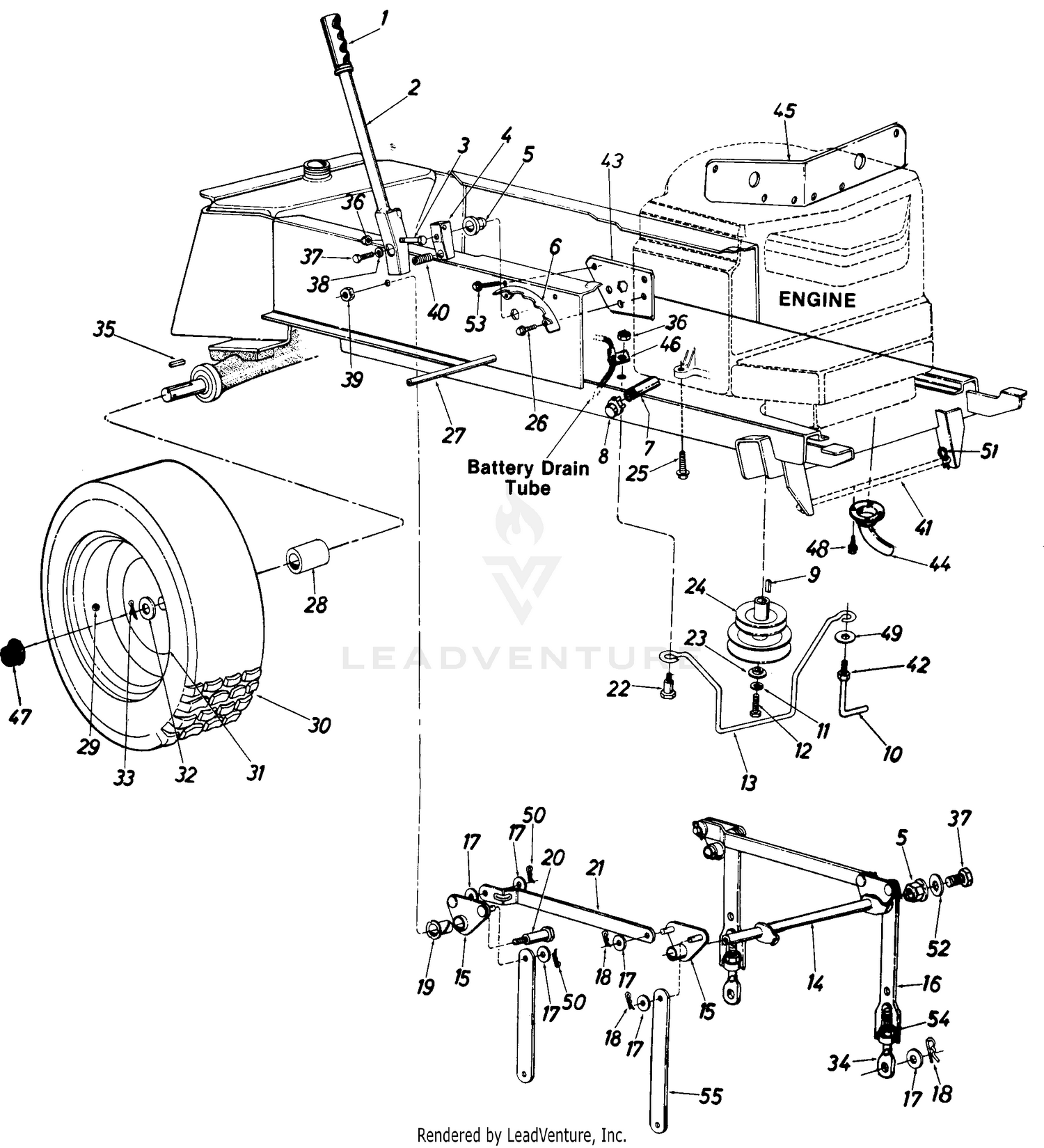

| Ref | Part Number | Description |
|---|
| 1 |
720-0157 |
LIFT HANDLE GRIP Not Available Price: |
| 2 |
14233 |
LIFT HANDLE ASS'Y. Not Available Price: |
| 3 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 4 |
748-0274A |
LIFT SHAFT Not Available This part replaces 748-0274. Price: |
| 5 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 6 |
14231-0637 |
BRACKET-INDEX-DECK Not Available This part replaces 14231. Price: |
| 7 |
937-0164 |
PIPE NIPPLE Not Available This part replaces 737-0164. Price: |
| 8 |
737-0143 |
CAP - OIL DRAIN Not Available Price: |
| 9 |
714-0118 |
Sq. Key 1/4" x 1/4" x 1.50" Lg. Price: $6.06 |
| 10 |
747-0216 |
LOCKING PIN Not Available Price: |
| 11 |
736-0171 |
L-Wash. 7/16" Scr.* Price: $3.86 |
| 12 |
710-0757 |
Hex Scr. 7/16-20 x 1.50" Lg. Price: $8.83 |
| 13 |
747-0299 |
Belt Guard Price: Call Us |
| 14 |
13889 |
LIFT SHAFT Not Available Price: |
| 15 |
13895 |
LIFT BRACKET PIV0T Not Available Price: |
| 16 |
16092 |
LINK-ADJ D Not Available Price: |
| 17 |
736-0192 |
Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090 Price: $3.75 |
| 18 |
714-0101 |
Hairpin Cotter Price: $4.13 |
| 19 |
741-0591 |
Flanged Brg. 5/8" I.D. This part replaces 741-0295. Price: $4.02 |
| 20 |
738-0445 |
SHOULDER BOLT Not Available Price: |
| 21 |
13790-0637 |
LINK-CONNECTING Not Available This part replaces 13790. Price: |
| 22 |
738-0296 |
Shld. Scr. .437 Dia. x .268 Lg. 5/16-18 Price: $3.93 |
| 23 |
736-0322 |
Flat Wash. .44" I.D. x 1.25" O.D. x .17 Price: $8.42 |
| 24 |
756-0328 |
ENGINE PULLEY Not Available Price: |
| 25 |
710-0502A |
Hx Wash Hd. Scr. 3/8-16 x 1.25" This part replaces 710-0502. Price: $5.71 |
| 26 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 27 |
738-0435 |
ROD-RUNNING BOARD Not Available Price: |
| 28 |
750-0490 |
SPACER Not Available Price: |
| 29 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 30 |
N/A |
Rear Wheel Ass'y. Comp. |
| 31 |
N/A |
Rear Wheel Rim Only |
| 32 |
736-04605 |
Washer, 1.00 x 2.00 x .075 This part replaces 736-0345. Price: $3.74 |
| 33 |
714-0142 |
COTTER PIN-3/16 DIA x 1.50 Not Available Price: |
| 34 |
711-0773 |
EYE BOLT Not Available Price: |
| 35 |
714-0120 |
SQUARE KEY Not Available Price: |
| 36 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 37 |
710-0237 |
Hex Scr. 5/16-24 x .62" Lg. Price: $3.93 |
| 38 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 39 |
712-0181 |
Hex Top L-Nut 3/8-16 Thd. Price: $3.90 |
| 40 |
932-0369 |
SPRING This part replaces 732-0369. Price: $8.84 |
| 41 |
738-0392 |
CONNECTING ROD Not Available Price: |
| 42 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 43 |
14170-0637 |
REINFORCEMENT PLATE Not Available This part replaces 14170. Price: |
| 47 |
731-0556 |
Hub Cap Price: $4.22 |
| 48 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 49 |
736-0242 |
Belle-Wash..39" I.D. Price: $3.75 |
| 50 |
714-0111 |
Cotter Pin .09 Dia. x 1.0" Lg. Price: $4.20 |
| 51 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 52 |
736-0231 |
Flat Wash. .34" I.D. x 1.12" O.D. x .125 Price: $4.02 |
| 53 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .62" Lg. Price: $3.82 |
| 54 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
