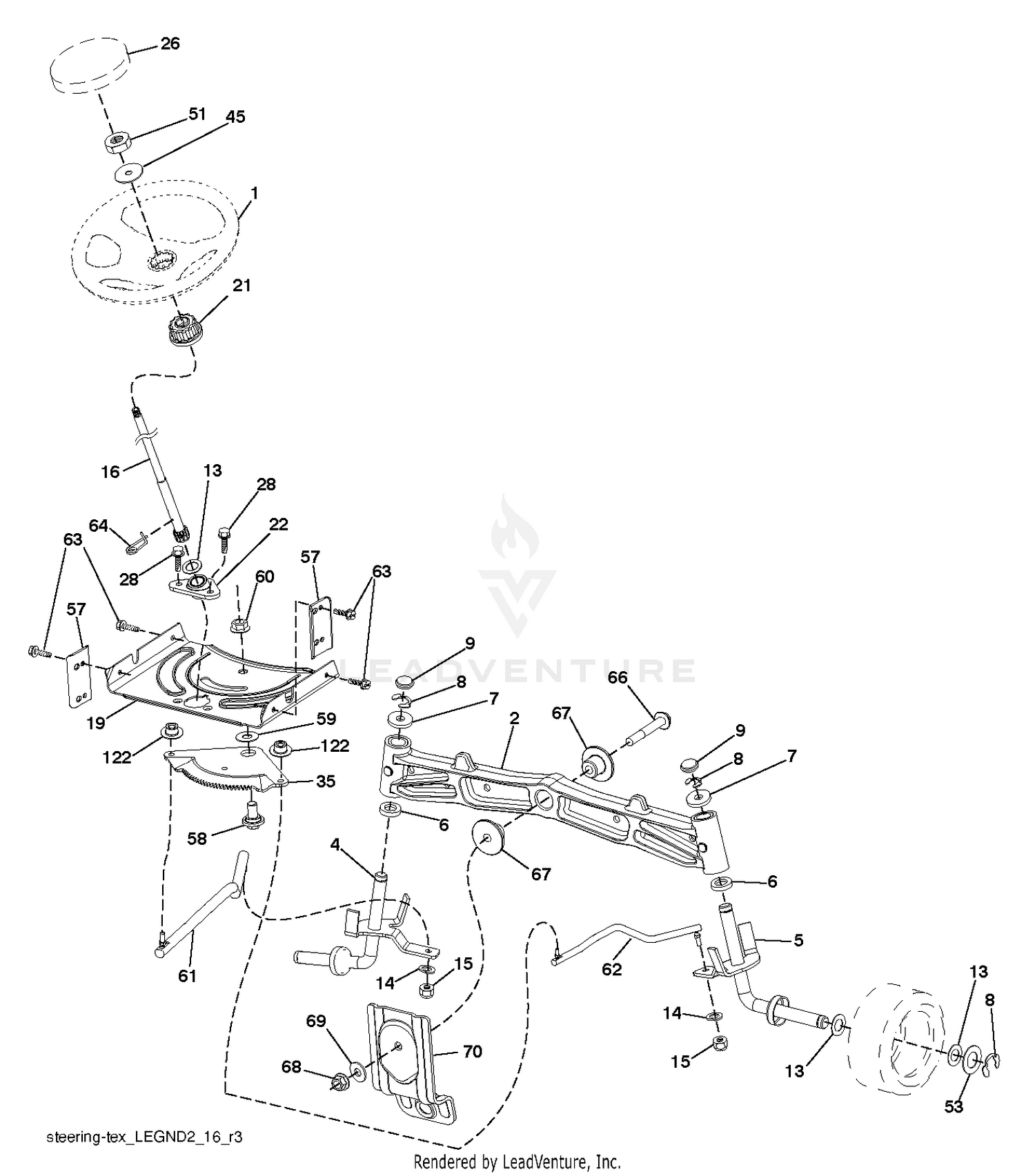

| Ref | Part Number | Description |
|---|
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 2 |
75-9260-03 |
RESERVOIR SUPPORT This part replaces 75-9260. Price: $124.08 |
| 3 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 4 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 5 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
62-5330-03 |
SIDE PANEL/BRACE ASM This part replaces 62-5330. Price: $51.05 |
| 8 |
32128-44 |
NUT Price: $2.69 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
3230-15 |
SCREW-CARR Price: $1.49 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
92-4426 |
STABILIZER - REAR Price: $198.56 |
| 11 |
321-11 |
SCREW-HH Price: $0.36 |
| 12 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 13 |
323-9 |
SCREW-HH This part replaces 322-45. Price: $1.29 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
85-5330-01 |
PLATE-SEAT ASM This part replaces 85-5330. Price: $88.55 |
| 15 |
32128-25 |
NUT-HF Price: $3.19 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 16 |
61-3840 |
DISCONTINUED Price: Call Us |
| 17 |
237-37 |
BUMPER-RUBBER Price: $4.33 |
| 18 |
93-6868-03 |
STEP-FOOT This part replaces 93-6868. Price: $438.49 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 19 |
72-4350 |
DISCONTINUED Price: Call Us |
| 20 |
43-8870 |
BOOT-SWITCH Price: $47.92 |
| 21 |
37-9590 |
DISCONTINUED Price: Call Us |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
218-461 |
NUT-HH Price: $2.50 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 23 |
323-7 |
SCREW-HH This part replaces 322-43. Price: $0.65 |
| 24 |
237-7 |
O-RING Price: $8.82 |
| 25 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 26 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 28 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 30 |
43-8610 |
GUIDE Price: $23.35 |
| 31 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 32 |
237-30 |
O-RING Price: $2.50 |
| 33 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 34 |
88-9550 |
DISCONTINUED Price: Call Us |
| 34 |
93-7278 |
DISCONTINUED Price: Call Us |
| 35 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 36 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 37 |
2412-71 |
CLAMP-R Price: $6.11 |
| 38 |
3290-196 |
NUT Price: $7.79 |
| 39 |
62-7170 |
SPACER-RUBBER Price: $28.36 |
| 40 |
3290-199 |
NUT-SPEED Price: $4.09 |
| 41 |
76-0500-03 |
COVER-RESERVOIR SUPT This part replaces 76-0500. Price: $30.56 |
| 42 |
92-3180-01 |
PANEL This part replaces 92-3180. Price: $252.85 |
| 43 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 44 |
106-8119 |
DECAL-WARNING, CE This part replaces 93-7271. Price: $9.14 |
| 44 |
83-9550 |
DECAL-WARNING Price: $12.60 |
| 45 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 46 |
2412-133 |
CLAMP-R Price: $3.19 |
| 47 |
28-6180 |
PIN-PEDAL Price: $5.05 |
| 48 |
85-5340 |
TUBE-PIVOT, SEAT Price: $5.84 |
| 49 |
32122-14 |
SCREW-PPH Price: $1.02 |
| 50 |
80-3940 |
DISCONTINUED Price: $2.00 |
| 51 |
237-88 |
GROMMET Price: $2.96 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 52 |
61-3880-01 |
RH ACCESS PANEL This part replaces 61-3880. Price: $109.91 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 53 |
85-5230 |
BRACKET-PIVOT, SEAT Price: $9.78 |
| 54 |
3229-11 |
SCREW-CARR This part replaces 3229-22. Price: $0.99 |
| 55 |
32128-33 |
NUT-HF Price: $0.25 |
| 56 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 57 |
32148-8 |
NUT-CLINCH Price: $2.31 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
