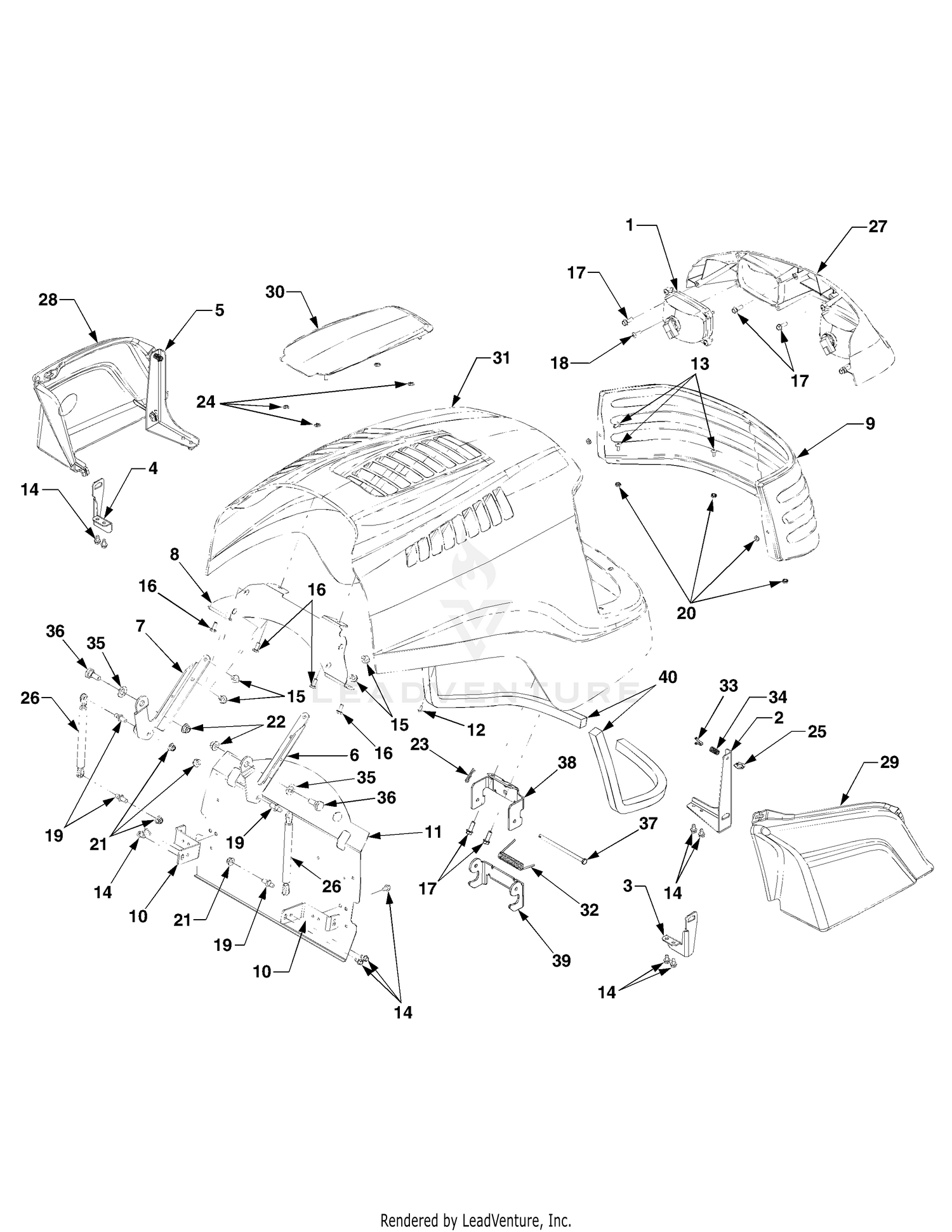

| Ref | Part Number | Description |
|---|
| 1 |
925-04004 |
HEADLIGHT ASSEMBLY Not Available This part replaces 625-04004. Price: |
| 2 |
703-05281-0637 |
PANEL MOUNTING BRACKET (RH) (POWDER BLACK) Not Available Price: |
| 3 |
703-05284-0637 |
PANEL MOUNTING BRACKET (RH) (POWDER BLACK) Not Available Price: |
| 4 |
703-05293-0637 |
PANEL MOUNTING BRACKET (LH) (POWDER BLACK) Not Available Price: |
| 5 |
703-05295-0637 |
PANEL MOUNTING BRACKET (LH) (POWDER BLACK) Not Available Price: |
| 6 |
703-05652-0637 |
HINGE BRACKET (RH) (POWDER BLACK) Not Available Price: |
| 7 |
703-05653-0637 |
HINGE BRACKET (LH) (POWDER BLACK) Not Available Price: |
| 8 |
703-05655A-0637 |
HOOD MOUNTING BRACKET (POWDER BLACK) This part replaces 703-05655-0637. Price: $50.59 |
| 9 |
703-3394-0637 |
INTAKE SCREEN Not Available This part replaces 703-3394. Price: |
| 10 |
703-3764 |
BRACKET-PANEL MTG Not Available Price: |
| 11 |
703-3765 |
SHIELD-LOWER HEAT Not Available Price: |
| 12 |
710-04164 |
Screw, Hex Wash Hd, #8-18 x .375 Price: $3.99 |
| 13 |
710-0473 |
Screw, Truss Hd, 10-24 x .5 Price: $3.90 |
| 14 |
710-0599 |
Screw, Hex Wash Hd Tapp 1/4-20 x .5 Price: $3.86 |
| 15 |
710-0607 |
Screw, Hex Wash Hd Tapp 5/16-18 x .5 Price: $6.06 |
| 16 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 17 |
710-0895 |
Screw, Hex Wash. Hd. 1/4-20 x .75 Price: $5.82 |
| 18 |
710-1220 |
Screw, Truss Phil. Hd. 12-16 x .75 Price: $3.96 |
| 19 |
710-3170 |
SCREW 5/16-18 x .56 Not Available Price: |
| 20 |
712-0272 |
Nut, Hex Sems, 10-24 Price: $3.58 |
| 21 |
712-04063 |
Nut, Hex Insert Flange Lock, 5/16-18 Price: $3.56 |
| 22 |
712-04065 |
Nut, Hex Insert Flange Lock, 3/8-16 Price: $3.68 |
| 23 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 24 |
726-0233 |
Nut, Push, .25 ID Price: $3.93 |
| 25 |
726-3056 |
Latch, 1/4 Turn Panel Price: $6.20 |
| 26 |
727-04142 |
Cylinder, Gas Spring Price: $51.96 |
| 27 |
931-04211 |
HEAD LIGHT BEZEL Not Available This part replaces 731-04211. Price: |
| 28 |
931-04540 |
SIDE PANEL (LH) Not Available This part replaces 731-04540. Price: |
| 29 |
931-04541 |
SIDE PANEL (RH) Not Available This part replaces 731-04541. Price: |
| 30 |
731-05161 |
HOOD COVER Not Available Price: |
| 32 |
732-04281A |
Spring, Torsion Price: $7.44 |
| 33 |
726P05561 |
PANEL LATCH This part replaces 732-0936. Price: $30.60 |
| 34 |
732-0937 |
Spring, Compression Price: $7.18 |
| 35 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 36 |
738-0380 |
Screw, Shoulder, .5 x .27 Lg 3/8-16 Price: $7.34 |
| 37 |
747-1323A |
Rod, .25 x 4.55 Price: $10.76 |
| 38 |
783-04714A |
LATCH PLATE This part replaces 783-04714. Price: $17.27 |
| 39 |
783-04717A |
LATCH PIVOT BRACKET Not Available This part replaces 783-4717A. Price: |
| 503216620 |
503216618 |
SCREW This part replaces 503216620. Price: $3.99 |
| 503216820 |
503216220 |
SCREW W/ LOCKING FLUID This part replaces 503216820. Price: $3.99 |
| 503216825 |
503216825 |
SCREW Price: $2.99 |
| 503217116 |
586444901 |
SCREW This part replaces 503217116. Price: $2.99 |
| 503217716 |
503217716 |
SCREW Price: $2.99 |
| 503872601 |
503872601 |
CLUTCH DRUM Price: $44.99 |
| 537032301 |
537309601 |
COMPRESION SLEEVE/ISOLATOR SET This part replaces 537032301. Price: $22.99 |
| 537032401 |
537309601 |
COMPRESION SLEEVE/ISOLATOR SET This part replaces 537032401. Price: $22.99 |
| 537041203 |
537041209 |
CLUTCH COVER This part replaces 537041203. Price: $64.99 |
| 537066801 |
537066801 |
CRANKCASE Price: $3.99 |
| 537066901 |
537066901 |
GASKET Price: $7.99 |
| 537073601 |
537073601 |
HOLDER Price: $3.99 |
| 537085201 |
537085203 |
CRANKCASE This part replaces 537085201. Price: $84.99 |
