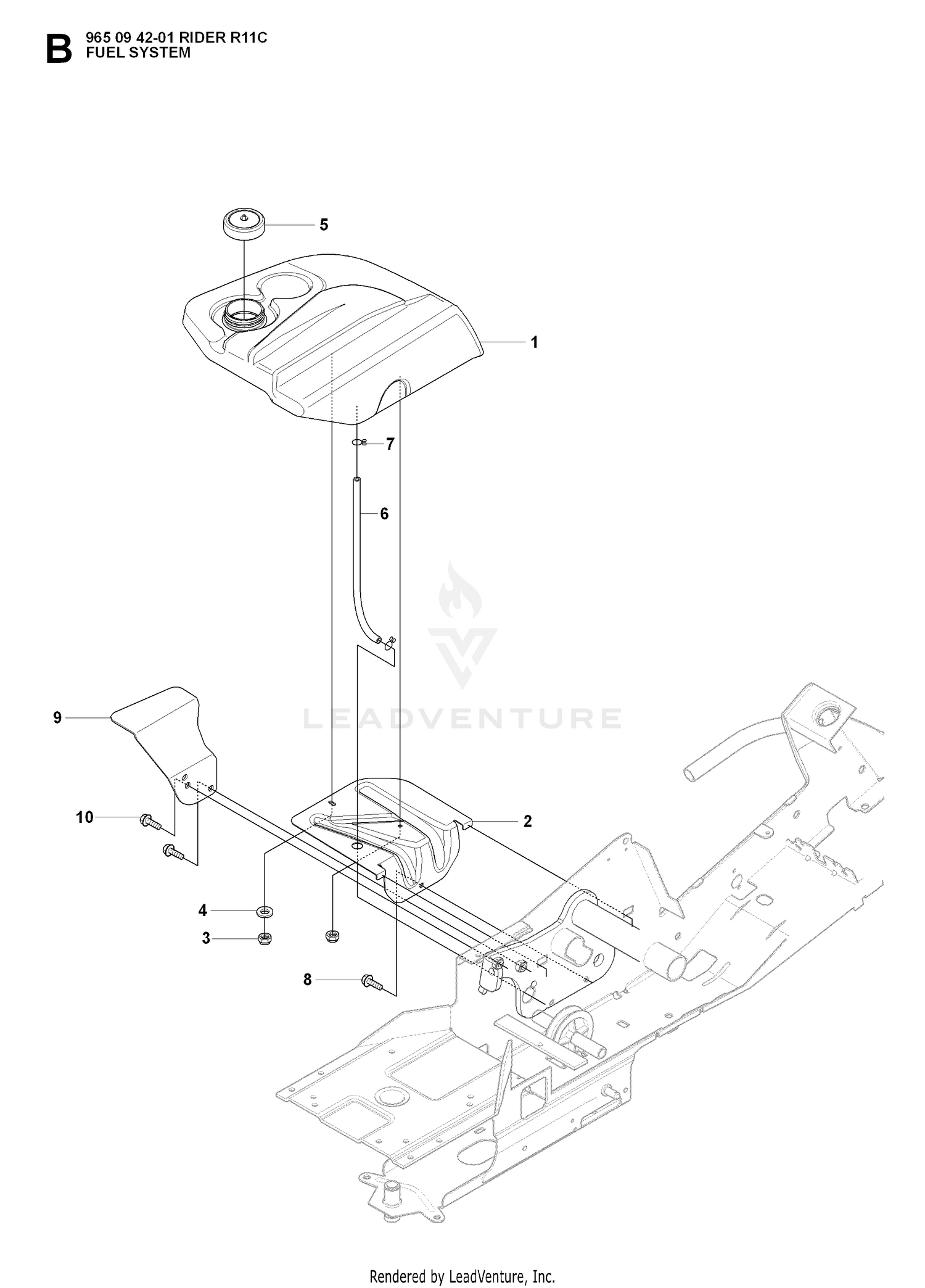

FUEL SYSTEM
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535501301 | FUEL TANK Price: $61.99 |
| 2 | 302-5 | FITTING-GREASE Price: $0.59 |
| 2 | 544329301 | BRACKET Price: $44.99 |
| 3 | 256-268 | BUSHING Price: $18.24 |
| 3 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 4 | 105-7441 | BEARING-SPHERICAL Price: $56.85 |
| 5 | 32151-34 | RING-RETAINING Price: $0.67 |
| 5 | 506673301 | FUEL CAP Price: $27.99 |
| 6 | 119-2200 | PAD-RUBBER, REAR HOC Price: $10.33 |
| 6 | 506946707 | Price: $15.94 |
| 7 | 119-2230 | PAD-PLASTIC, REAR HOC Price: $7.14 |
| 7 | 535469701 | CLAMP Price: $2.99 |
| 8 | 110-0606 | RIVET-BLIND Price: $1.15 |
| 8 | 725236461 | SCREW Price: $2.99 |
| 9 | 501020301 | SUPPORT Price: $26.92 |
| 10 | 725249371 | Screw M10x25 Price: $1.82 |
