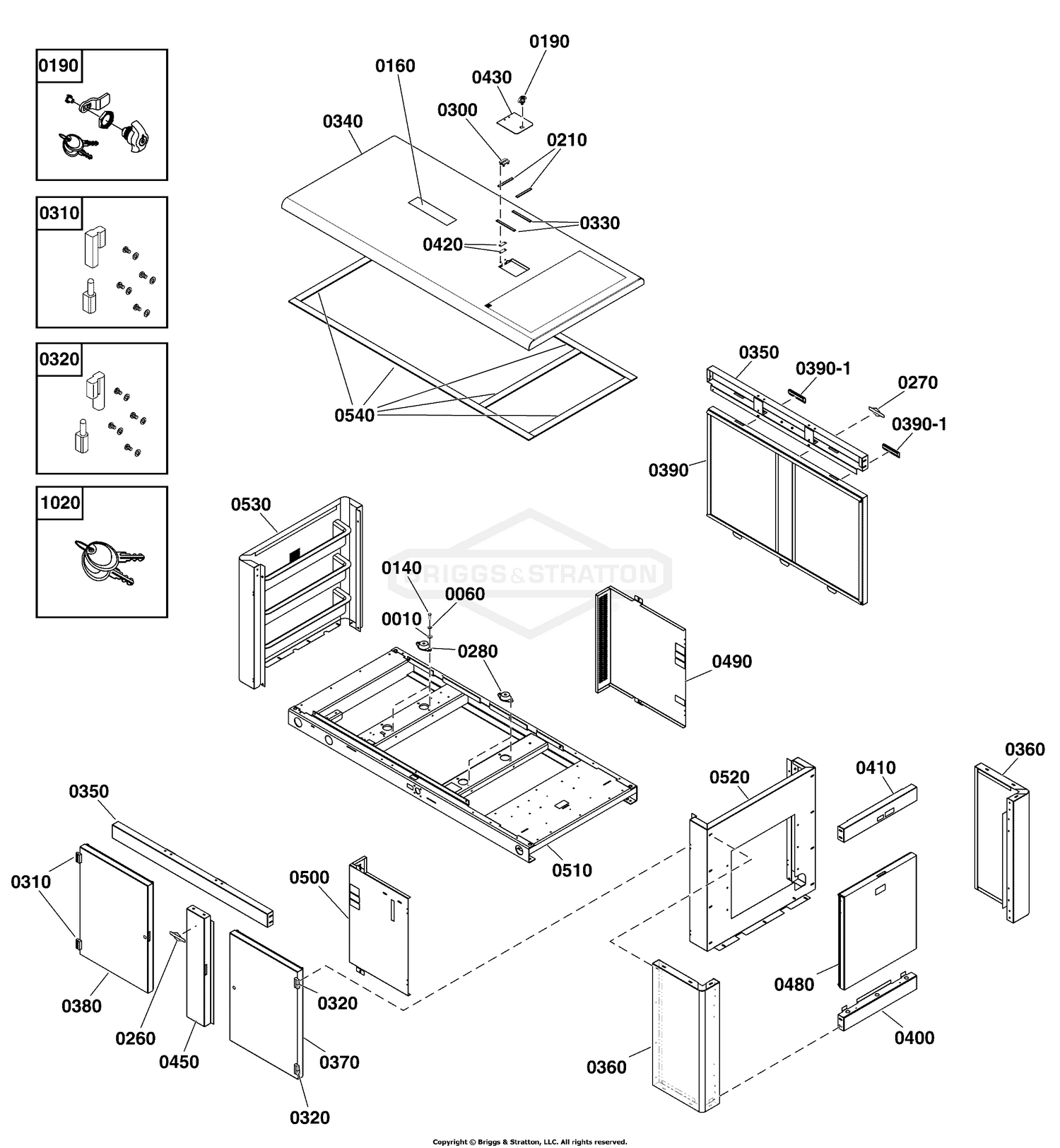

Enclosure Group

Enclosure Group

Parts (25)

RefPart NumberDescription
0010 71072MA WASHER, FLAT .406X.81 This part replaces 22131GS. Price: $3.63
0060 703454 LOCKWASHER, SPLIT 3/8 This part replaces 22237GS. Price: $2.95
0140 5025013X6SM BOLT, 3/8-16 X 3/4" G This part replaces 23152GS. Price: $3.19
0160 317921GS DECAL-ROOF, DO NOT LIFT Price: $4.09
0190 198889GS LATCH This part replaces 195998GS. Price: $33.60
0210 197316GS SEAL, Foam Price: $5.57
0280 204653GS MOUNT-VIBRATION Price: $23.59
0300 205225GS HINGE, Plate Cover Price: $20.54
0310 204920GS HINGE Price: $20.80
0320 204852GS HINGE Price: $18.90
0330 207758GS SEAL Price: $6.11
0340 708914 ROOF Price: $2,645.18
0350 708910 RAIL-SUPPORT Price: $392.92
0360 708889 CORNER Price: $455.81
0370 84007454 DOOR ASSEMBLY This part replaces 708898. Price: $608.07
0380 84007454 DOOR ASSEMBLY This part replaces 708896. Price: $608.07
0400 708909 RAIL-SUPPORT Price: $71.37
0410 708908 RAIL-SUPPORT Price: $67.33
0420 BA310477GS PLATE-COVER Price: $11.59
0430 708891 COVER Price: $15.99
0450 708916 SUPPORT Price: $140.36
0480 708893 DOOR Price: $533.52
0520 708887 BULKHEAD-ENGINE Price: $3,481.14
0530 708885 BULKHEAD-ALTERNATOR Price: $980.91
0540 205368GS SEAL Price: $71.23
