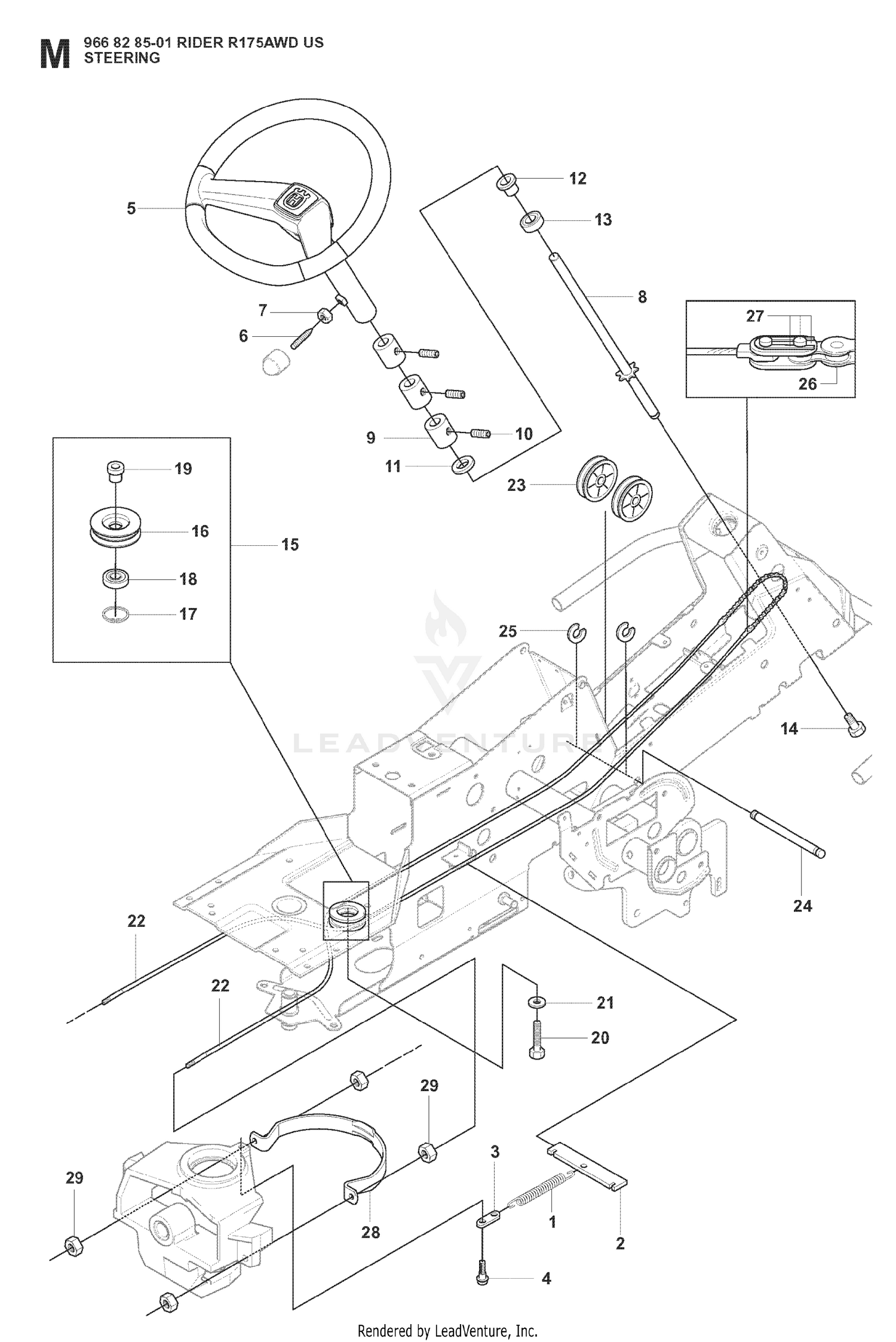

STEERING
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-0190-03 | SHAFT-LIFT Price: $677.87 |
| 1 | 506671901 | SPRING Price: $22.99 |
| 2 | 115-0491 | CAP-BEARING Price: $56.97 |
| 2 | 590735401 | Brackets This part replaces 506576301. Price: $12.99 |
| 3 | 117-2903 | PLATE-BEARING Price: $9.22 |
| 3 | 506670801 | CONNECTOR Price: $6.99 |
| 4 | 325-37 | SCREW-HH Price: $2.57 |
| 4 | 506597401 | BOLT Price: $5.99 |
| 5 | 112-9544 | PIN-HOC Price: $6.66 |
| 5 | 544375202 | STEERING WHEEL Price: $54.99 |
| 6 | 110-9834 | HYD CYLINDER ASM Price: $647.03 |
| 6 | 728745505 | SCREW Price: $3.99 |
| 7 | 340-92 | FITTING-STRAIGHT Price: $12.29 |
| 7 | 731231801 | NUT Price: $3.99 |
| 8 | 535499501 | ROD STEERING ASSY Price: $59.99 |
| 9 | 115-0183 | SHAFT-CYLINDER, LIFT Price: $25.26 |
| 9 | 587080901 | DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 | 327-8 | SCREW-HH Price: $5.97 |
| 10 | 728844305 | Screw Price: $1.99 |
| 11 | 32151-29 | RING-RETAINING Price: $3.59 |
| 11 | 506863601 | WASHER Price: $7.99 |
| 12 | 125-1910 | PIN-PIVOT Price: $24.50 |
| 12 | 506887801 | SPACER Price: $7.99 |
| 13 | 302-5 | FITTING-GREASE Price: $0.59 |
| 13 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 14 | 506570104 | BOLT Price: $4.99 |
| 14 | 99-5107 | NUT-LOCK Price: $1.77 |
| 15 | 506500903 | RP PULLEY Price: $101.22 |
| 15 | 99-5105 | BOLT-SHOULDER Price: $5.89 |
| 16 | 119-1385 | CHAIN-HOC Price: $10.05 |
| 16 | 535424101 | ROLLER Price: $89.99 |
| 17 | 119-1380-03 | LIFT-RH Price: $140.22 |
| 17 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 18 | 119-1383-03 | LIFT-LH Price: $147.86 |
| 19 | 114-5680 | BUSHING-FLANGE Price: $3.90 |
| 19 | 506500802 | BUSHING Price: $7.46 |
| 20 | 506675402 | BOLT Price: $5.99 |
| 20 | 69-9010 | WASHER Price: $1.83 |
| 21 | 302-2 | FITTING-GREASE Price: $1.89 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 103-1898 | SCREW-HH Price: $1.79 |
| 22 | 501604804 | WIRE ASSY This part replaces 506589104. Price: $17.99 |
| 23 | 32128-37 | NUT-HF Price: $3.63 |
| 23 | 506522401 | ROLLER Price: $9.99 |
| 24 | 327-7 | SCREW-HH Price: $5.69 |
| 24 | 506539402 | SHAFT Price: $7.99 |
| 25 | 3296-61 | NUT-LOCK Price: $14.99 |
| 25 | 735311420 | RETAINING RING Price: $2.99 |
| 26 | 114-4059 | LINK ASM Price: $91.43 |
| 26 | 506554601 | STEERING CHAIN Price: $17.99 |
| 27 | 112-1602 | PIN-RETAINER Price: $60.94 |
| 27 | 506554701 | LINK Price: $4.99 |
| 28 | 32144-41 | SCREW-TAPTITE Price: $4.79 |
| 28 | 544427301 | WIRE GUIDE Price: $29.99 |
| 29 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
