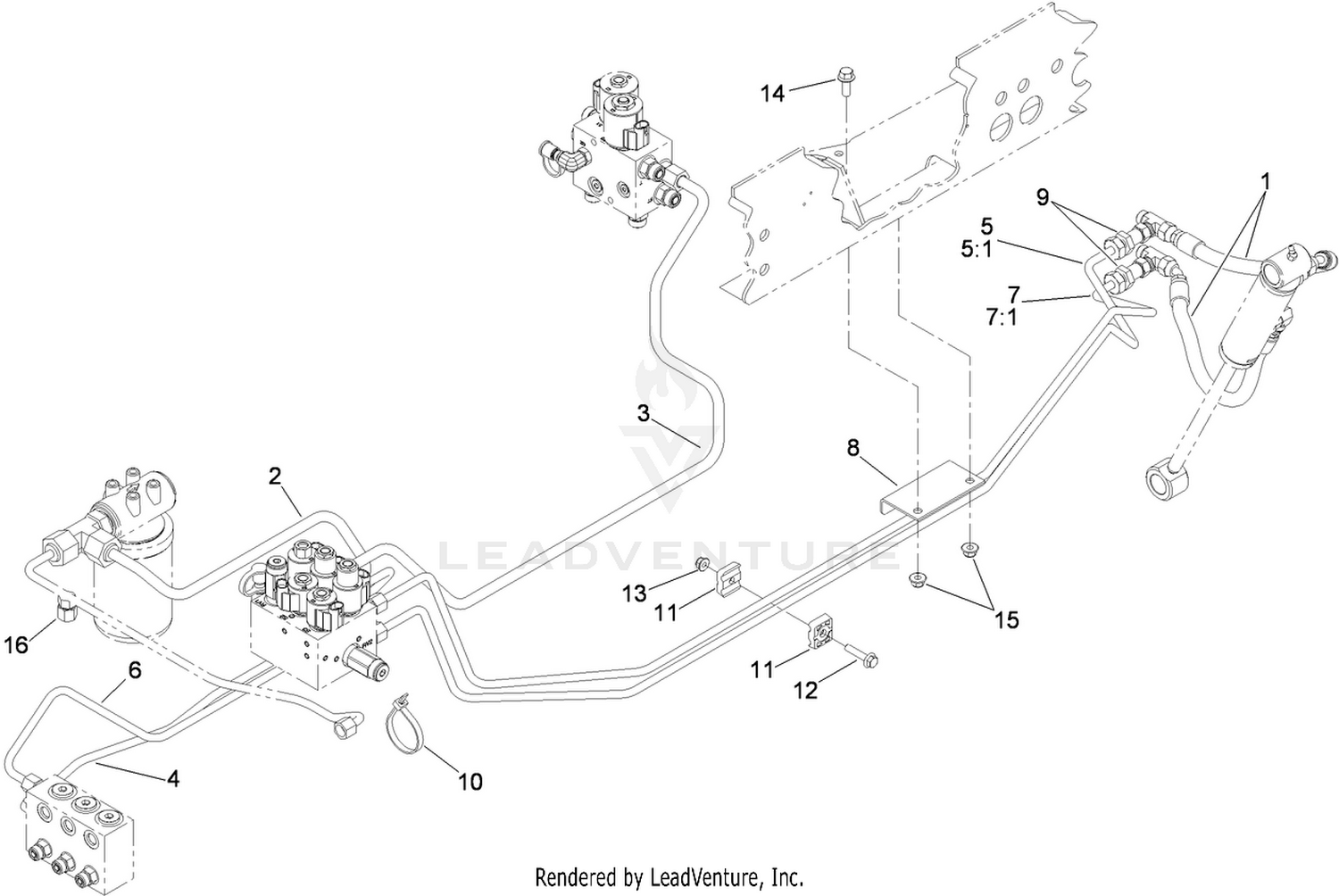

Hydraulic Line Assembly 2
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 105-9238 | HOSE-HYD Price: $104.92 |
| 2 | 119-1468 | TUBE-HYD Price: $97.58 |
| 3 | 119-1467 | TUBE-HYD Price: $109.05 |
| 4 | 119-1470 | TUBE-HYD Price: $82.35 |
| 5 | 119-1473 | TUBE-HYD Price: $120.64 |
| 6 | 119-1471 | TUBE-HYD Price: $84.23 |
| 7 | 119-1472 | TUBE-HYD Price: $130.17 |
| 8 | 105-3990-0P | BRACKET-TUBE SUPPORT This part replaces 105-3990-03. Price: $15.80 |
| 9 | 340-70 | NUT-LOCK Price: $2.10 |
| 10 | 3334-945 | TIE-CABLE Price: $0.43 |
| 11 | 56-7973 | CLAMP-TUBE Price: $15.56 |
| 12 | 3234-36 | SCREW-HHF Price: $0.75 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 3234-11 | SCREW-HHF Price: $1.23 |
| 15 | 104-8301 | NUT-HF, NI Price: $1.09 |
