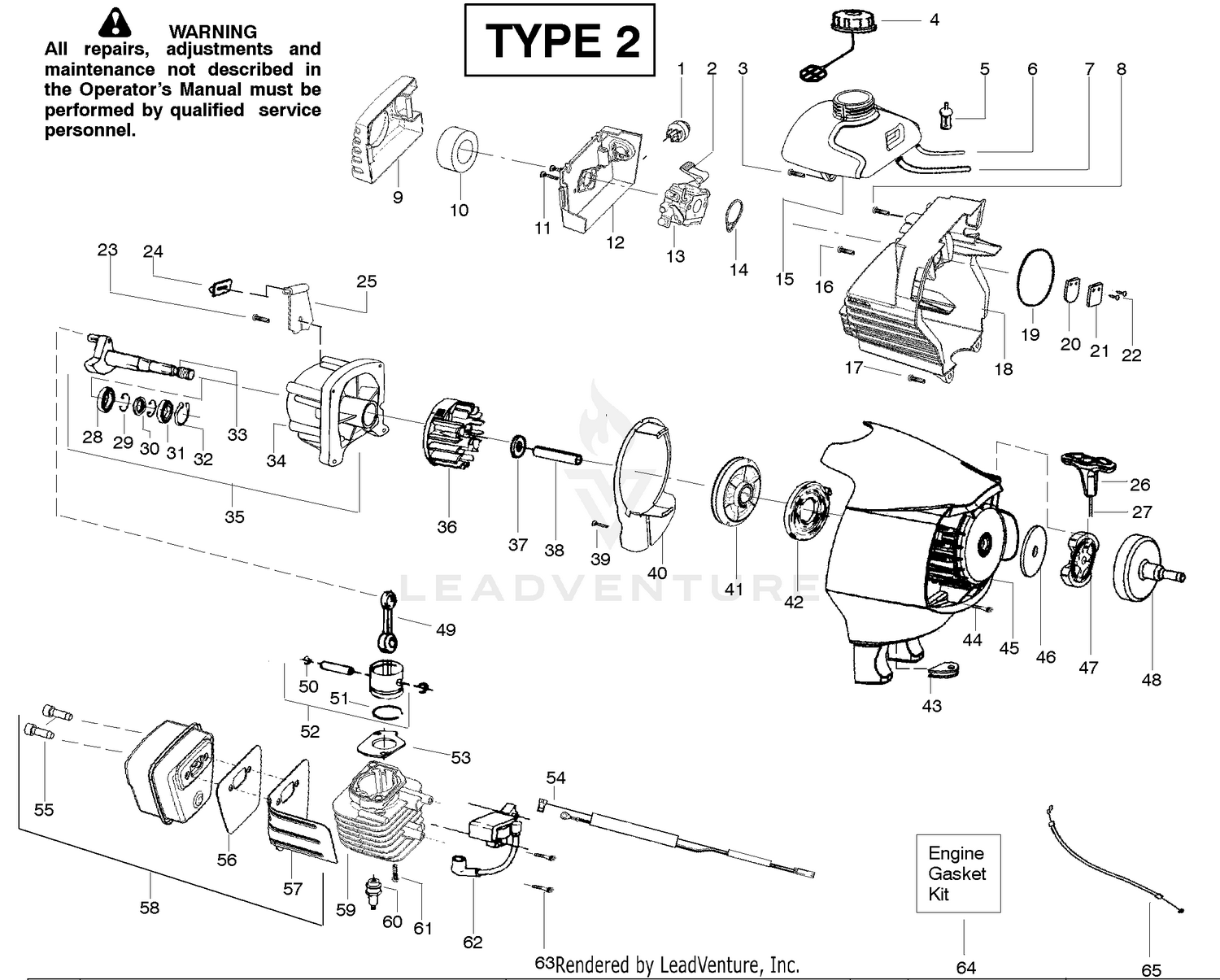

Engine - Type 2
Parts (101)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-9729 | COUPLING-FLYWHEEL Price: $505.85 |
| 1 | 530047721 | Bulb-Purge Price: $3.99 |
| 2 | 33114-016 | SCREW-HH Price: $0.27 |
| 2 | 530071717 | Kit-Choke Lever Price: $7.99 |
| 3 | 530015843 | Screw-tank Price: $1.99 |
| 3 | 63-7790 | SCREW-CAP Price: $1.46 |
| 4 | 108-9926-03 | BRACKET-MUFFLER Price: $98.18 |
| 4 | 530057973 | Assy-Fuel Cap This part replaces 530049386. Price: $7.99 |
| 5 | 3231-22 | SCREW-CARR Price: $0.72 |
| 5 | 530095646 | Assy-Fuel pickup Price: $2.69 |
| 6 | 32128-29 | NUT-LOCK, FLANGE Price: $1.63 |
| 6 | 530069247 | Kit-Line Carb/Purge This part replaces 530071404. Price: $3.69 |
| 7 | 33004-00 | NUT-HF Price: $0.34 |
| 7 | 530069216 | Kit-Fuel/Purge line Price: $3.99 |
| 8 | 322-6 | SCREW-HH Price: $0.45 |
| 8 | 530015775 | Screw Price: $1.99 |
| 9 | 108-9843-0P | SUPPORT-CLEANER, AIR This part replaces 108-9843-03. Price: $34.79 |
| 9 | 545000501 | Cover-Air box Price: $3.99 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 10 | 545082301 | Filter-Air Price: $2.99 |
| 11 | 322-10 | SCREW-HH Price: $0.70 |
| 11 | 530015849 | Screw-Carb. Price: $1.99 |
| 12 | 2412-130 | CLAMP-HOSE Price: $2.57 |
| 12 | 545000601 | Box-Air Price: $4.99 |
| 13 | 110-8263-03 | SUPPORT-SEPARATOR Price: $17.95 |
| 14 | 33104-035 | SCREW-HHF Price: $0.88 |
| 14 | 545030102 | Seal-Carb.(kit) Price: $5.99 |
| 15 | 110-8255 | HOSE-FUEL Price: $18.01 |
| 15 | 545075305 | Assy-Fuel Tank This part replaces 545075304. Price: $11.99 |
| 16 | 110-4105 | HOSE-FUEL Price: $11.71 |
| 16 | 530015771 | Screw-Crankcase Price: $1.99 |
| 17 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 17 | 530015952 | Screw-Shroud Price: $1.99 |
| 18 | 353-781 | FITTING-HYD, 90 Price: $24.44 |
| 18 | 545000701 | Assy-Rear Shroud Price: $17.99 |
| 19 | 3234-17 | SCREW-HHF Price: $0.72 |
| 19 | 545030102 | O-ring-Shroud (kit) Price: $5.99 |
| 20 | 530027593 | Valve-Reed Price: $1.99 |
| 20 | 98-9305 | WATER / FUEL FILTER ASM Price: $116.51 |
| 21 | 110-4109 | HOSE-FUEL Price: $11.24 |
| 21 | 530029781 | Stop-Reed Price: $1.99 |
| 22 | 3255-8 | WASHER-LOCK Price: $0.31 |
| 22 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 23 | 530015875 | Screw-Retainer Price: $1.99 |
| 24 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 24 | 530055492 | Isolator-Tank Price: $1.99 |
| 25 | 105-7235-0P | MOUNT-REAR, LH This part replaces 105-7235-03. Price: $38.90 |
| 25 | 530054941 | Ret.-Tank Price: $1.99 |
| 26 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 26 | 530054834 | Handle-Starter Price: $1.99 |
| 27 | 43-0090 | SCREW-HH Price: $8.05 |
| 27 | 545050409 | Kit-Rope Price: $4.99 |
| 28 | 3274-106 | SCREW-HSH Price: $5.77 |
| 28 | 545081601 | Bearing-Inner Price: $7.99 |
| 29 | 130-2486 | MOUNT This part replaces 53-9681. Price: $36.47 |
| 29 | 530015787 | Retainer Price: $1.99 |
| 30 | 530019158 | Seal Price: $2.99 |
| 30 | 87-5100 | WASHER-SNUBBING Price: $3.46 |
| 31 | 324-11 | SCREW-HH Price: $3.05 |
| 31 | 530032102 | Bearing-Outer Price: $8.99 |
| 32 | 3255-9 | WASHER-LOCK Price: $0.28 |
| 32 | 530015789 | Ret.-Crankshaft Price: $2.99 |
| 33 | 530028807 | Assy-Crankshaft Price: $19.99 |
| 33 | 99-8343 | GASKET-MUFFLER This part replaces 98-9611. Price: $14.99 |
| 34 | 104-3428 | AIR CLEANER ASM Price: $271.20 |
| 35 | 98-9584 | PULLEY-FAN Price: $89.56 |
| 36 | 530055524 | Assy-Flywheel Price: $22.99 |
| 36 | 98-9676 | V-BELT Price: $31.01 |
| 37 | 530016030 | Washer Price: $1.99 |
| 37 | 98-9719 | THERMOSWITCH Price: $98.79 |
| 38 | 530055620 | Spacer Price: $4.99 |
| 38 | 701197 | E-RING Price: $2.99 |
| 39 | 530015775 | Screw-Baffle Price: $1.99 |
| 39 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 40 | 2412-80 | CLAMP-HOSE Price: $4.39 |
| 40 | 545115201 | Plate-Baffle Price: $2.99 |
| 41 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 41 | 545050408 | Kit-Pulley Price: $14.99 |
| 42 | 43-5930 | WASHER-LOCK, SPRING Price: $0.75 |
| 42 | 545008014 | KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 43 | 33013-00 | NUT-HEX Price: $0.25 |
| 43 | 530019182 | Grommet Price: $1.99 |
| 44 | 323-6 | SCREW-HH Price: $0.66 |
| 44 | 530016386 | Screw-F/hsg. Price: $5.99 |
| 45 | 530055248 | Assy-Fan Housing Price: $17.99 |
| 46 | 530094189 | Washer-Clutch Price: $2.99 |
| 47 | 530055122 | Assy-Clutch Price: $8.99 |
| 48 | 530150247 | Assy-Drum/Adapter Price: $17.99 |
| 49 | 530010960 | Assy-Conn. Rod Price: $13.99 |
| 50 | 530015162 | Ret.-Piston pin Price: $1.99 |
| 51 | 530012595 | Ring-Piston Price: $4.99 |
| 53 | 545030102 | Gasket-Cylinder(kit) Price: $5.99 |
| 54 | 530058846 | Assy-Leadwire Price: $4.99 |
| 55 | 530016387 | Bolt-Muffler 1/4"-20 Price: $1.99 |
| 56 | 545030102 | Gasket-Muffler (kit) Price: $5.99 |
| 57 | 545033201 | Shield Price: $3.99 |
| 59 | 530012589 | Cylinder Price: $17.99 |
| 60 | 952030249 | Plug-Spark(RCJ-6Y) Price: Call Us |
| 61 | 530001624 | Bolt-Cyl. 1/4"-20 Price: $1.99 |
| 62 | 545081826 | KIT MODULE W/O INTERRUPT This part replaces 530039234. Price: $31.99 |
| 63 | 530016357 | Screw-Module Price: $1.99 |
