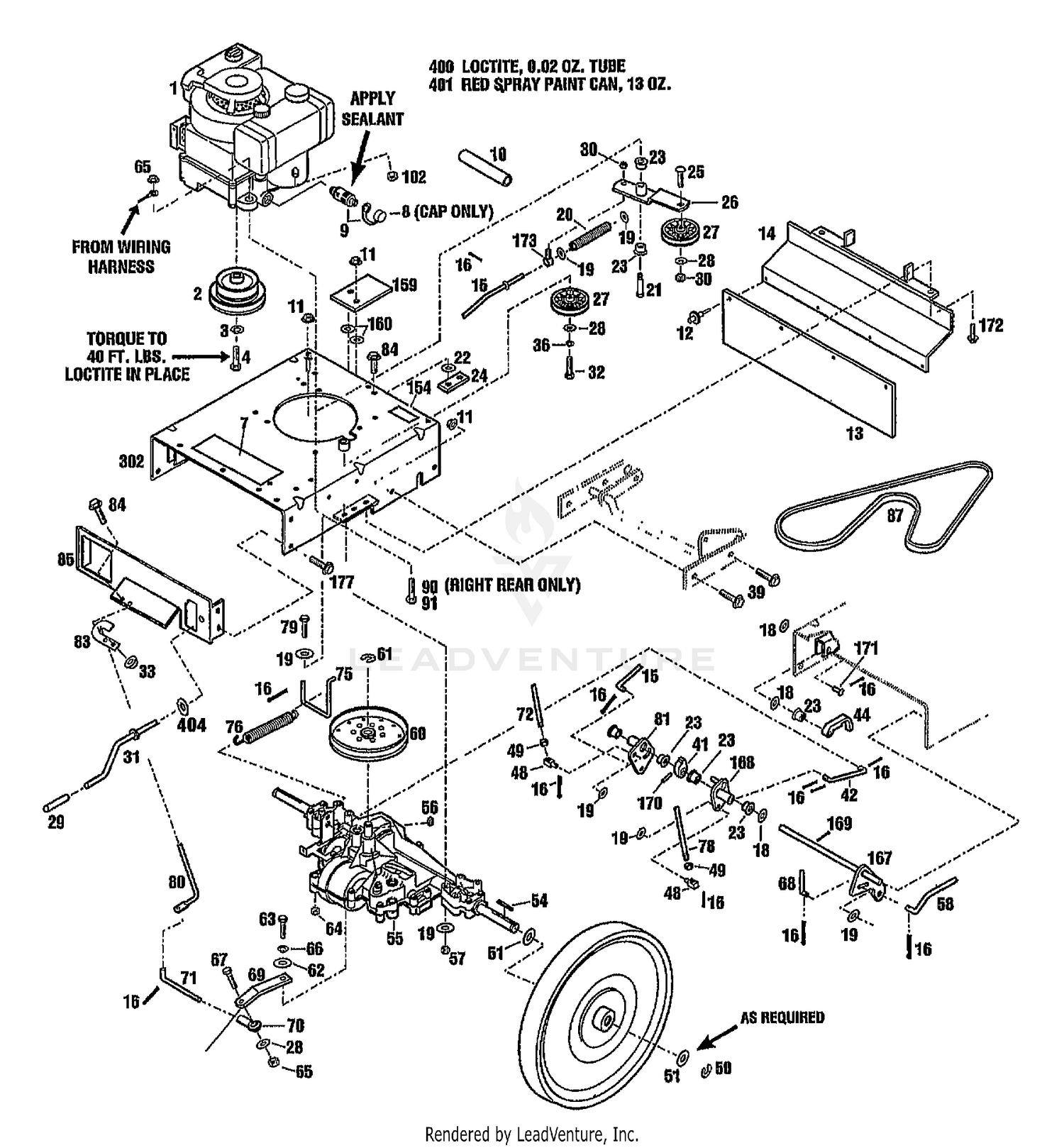

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
ENGINE, TEC. MODEL VLV55-501017A, 5.5HP ( 34069) |
| 2 |
1769904 |
ENGINE PULLEY Not Available Price: |
| 3 |
936-0171 |
WASHER-LK .438 ZP Price: $3.86 |
| 4 |
710-04092 |
Pin Dowel 7×14 This part replaces 1740949. Price: $3.70 |
| 9 |
951-10517A |
ASSM-OIL VALVE (APPLY SEALANT)(INCL. 8) Price: $22.67 |
| 10 |
751-3141-14 |
HOSE-OIL DRAIN Price: $10.40 |
| 11 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 12 |
1727379 |
POP RIVET 3/16X5/8 Not Available Price: |
| 13 |
1769870 |
FLAP Not Available Price: |
| 14 |
1769869001 |
BRACKET-FLAP Not Available Price: |
| 15 |
1769885 |
ROD-LOWER TRANSMIS Not Available Price: |
| 16 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 18 |
GW-20546 |
WASHER Not Available Price: |
| 19 |
736-0275 |
FLAT WASHER This part replaces 936-0275. Price: $5.99 |
| 20 |
1711864 |
SPRING Not Available Price: |
| 21 |
1763219 |
SCR-SHLDR 3/8-16 Price: $8.93 |
| 23 |
1715538 |
BUSHING-NYLINER .5X.5 Not Available Price: |
| 26 |
687-02011-0637 |
ASSM-IDLER ARM ZP Price: $44.38 |
| 27 |
1756151 |
BACKSIDE PULLEY IDLER Not Available Price: |
| 28 |
736-3050 |
WASHER-FLAT 3/8 SAE Price: $3.90 |
| 29 |
720-0269 |
GRIP-PLASTIC Price: $4.24 |
| 30 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 31 |
1915831 |
ASSM-CRANK LIFT Price: $23.33 |
| 32 |
710-0347 |
SCR-HH 3/8-16X1.75 G5 ZP Price: $4.39 |
| 33 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 36 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33 |
| 39 |
710-04042 |
SCR-HFLK 3/8-16X1.00 ZP Price: $4.05 |
| 41 |
1769881 |
CAM-INTERLOCK Price: $7.36 |
| 42 |
1769877 |
ROD-LOWER BRAKE Not Available Price: |
| 44 |
1770361 |
LATCH-INTERLOCK Not Available Price: |
| 48 |
1725264 |
BLOCK-SWIVEL Not Available Price: |
| 49 |
712-3007 |
NUT-HEX JAM 5/16-18 Price: $6.06 |
| 50 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 51 |
736-0188 |
WASHER-1.5X.755X.062 (AS REQUIRED) Price: $3.75 |
| 54 |
714-0133 |
KEY-SQ 3/16X1.50 This part replaces 914-0133. Price: $4.20 |
| 56 |
914-0868 |
KEY-WOODRUFF .188X.75 Price: $3.50 |
| 57 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 60 |
1770326 |
TRANSMISSION AXLE PULLEY Not Available Price: |
| 61 |
1118808 |
RETAINING RING Not Available Price: |
| 62 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 936-3020. Price: $5.94 |
| 63 |
710-0412 |
SCR-HH 1/4-28X.75 G5 ZP Price: $4.95 |
| 64 |
712-04054 |
NUT-HFLK 5/16-18 ZP Price: $3.95 |
| 65 |
712-0375 |
NUT-H/LK 3/8-16 (FROM WIRING HARNESS) Price: $4.02 |
| 66 |
936-0329 |
WASHER-LK .25 ZP Price: $3.90 |
| 67 |
710-3005 |
SCR-HH 3/8-16X1.25 Price: $3.61 |
| 68 |
1769888 |
ROD-UPPER BLADE Not Available Price: |
| 69 |
1915745001 |
ARM-TRANSM Not Available Price: |
| 70 |
1767837 |
BALL JOINT Not Available Price: |
| 71 |
1768628 |
ROD-SHIFT LINK Price: $9.16 |
| 72 |
1769873 |
ROD-UPR TR Not Available Price: |
| 75 |
1768624 |
ROD-SPRING-ATTACHM Not Available Price: |
| 76 |
1768636 |
EXTENSION SPRING Not Available Price: |
| 78 |
1769872 |
ROD-UPPER BRAKE Not Available Price: |
| 79 |
710-0176 |
SCR-HH 5/16-18X2.75 G5 ZP Price: $3.89 |
| 80 |
1769874 |
SHIFT ROD Not Available Price: |
| 83 |
1768630001 |
BRACKET SHIFT ROD Not Available Price: |
| 84 |
710-0599 |
SCR-HFLK 1/4-20X.50 ZP Price: $3.86 |
| 85 |
1769852001 |
BACKPLATE Not Available This part replaces 1769852010. Price: |
| 87 |
1770334 |
BELT-V Price: $42.95 |
| 90 |
710-1007 |
SCR-THRD FRM 3/8-16X1.50 (RIGHT REAR ONLY) Price: $5.71 |
| 102 |
712-3006 |
HEX NUT Price: $4.05 |
| 160 |
1701055 |
WASHER-FLAT 1.25X.406X.179 {34068,34069} Not Available Price: |
| 167 |
1769882 |
ASSM-PIVOT Not Available Price: |
| 169 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 914-0115. Price: $3.48 |
| 170 |
915-0249 |
Roll Pin This part replaces 1187961. Price: $5.94 |
| 171 |
1730851 |
CLEVIS PIN .5X1.25 Not Available Price: |
| 172 |
710-1260A |
SCR-HFLK 5/16-18X.75 Price: $3.34 |
| 177 |
710-1260A |
SCR-HFLK 5/16-18X.625 STH Price: $3.34 |
| 400 |
GW-97092 |
LOCTITE-242 (.5 ML TUBE) Not Available Price: |
| 401 |
788-0638A |
PAINT-RED SPRAY 13OZ. Price: $21.08 |
