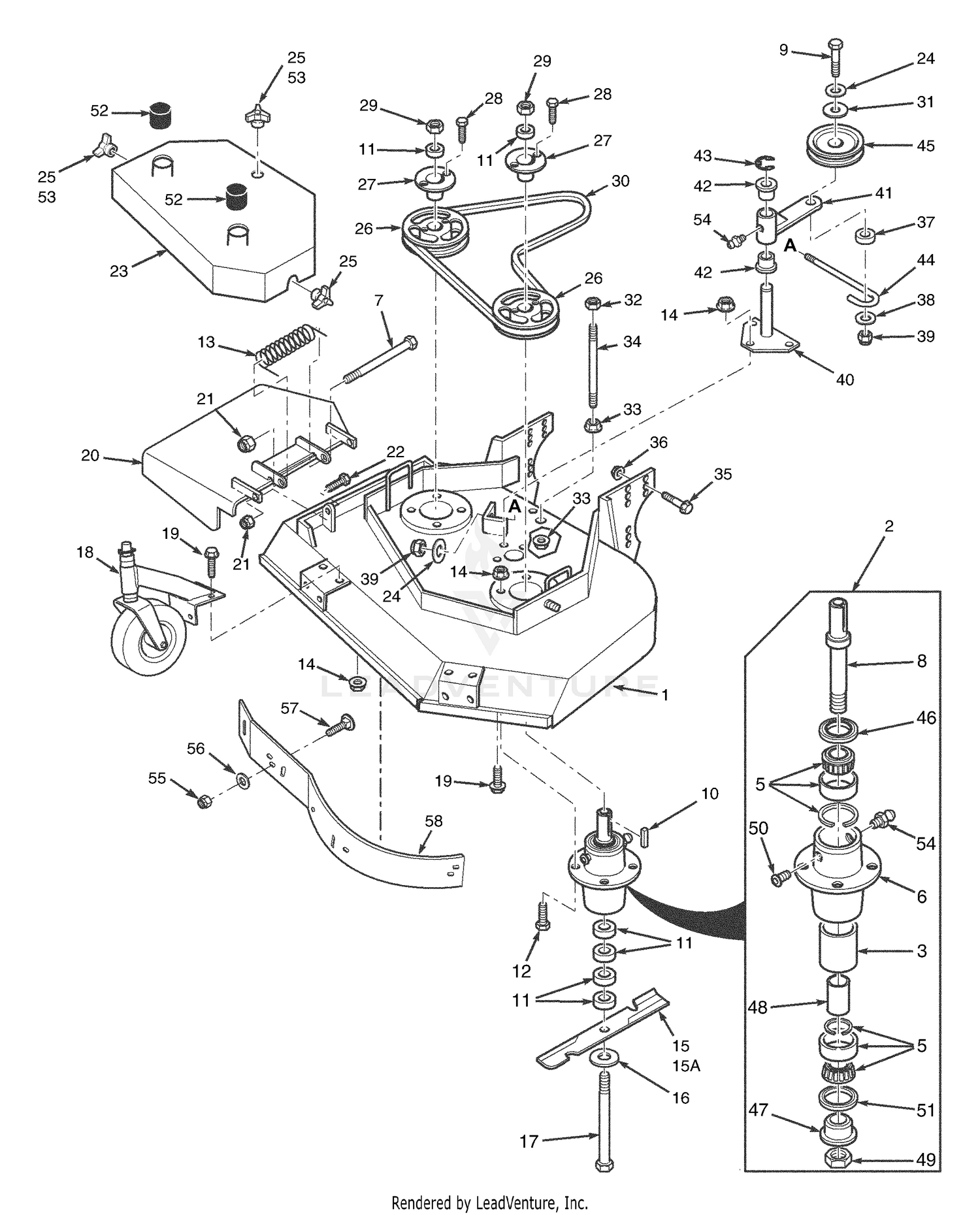

| Ref | Part Number | Description |
|---|
| 2 |
461663 |
Spindle Assembly This part replaces 46631. Price: Call Us |
| 3 |
43312 |
Spacer, Outside Price: Call Us |
| 5 |
481022 |
Tapered Bearing (Two) Price: Call Us |
| 6 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 7 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
| 8 |
43589 |
Spindle Shaft Price: Call Us |
| 9 |
04001-77 |
Bolt, 3/8-16 x 3-1/2" Hex Head Price: Call Us |
| 10 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 11 |
43592 |
Spacer, Cutter Blade - Small Price: Call Us |
| 12 |
04001-10 |
Bolt,5/16-18 x 1-1/4" Hex Head Price: Call Us |
| 13 |
482245 |
Spring, Chute Return Price: Call Us |
| 14 |
04019-03 |
Nut 5/16-18 Serrated Flange Price: Call Us |
| 15 |
481707 |
Cutter Blade, 18" This part replaces 482462. Price: Call Us |
| 15A |
481711 |
Cutter Blade, 18 Hi-Lift This part replaces 482467. Price: Call Us |
| 16 |
04043-06 |
Flatwasher, 5/8 W Price: Call Us |
| 17 |
04001-41 |
Hex Hd. Bolt, 5/8-11 x 9-1/2" Price: Call Us |
| 18 |
46079 |
Caster Assembly (See Page 3) Price: Call Us |
| 19 |
04017-16 |
Cpscrw,5/16-18 x 3/4" Ser.Flg. Hex Head Price: Call Us |
| 20 |
461295 |
Discharge Chute Price: Call Us |
| 21 |
04021-10 |
Hex Nut, 5/16-18 Elastic Stop Price: Call Us |
| 22 |
04001-09 |
Hex Hd Bolt, 5/16-18 x 1" Price: Call Us |
| 24 |
04041-07 |
Flat Washer, 3/8" Special Price: Call Us |
| 25 |
04029-03 |
Wing Nut, 3/8-16 Price: Call Us |
| 26 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48924. Price: Call Us |
| 27 |
48926 |
Tapered Hub Price: Call Us |
| 28 |
04001-01 |
Hex Hd. Bolt, 1/4-20 x 3/4" Price: Call Us |
| 29 |
04020-09 |
Hex Nut, 5/8-11 Price: Call Us |
| 30 |
48204 |
Belt, Blade Drive Price: Call Us |
| 31 |
43077 |
Spacer Price: Call Us |
| 32 |
04021-05 |
Hex Nut, 3/8-16 Center Locknut Price: Call Us |
| 33 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 34 |
04004-02 |
Support, Belt Cover Price: Call Us |
| 35 |
04017-36 |
Cpscrw, 1/2-13 x 1" Ser.Flg. HH Price: Call Us |
| 36 |
04112-05 |
Nut, 1/2-13 Spiralock Price: Call Us |
| 37 |
43277 |
Spacer, J-Hook Price: Call Us |
| 38 |
04041-12 |
Washer, 3/8 x 1-1/2 x 16 GA Price: Call Us |
| 39 |
04021-09 |
Elastic Stop Nut, 3/8-16 Price: Call Us |
| 40 |
45423 |
Idler Pivot Price: Call Us |
| 41 |
46748 |
Idler Arm Assy. (Inc. 42 & 54) Price: Call Us |
| 42 |
48100-02 |
Bronze Bearing Price: Call Us |
| 43 |
04050-05 |
Retaining Ring, 1-1/8" Ext. "E" Price: Call Us |
| 44 |
44078 |
J-Hook Price: Call Us |
| 45 |
483215 |
Pulley, 5" Dia. Idler This part replaces 482416. Price: Call Us |
| 46 |
481024 |
Seal, Cutter Spindle Price: Call Us |
| 47 |
43297 |
Spindle Bushing Price: Call Us |
| 48 |
43296 |
Spacer, Inside Price: Call Us |
| 49 |
481035 |
Nut,1.06-18 Price: Call Us |
| 50 |
48677 |
Relief Fitting, Cutter Spindle Price: Call Us |
| 51 |
481025 |
Seal, Cutter Spindle Price: Call Us |
| 52 |
48098 |
Spindle Shield Price: Call Us |
| 53 |
04029-04 |
Wing Nut, 3/8-16 (Small) RH side Price: Call Us |
| 54 |
48114-04 |
Grease Fitting Price: Call Us |
| 55 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 56 |
04041-07 |
Flatwasher, 3/8" (.391 x .938 x .105) Price: Call Us |
| 57 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
