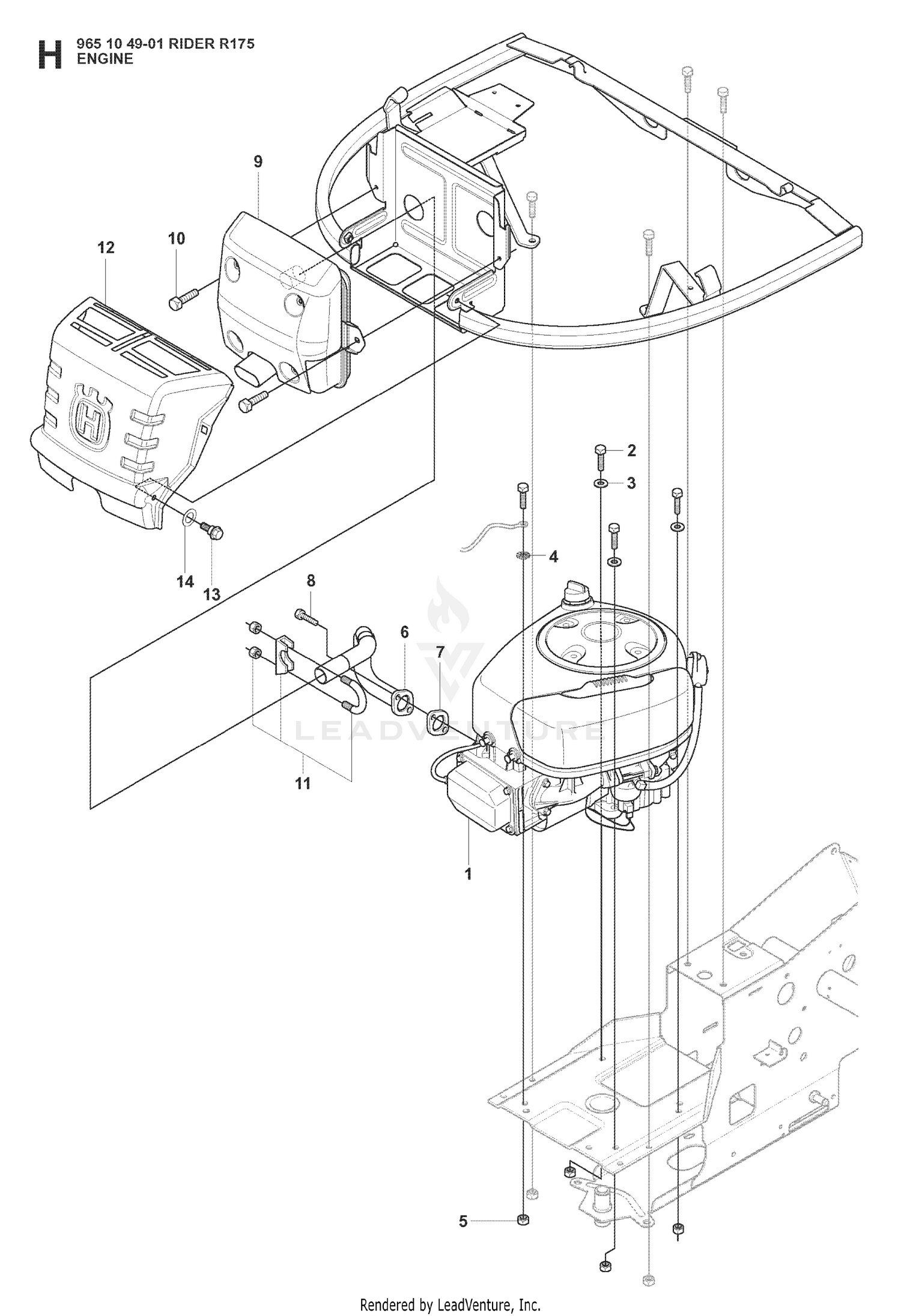

ENGINE
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544833101 | ENGINE Price: $1,699.99 |
| 2 | 112-9213 | PLUG Price: $3.72 |
| 2 | 725245751 | SCREW Price: $4.99 |
| 3 | 117-0227 | VALVE-RELIEF, PROPORTIONAL Price: $551.17 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 4 | 110-6344 | COIL-12V, DC Price: $141.08 |
| 4 | 735216400 | Washer Price: $1.29 |
| 5 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 6 | 125-4327 | VALVE-DIRECTIONAL, PILOT Price: $367.15 |
| 6 | 535500601 | EXHAUST PIPE ASSY Price: $32.99 |
| 7 | 114-5512 | VALVE-RELIEF, 600 PSI Price: $401.29 |
| 7 | 506914501 | FLANGE Price: $4.99 |
| 8 | 105-9153 | ELEMENT-LOGIC, VENTED Price: $145.70 |
| 9 | 112-9212 | PLUG Price: $2.48 |
| 9 | 544335701 | MUFFLER ASSY Price: $159.99 |
| 10 | 117-8315 | ORIFICE (.025 INCH) Price: $12.29 |
| 10 | 725236461 | SCREW Price: $2.99 |
| 11 | 501152201 | CLAMP ASSY EXHAUST This part replaces 506668401. Price: $2.99 |
| 12 | 544248301 | HEAT PROTECTOR Price: $119.99 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 14 | 506839401 | SPRINGWASHER Price: $3.99 |
