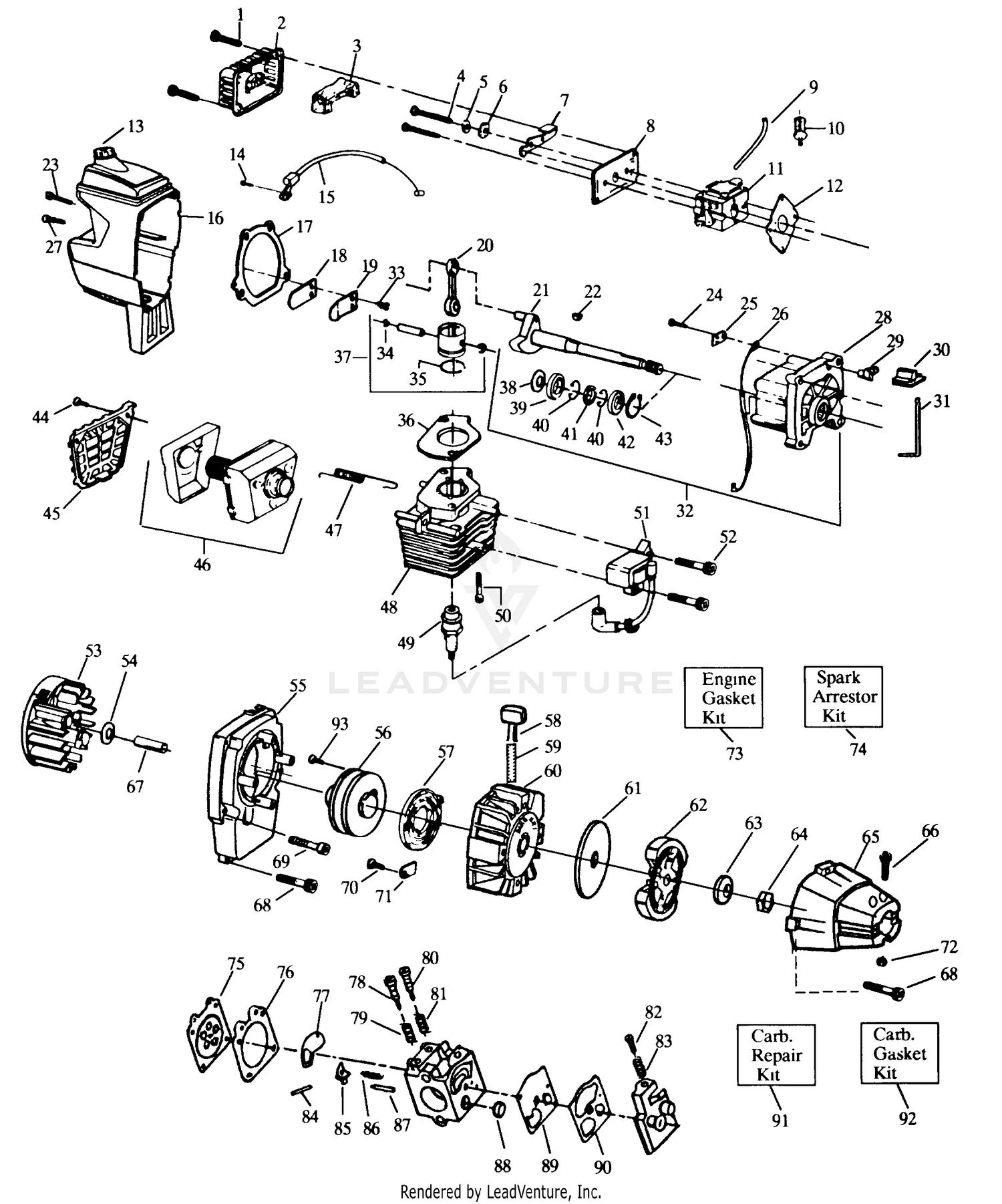

| Ref | Part Number | Description |
|---|
| 1 |
530015773 |
Screw Price: $1.99 |
| 2 |
530027529 |
Air Filter Cover Price: $3.42 |
| 3 |
530027530 |
Air Filter Price: $1.99 |
| 4 |
530015849 |
Screw Price: $1.99 |
| 5 |
530015852 |
Spacer-Choke This part replaces 530027528. Price: $1.99 |
| 6 |
530015254 |
Wave Washer Price: $1.99 |
| 7 |
530027526 |
Choke Shutter Price: $1.99 |
| 8 |
530027527 |
Air Filter Plate Price: $2.99 |
| 9 |
530069247 |
Fuel Line Kit Price: $3.99 |
| 10 |
530095646 |
Assy-Fuel Pickup This part replaces 530010897. Price: $2.99 |
| 11 |
545081825 |
KIT CARBURETOR ASSY This part replaces 530035259. Price: $49.99 |
| 13 |
530014347 |
Assy-Fuel Cap This part replaces 530010729. Price: $4.99 |
| 14 |
530015775 |
Screw Price: $1.99 |
| 15 |
530037497 |
Throttle Cable Ass'y., Model 114 This part replaces 530027549. Price: $3.76 |
| 16 |
530027995 |
Shroud & Tank Ass'y. Price: $3.33 |
| 18 |
530027593 |
Reed Price: $1.99 |
| 19 |
530027594 |
Reed Stop Price: $1.99 |
| 20 |
530010960 |
Connecting Rod Ass'y. (Inc. Bearings) Price: $14.99 |
| 21 |
530010934 |
Crankshaft Ass'y. Price: $24.99 |
| 22 |
530015126 |
Flywheel Key Price: $1.99 |
| 23 |
530015772 |
Screw Price: $1.99 |
| 24 |
530015780 |
Screw Price: $1.99 |
| 25 |
530027546 |
Switch Insulator Price: $2.99 |
| 26 |
530027547 |
Lead Wire Price: $1.99 |
| 27 |
530015771 |
Screw Price: $1.99 |
| 28 |
530014016 |
Crankcase Ass'y. (Inc. #39-42) Price: Call Us |
| 29 |
530027545 |
Switch Ramp Price: $1.99 |
| 30 |
530038309 |
Switch Button This part replaces 530027958. Price: $1.99 |
| 31 |
530027959 |
Switch Spring Price: $1.99 |
| 32 |
530071705 |
Assy-C'case/C'shaft This part replaces 530014015. Price: $29.99 |
| 33 |
530015241 |
Screw Price: $1.99 |
| 34 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 35 |
530025875 |
Piston Ring Price: $4.99 |
| 37 |
530069277 |
Piston Kit (Inc. #34,35 & pin) Price: $44.99 |
| 38 |
530015788 |
Spacer Price: $0.99 |
| 39 |
530032103 |
Inner Bearing Price: Call Us |
| 40 |
530015787 |
Retaining Ring Price: $1.99 |
| 41 |
530019158 |
Crankshaft Seal Price: $2.99 |
| 42 |
530032102 |
Outer Bearing Price: $8.99 |
| 43 |
530015789 |
Crankshaft Retaining Ring Price: $2.99 |
| 44 |
530015717 |
Screw Price: $1.99 |
| 45 |
530027781 |
Muffler Guard Price: $1.99 |
| 46 |
530069310 |
Muffler Kit This part replaces 530069257. Price: $9.99 |
| 47 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 48 |
530071581 |
Kit-Cylinder This part replaces 530012238. Price: $59.99 |
| 49 |
530030077 |
Spark Plug Price: $2.27 |
| 50 |
530015239 |
Screw Price: $1.99 |
| 51 |
530039134 |
Ignition Module Kit Price: $44.99 |
| 52 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 53 |
530039189 |
Flywheel Ass'y This part replaces 530039136. Price: $22.99 |
| 54 |
530016030 |
Washer This part replaces 530347987. Price: $1.99 |
| 55 |
530027946 |
Fan Housing Price: $11.99 |
| 56 |
530071387 |
Kit-Starter Pulley This part replaces 530069291. Price: $6.99 |
| 57 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 58 |
530027569 |
Starter Handle Price: $1.99 |
| 59 |
530069232 |
Rope Kit Price: $3.99 |
| 60 |
530014022 |
Pulley Housing Ass'y. Price: $5.99 |
| 61 |
530094189 |
Clutch Washer Price: $2.99 |
| 62 |
530069254 |
Clutch Ass'y. Kit Price: $8.99 |
| 63 |
530015796 |
Washer Price: $1.99 |
| 64 |
530001733 |
Nut Price: $2.99 |
| 65 |
530014023 |
Clutch Housing Price: $3.33 |
| 66 |
530015767 |
Screw Price: $1.99 |
| 67 |
530027511 |
Spacer Price: $4.99 |
| 68 |
530015770 |
Screw Price: Call Us |
| 69 |
530015769 |
Screw Price: $1.99 |
| 70 |
530015496 |
Screw Price: $1.99 |
| 71 |
530027523 |
Pulley Retainer Price: $2.99 |
| 72 |
530015768 |
Locknut Price: $1.99 |
| 73 |
530069276 |
Engine Gasket Kit (Inc.12,17,36) Price: $4.99 |
| 74 |
952701612 |
Spark Arrestor Kit Price: Call Us |
| 75 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 76 |
530035151 |
Metering Diaphragm Gasket Price: $1.99 |
| 77 |
501781301 |
GASKET This part replaces 530035147. Price: $0.45 |
| 78 |
501782201 |
H-NEEDLE This part replaces 530035142. Price: $6.30 |
| 79 |
530035036 |
Hi Speed Needle Spring Price: Call Us |
| 80 |
530035141 |
Idle Needle Price: $2.99 |
| 81 |
530035023 |
Idle Needle Spring Price: $0.99 |
| 82 |
530035203 |
Idle Speed Screw Price: $5.99 |
| 83 |
501667801 |
Spring This part replaces 530035208. Price: $1.99 |
| 89 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 90 |
504130906 |
GASKET This part replaces 530035164. Price: $1.99 |
| 91 |
530035260 |
Carb. Kwik Repair Kit Price: $14.99 |
| 92 |
530069844 |
Gasket Diaphragm Kit This part replaces 530035186. Price: $11.99 |
| 93 |
530016080 |
SCREW This part replaces 530015823. Price: $1.99 |
