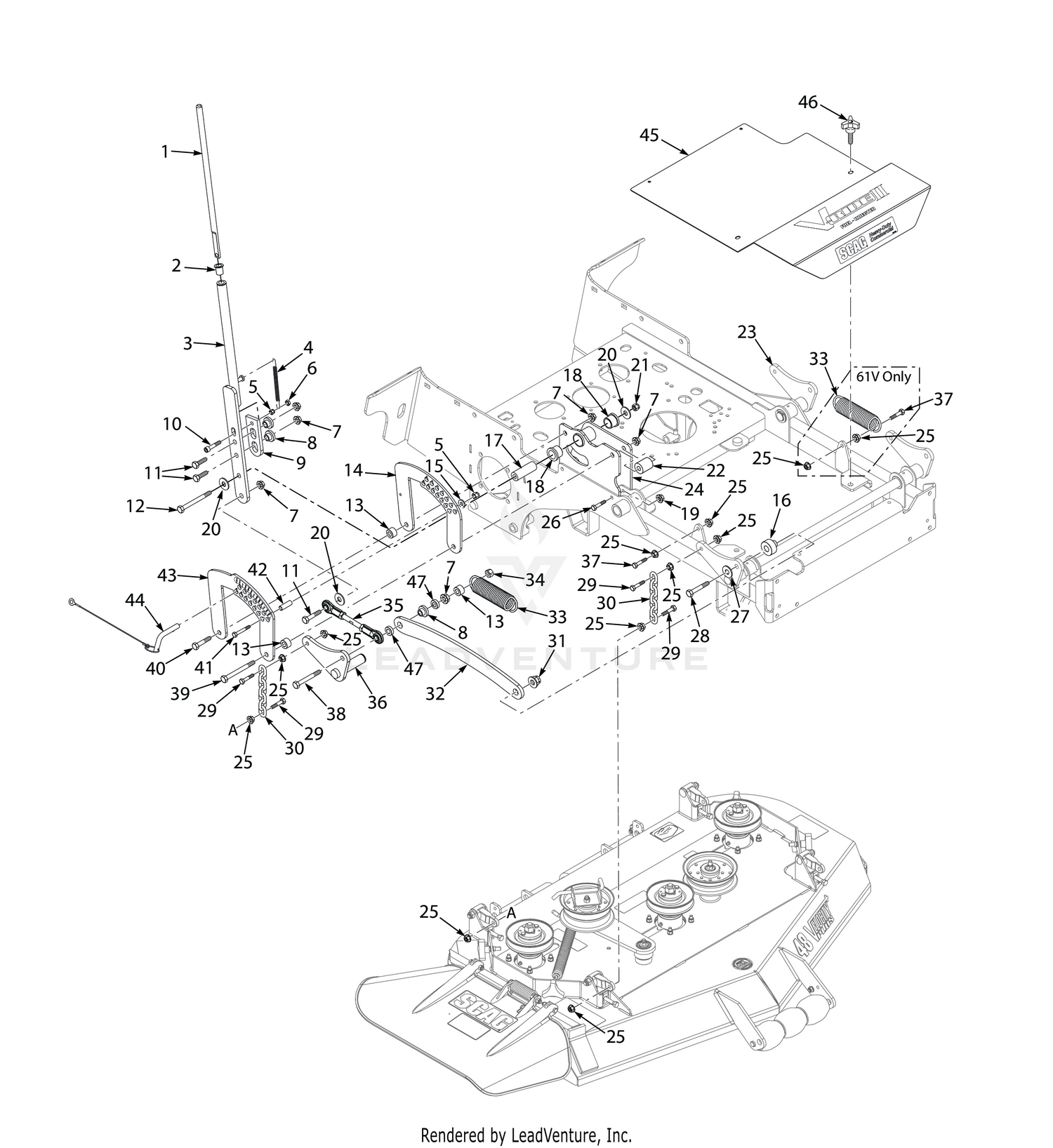

| Ref | Part Number | Description |
|---|
| 1 |
43747 |
Actuator Rod, Deck Latch Price: Call Us |
| 2 |
483453-14 |
Bearing, .625 ID Plastic Price: Call Us |
| 3 |
452811 |
Handle Weldment, Deck Latch Price: Call Us |
| 4 |
483600 |
Spring, Deck Latch Price: Call Us |
| 5 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 6 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 7 |
04019-06 |
Nut, Hex Serrated Flange 1/2-13 Price: Call Us |
| 8 |
431087 |
Bushing, Deck Lift Price: Call Us |
| 9 |
424652 |
Deck Latch, Outer Price: Call Us |
| 10 |
04015-41 |
Capscrew, Socket Head 3/8-16 x 1-3/4" Price: Call Us |
| 11 |
04001-183 |
Bolt, Hex Head 1/2-13 x 1-3/4" Price: Call Us |
| 12 |
04001-194 |
Bolt, Hex Head 1/2-13 x 4-1/4" Price: Call Us |
| 13 |
43806 |
Spacer Price: Call Us |
| 14 |
427219 |
Bracket, Deck Height Price: Call Us |
| 15 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 16 |
431088 |
Bushing, Deck Lift Price: Call Us |
| 17 |
43872 |
Sleeve, Brake Pivot Price: Call Us |
| 18 |
483453-03 |
Bearing, Plastic Price: Call Us |
| 19 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 20 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 21 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 22 |
431054 |
Spacer, Decklift Pivot Price: Call Us |
| 23 |
452808 |
Arm Weldment, LH Price: Call Us |
| 25 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 26 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 27 |
04043-08 |
Washer, Flat, 1/2-.562 x 1.375 x .109 HD Price: Call Us |
| 28 |
04001-52 |
Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower) Price: Call Us |
| 29 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 30 |
462940 |
CHAIN ASSY Price: Call Us |
| 31 |
04117-04 |
Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52) Price: Call Us |
| 32 |
427221 |
Link, Deck Lift Price: Call Us |
| 33 |
483374 |
Spring, Deck Lift Price: Call Us |
| 34 |
04021-19 |
Locknut, Hex 1/2-13 Center Lock Price: Call Us |
| 35 |
486821 |
Link, Deck Lift Price: Call Us |
| 36 |
452809 |
Arm Weldment, RH Price: Call Us |
| 37 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 38 |
04001-145 |
Bolt, Hex Head 1/2-13 x 3-1/2" Price: Call Us |
| 39 |
04001-87 |
Bolt, Hex Head 1/2-13 x 4" (lower) Price: Call Us |
| 40 |
04001-72 |
Hex Head Bolt, 1/2-13 x 2" Price: Call Us |
| 41 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 42 |
43668 |
Bushing, .502 O.D. Price: Call Us |
| 43 |
427288 |
Bracket, Deck Height - Outer Price: Call Us |
| 44 |
485857 |
Pin Assy. w/Lanyard Price: Call Us |
| 45 |
463315 |
Belt Cover w/Decals Price: Call Us |
| 46 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
