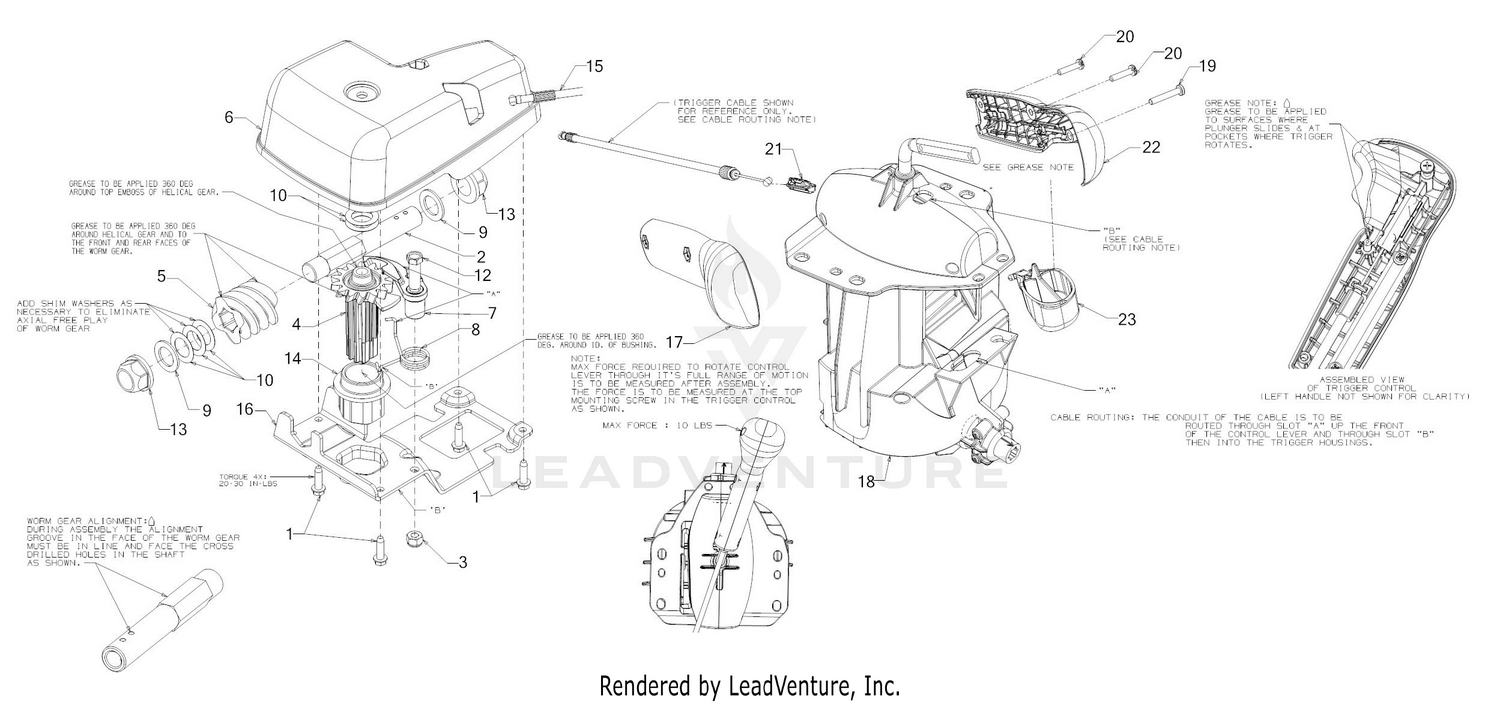

Chute Control
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-04373A | SCREW #12-16 .75 Price: $3.86 |
| 2 | 711-05186 | WORM DRIVE SHAFT .625 Price: $9.22 |
| 3 | 712-0896 | NUT Price: $4.08 |
| 4 | 717-04667B | HELICAL GEAR-14T Price: $9.09 |
| 5 | 717-04672A | CHUTE GEARBOX WORM GEAR This part replaces 717-04672. Price: $8.03 |
| 6 | 731-06906 | CHUTE GEARBOX COVER Price: $16.96 |
| 7 | 731-06943A | CHUTE LOCK PAWL Price: $4.06 |
| 8 | 732-04638D | TORSION SPRING Price: $2.94 |
| 9 | 736-0290 | FLAT WASHER Price: $6.32 |
| 10 | 736-04337 | SHIM WASHER .632X1.000X.010:HD Price: $3.37 |
| 12 | 738-04391 | SHOULDER BOLT Price: $5.15 |
| 13 | 941-0225 | FLANGE BEARING Price: $6.55 |
| 14 | 741-04388A | HEX FLANGE BEARING Price: $6.21 |
| 15 | 946-04619B | CHUTE LOCK CABLE Price: $30.26 |
| 16 | 790-00342C-0637 | CHUTE ROTATION BRACKET Price: $24.60 |
| 18 | 984-04348 | CHUTE CONTROL SHAFT ASSEMBLY Price: $115.02 |
| 19 | 710-04353 | SCREW #8 x 1.0 Price: $5.78 |
| 20 | 710-04879 | SCREW #8-32 x .750 Price: $2.95 |
| 21 | 731-04893A | CABLE PLUNGER SLIDE Price: $5.51 |
