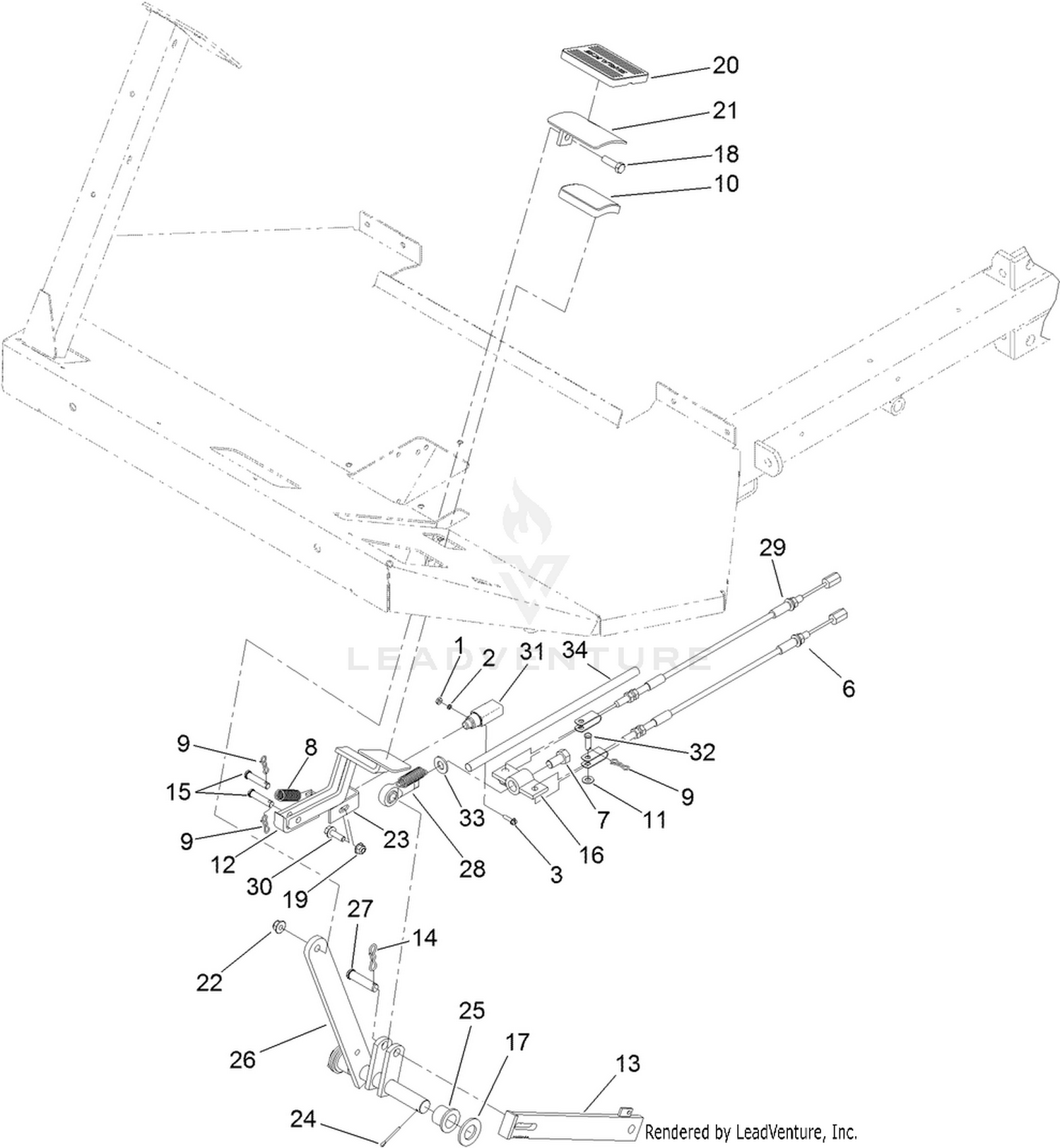

| Ref | Part Number | Description |
|---|
| 1 |
3217-26 |
NUT-HEX Price: $0.25 |
| 2 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 3 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 6 |
119-9364 |
CABLE-BRAKE, LH Price: $169.10 |
| 7 |
3213-1 |
SCREW-HH Price: $1.42 |
| 8 |
92-0417 |
SPRING-EXT Price: $15.08 |
| 9 |
119-1415 |
PIN-COTTER, LOCKING Price: $0.22 |
| 10 |
42719 |
PAD-PEDAL Price: $25.85 |
| 11 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
93-6599-03 |
CATCH Price: $185.89 |
| 13 |
93-6598-0P |
BRAKE STRAP ASM. - EMERGENCY, WELDED This part replaces 93-6598-03. Price: $197.74 |
| 14 |
119-1416 |
PIN-COTTER, LOCKING Price: $0.64 |
| 15 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 16 |
93-6595 |
EQUALIZER-BRAKE Price: $79.24 |
| 17 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 18 |
323-7 |
SCREW-HH Price: $0.65 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 21 |
100-8422-0P |
BRACKET-PEDAL, WELDED This part replaces 100-8422-03. Price: $63.76 |
| 22 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 23 |
93-6592-03 |
BRACKET Price: $18.07 |
| 24 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 25 |
94-7164 |
BEARING Price: $7.53 |
| 26 |
93-6589 |
SHAFT-BRAKE Price: $247.70 |
| 27 |
42195 |
PIN-CLEVIS Price: $6.11 |
| 28 |
522087 |
ROD-END Price: $43.45 |
| 29 |
119-9365 |
CABLE-BRAKE, RH Price: $169.10 |
| 30 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 31 |
107-0340 |
KIT-PEDAL SWITCH This part replaces 99-7407. Price: $57.82 |
| 32 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 33 |
3256-26 |
WASHER-FLAT Price: $0.39 |
