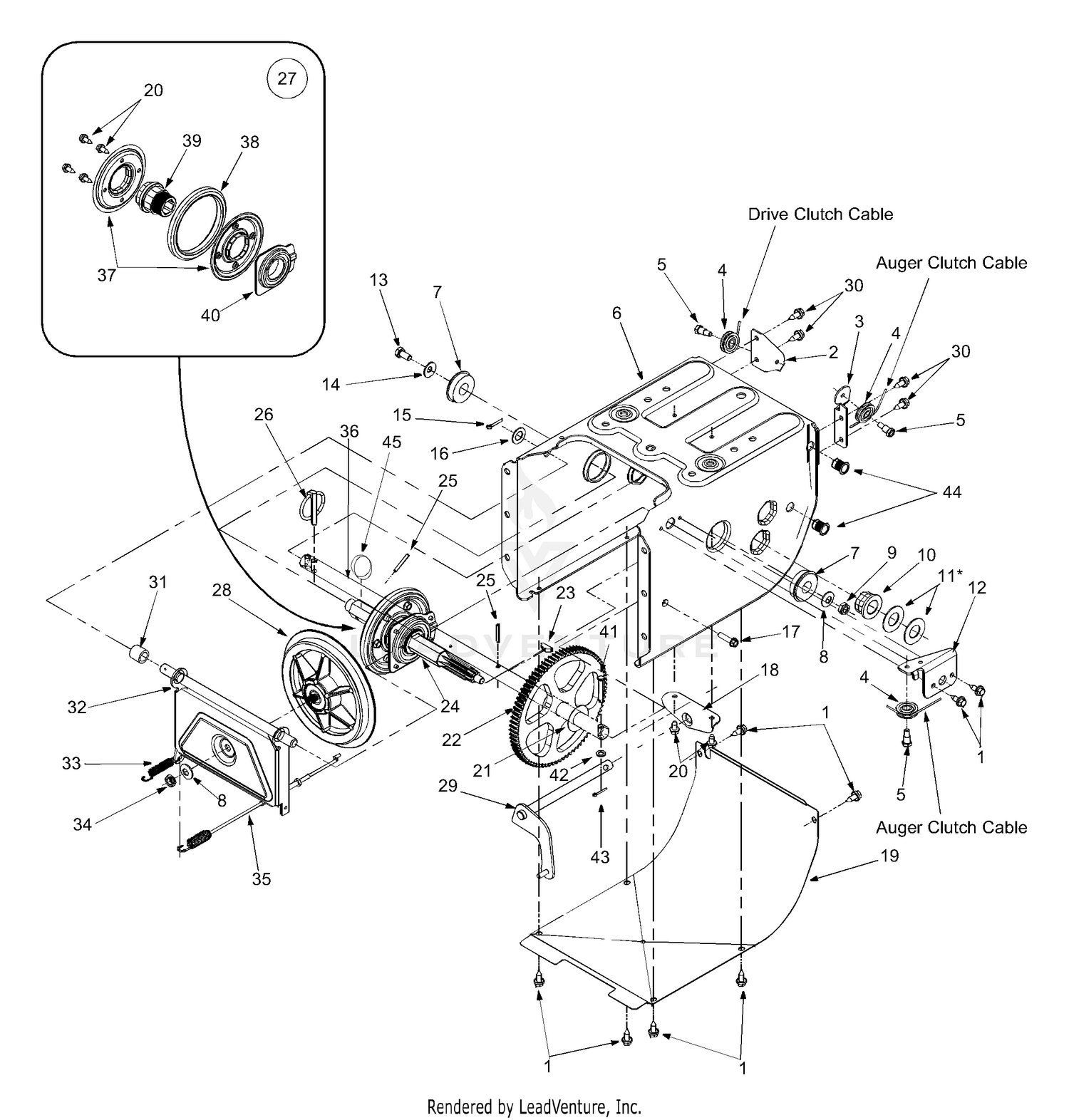

| Ref | Part Number | Description |
|---|
| 1 |
710-1652 |
TT Screw, 1/4-20 x .625 Price: $3.86 |
| 2 |
784-5688 |
DRIVE GUIDE BRACKET Not Available Price: |
| 3 |
784-5687A |
AUGER GUIDE BRACKET Not Available Price: |
| 4 |
756-0625 |
Cable Roller Price: $8.52 |
| 5 |
738-0924A |
Shoulder Screw, 1/4-28, .340 x .355 This part replaces 738-0924. Price: $5.94 |
| 6 |
784-5630B |
FRAME HOUSING Not Available Price: |
| 7 |
941-0563 |
Ball Bearing, 17 x 40 x 12 This part replaces 741-0563. Price: $33.84 |
| 8 |
736-0105 |
Bell Washer Price: $3.96 |
| 9 |
712-0116 |
Lock Jam Nut Price: $3.95 |
| 10 |
941-0598 |
Hex Flange Bearing, .752 This part replaces 741-0598. Price: $11.91 |
| 12 |
784-5689A-0637 |
GUIDE BRACKET Not Available This part replaces 784-5689A. Price: |
| 13 |
710-0538A |
Lock Hex Screw Price: Call Us |
| 14 |
736-0242 |
Bell Washer .340 ID x .872 OD Price: $3.75 |
| 15 |
714-0474 |
Cotter Pin Price: $4.08 |
| 16 |
736-0160 |
Flat Washer .536 ID x .930 OD Price: $3.90 |
| 17 |
710-0809 |
TT Screw, 1/4-20 x 1.25 Price: $6.37 |
| 18 |
784-5590 |
Frame Shift Bracket Price: $10.65 |
| 19 |
784-5638A |
FRAME COVER Not Available This part replaces 784-5638. Price: |
| 20 |
710-1652 |
Hex Washer TT Screw 1/4-20 Price: $3.86 |
| 21 |
736-0351 |
Flat Washer .760 ID x .50 OD Price: $3.93 |
| 22 |
717-1445 |
Gear Price: $94.74 |
| 23 |
714-0126 |
Key Price: $4.05 |
| 25 |
915-0249 |
Roll Pin This part replaces 715-0249. Price: $5.94 |
| 26 |
714-0143A |
Klik Pin, 25 DIA x 156 This part replaces 714-0143. Price: $5.67 |
| 27 |
984-0042C |
Friction Wheel Hub This part replaces 684-0042C. Price: $121.65 |
| 28 |
956-0012A |
Friction Wheel Disc Assembly Not Available This part replaces 656-0012A. Price: |
| 29 |
684-04243 |
SHIFT ROD ASSEMBLY Not Available This part replaces 684-0013B. Price: |
| 30 |
710-0599 |
TT Screw, 1/4-20 x .5 Price: $3.86 |
| 31 |
748-0190 |
Spacer Price: $5.48 |
| 32 |
984-0021-0637 |
BRACKET ASSEMBLY Not Available This part replaces 684-0021. Price: |
| 33 |
932-0264 |
Extension Spring This part replaces 732-0264. Price: $4.40 |
| 34 |
712-0711 |
Jam Nut 3/8-24 Price: $3.90 |
| 35 |
946-0898 |
Drive Clutch Cable This part replaces 746-0898B. Price: $24.46 |
| 36 |
738-0869 |
Axle 13" Wheels Price: $122.79 |
| 37 |
790-00010 |
Friction Plate Not Available Price: |
| 38 |
935-0243B |
Friction Wheel Rubber This part replaces 735-0243B. Price: $14.83 |
| 39 |
984-0042C |
Friction Wheel Hub This part replaces 718-0301A. Price: $121.65 |
| 40 |
618-0063A |
Friction Wheel Bearing Price: $80.89 |
| 41 |
711-1364 |
Clevis Pin, 1/4 x 1.3725 Price: $7.44 |
| 42 |
736-0142 |
Flat Washer, .281 x .5 x .063 Price: $3.95 |
| 43 |
714-0507 |
Cotter Pin, .75 Price: $3.93 |
| 44 |
712-0703A |
INSERT NUT 5/16 Not Available Price: |
